Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCUVE966412-301FIXED IND 300NH 49A 0.175MOHM |
2,011 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1812PS-823KRCFIXED IND 82UH 650MA 1.25OHM SM |
2,603 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 82 µH | ±10% | 650 mA | 280mA | Shielded | 1.25Ohm Max | 55 @ 1MHz | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
B82477P2152M000FIXED IND 1.5UH 8.7A 10 MOHM SMD |
4,405 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 8.7 A | 8.7A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82477P2684M000FIXED IND 680UH 620MA 1.05OHM SM |
2,993 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 620 mA | 480mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
AX97-10471FIXED IND 470UH 120MA 11.55 OHM |
4,752 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 120 mA | - | Unshielded | 11.55Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
AX97-104R7FIXED IND 4.7UH 1.5A 120MOHM SMD |
1,780 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
|
|
SMRF1812-151JMOLDED UNSHIELDED INDUCTOR |
1,646 |
|
Datasheet |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±5% | 578 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|
|
19F563JMOLDED UNSHIELDED RF COILS AXL |
1,890 |
|
Datasheet |
19F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±5% | 172 mA | - | Unshielded | 9.4Ohm Max | - | 3.6MHz | - | -55°C ~ 125°C | - | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
CDEP1810NP-8R2MC-333FIXED IND 8.2UH 19.5A 2.42 MOHM |
3,510 |
|
Datasheet |
CDEP1810 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 19.5 A | 10.8A | Shielded | 2.42mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.740" W (22.00mm x 18.80mm) | 0.433" (11.00mm) |
|
|
HTTI-82-4.8TOROIDAL IND HI TEMP 82UH 4.8ADC |
2,884 |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 82 µH | ±15% | 4.8 A | - | Shielded | 49mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
PA1513.211NLTFIXED IND 210NH 45A 0.53MOHM SMD |
2,890 |
|
Datasheet |
PA1513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 210 nH | ±20% | 45 A | 71A | Shielded | 0.53mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
PA1513.321NLTFIXED IND 320NH 41A 0.53MOHM SMD |
4,797 |
|
Datasheet |
PA1513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±20% | 41 A | 50A | Shielded | 0.53mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|

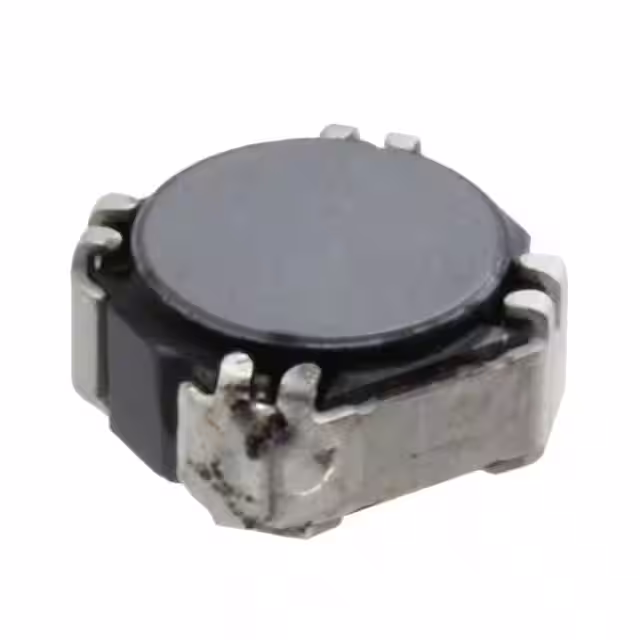

CDRH8D38/ANP-150MCFIXED IND 15UH 1.41A 70 MOHM SMD |
2,316 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.41 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-220MCFIXED IND 22UH 1.24A 100MOHM SMD |
4,191 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.24 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

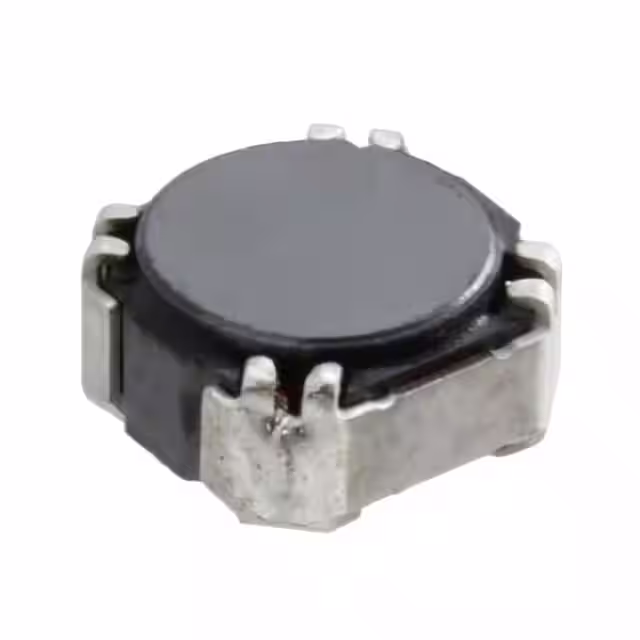

CDRH8D38/ANP-470MCFIXED IND 47UH 780MA 225MOHM SMD |
1,005 |
|
Datasheet |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 780 mA | - | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
30800ACFIXED IND 80NH 37A 0.35 MOHM SMD |
3,455 |
|
Datasheet |
3000A | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 80 nH | ±20% | 37 A | 47A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
30101ACFIXED IND 97NH 36A 0.35 MOHM SMD |
1,258 |
|
Datasheet |
3000A | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 97 nH | ±20% | 36 A | 41A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
30151ACFIXED IND 145NH 29A 0.35MOHM SMD |
2,925 |
|
Datasheet |
3000A | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 145 nH | ±20% | 29 A | 29A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
30201ACFIXED IND 191NH 22A 0.35MOHM SMD |
1,852 |
|
Datasheet |
3000A | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 191 nH | ±20% | 22 A | 22A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 130°C | 1 MHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
744383560033HTFIXED IND 330NH 9.9A 7.5MOHM SMD |
3,488 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 330 nH | ±30% | 9.9 A | 11A | Shielded | 7.5mOhm Max | - | 98MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
