Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0926.282NLTFIXED IND 2.8UH 19A 2.9 MOHM SMD |
4,425 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Unshielded | 2.9mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.461NLTFIXED IND 460NH 44A 0.55MOHM SMD |
4,160 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 460 nH | ±20% | 44 A | 50A | Unshielded | 0.55mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.562NLTFIXED IND 5.6UH 14A 4.1 MOHM SMD |
2,524 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 14 A | 14A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.722NLTFIXED IND 7.2UH 12A 7 MOHM SMD |
3,140 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.872NLTFIXED IND 8.7UH 11A 8 MOHM SMD |
3,128 |
|
Datasheet |
PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.7 µH | ±20% | 11 A | 11.5A | Unshielded | 8mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
1225AS-H-3R3M=P2FIXED IND 3.3UH 1.5A 96 MOHM SMD |
1,221 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
|
1225AS-H-6R8M=P2FIXED IND 6.8UH 1.1A 204MOHM SMD |
3,720 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 720mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

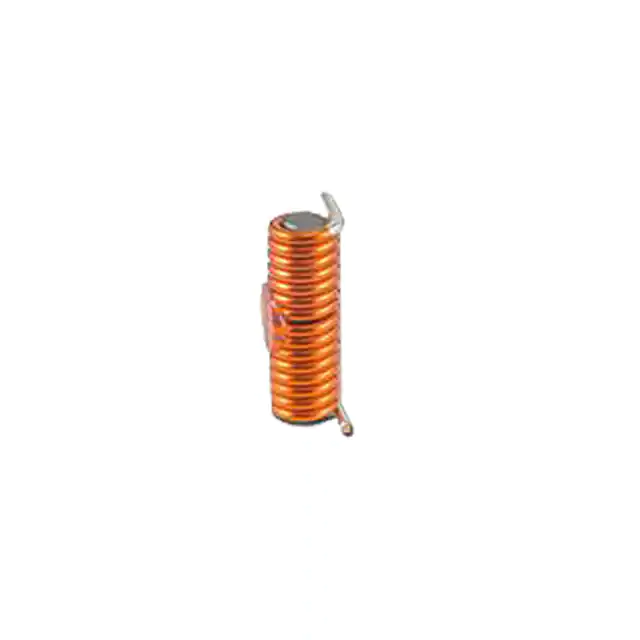

110001270FIXED IND 2.72UH 10A 6.4MOHM SMD |
1,941 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.72 µH | ±20% | 10 A | 18A | Unshielded | 6.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" Dia x 0.591" L (6.50mm x 15.00mm) | - |
|

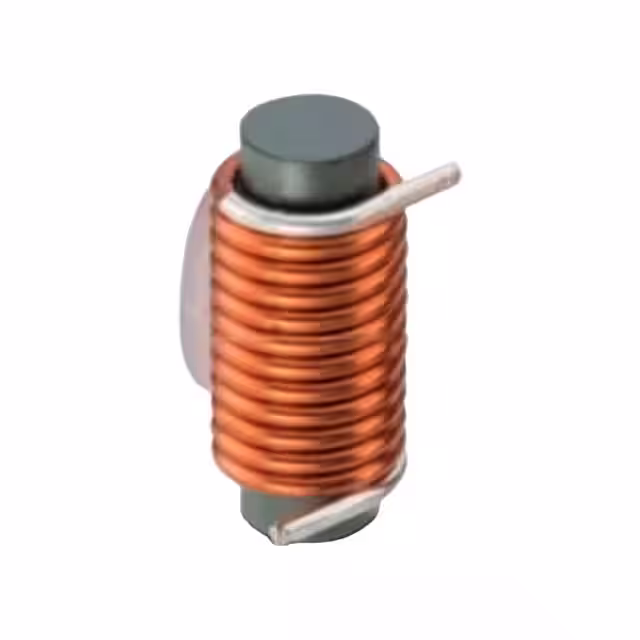

110001450FIXED IND 4.45UH 12A 3.8 MOHM |
1,543 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.45 µH | ±10% | 12 A | 45A | Unshielded | 3.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.453" Dia x 0.984" L (11.50mm x 25.00mm) | - |
|
DRA127-R47-RFIXED IND 470NH 22.5A 1.2MOHM SM |
4,892 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 22.5 A | 56A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
FP1010R3-R270-RIND FLAT PAC 270NH 63A 2 PADS |
2,832 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 78 A | 30A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R330-RIND FLAT PAC 330NH 63A 2 PADS |
2,486 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 78 A | 20A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R300-RIND FLAT PAC 300NH 63A 2 PADS |
2,936 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±10% | 78 A | 27A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
UP2-1R0-RFIXED IND 1UH 9A 8.1 MOHM SMD |
2,219 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 9 A | 9.9A | Unshielded | 8.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
DEP1016NP-5R0PBINDUCTOR |
1,288 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 5 µH | ±25% | 14.1 A | 18.2A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-220PBINDUCTOR |
2,784 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 22 µH | ±25% | 8.5 A | 7.2A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-150PBINDUCTOR |
1,056 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 15 µH | ±25% | 11.5 A | 8.7A | Shielded | 9.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-100PBINDUCTOR |
3,931 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 10 µH | ±25% | 11.5 A | 13.4A | Shielded | 9.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-180PBINDUCTOR |
3,484 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 18 µH | ±25% | 9.8 A | 7.9A | Shielded | 10.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-270PBINDUCTOR |
4,629 |
|
Datasheet |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 27 µH | ±25% | 7.5 A | 6.6A | Shielded | 13.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
