Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRF0603-068KMIL CERAMIC CHIP INDUCTOR |
4,010 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 68 nH | ±10% | 440 mA | - | Unshielded | 360mOhm Max | 37 @ 200MHz | 1.7GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-100KMIL CERAMIC CHIP INDUCTOR |
4,775 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 100 nH | ±10% | 305 mA | - | Unshielded | 750mOhm Max | 34 @ 150MHz | 1.4GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-027KMIL CERAMIC CHIP INDUCTOR |
2,846 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 27 nH | ±10% | 565 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-0018KMIL CERAMIC CHIP INDUCTOR |
2,904 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 1.8 nH | ±10% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-082KMIL CERAMIC CHIP INDUCTOR |
4,983 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 82 nH | ±10% | 360 mA | - | Unshielded | 540mOhm Max | 34 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-018KMIL CERAMIC CHIP INDUCTOR |
3,204 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 18 nH | ±10% | 645 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 3.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-022KMIL CERAMIC CHIP INDUCTOR |
4,072 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 22 nH | ±10% | 610 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-220KMIL CERAMIC CHIP INDUCTOR |
1,748 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 220 nH | ±10% | 200 mA | - | Unshielded | 1.7Ohm Max | 25 @ 150MHz | 700MHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-0087KMIL CERAMIC CHIP INDUCTOR |
3,522 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 8.7 nH | ±10% | 705 mA | - | Unshielded | 140mOhm Max | 30 @ 250MHz | 5.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-0033KMIL CERAMIC CHIP INDUCTOR |
3,370 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.3 nH | ±10% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-0039KMIL CERAMIC CHIP INDUCTOR |
1,285 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±10% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
|
MLRF0603-056KMIL CERAMIC CHIP INDUCTOR |
3,314 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 56 nH | ±10% | 475 mA | - | Unshielded | 310mOhm Max | 38 @ 200MHz | 1.9GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
110001200FIXED IND 1.96UH 15A 2.4 MOHM |
3,714 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.366" Dia x 0.709" L (9.30mm x 18.00mm) | - |
|

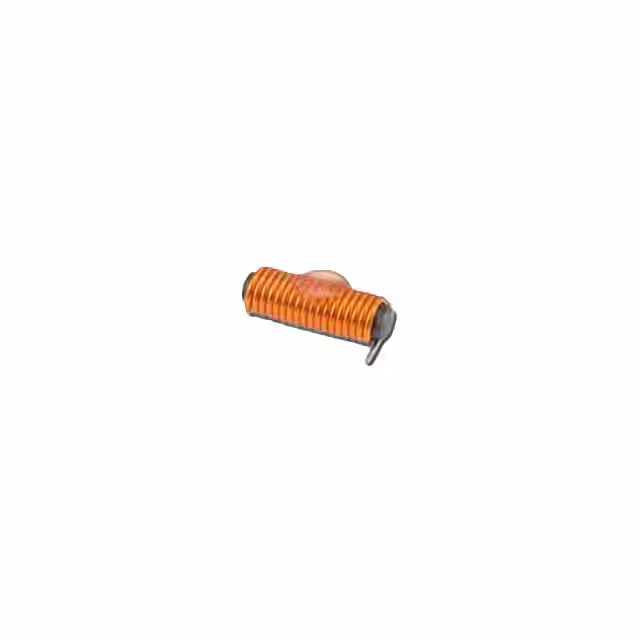

110001101FIXED IND 10.4UH 2.5A 33MOHM SMD |
3,630 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10.4 µH | ±20% | 2.5 A | 7.5A | Unshielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.213" Dia x 0.709" L (5.40mm x 18.00mm) | - |
|
110001100FIXED IND 1UH 22A 2 MOHM SMD |
2,006 |
|
Datasheet |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 22 A | 29A | Unshielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.280" Dia x 0.591" L (7.10mm x 15.00mm) | - |
|
ELL-CTV4R7NFIXED IND 4.7UH 5.2A 9.9MOHM SMD |
2,143 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.2 A | - | Shielded | 9.9mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV6R8NFIXED IND 6.8UH 4.5A 14 MOHM SMD |
3,698 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.5 A | - | Shielded | 14mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV8R2NFIXED IND 8.2UH 4.4A 15 MOHM SMD |
3,060 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 4.4 A | - | Shielded | 15mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV100MFIXED IND 10UH 3.9A 17 MOHM SMD |
3,208 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | - | Shielded | 17mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV120MFIXED IND 12UH 3.7A 22 MOHM SMD |
1,861 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.7 A | - | Shielded | 22mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
