Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR1616NP-820MINDUCTOR |
3,325 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 3.1 A | 2.9A | Shielded | 64.5mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-181KINDUCTOR |
4,409 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2 A | 2A | Shielded | 135mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-391KINDUCTOR |
3,069 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.3 A | 1.3A | Shielded | 255mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-4R7MINDUCTOR |
1,120 |
|
Datasheet |
RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.2 A | 12.6A | Shielded | 6.7mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|
|
RCR1616NP-390MINDUCTOR |
3,391 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 4.5 A | 4.6A | Shielded | 33mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-470MINDUCTOR |
4,595 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 4.1 A | 4.2A | Shielded | 37mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-821KINDUCTOR |
3,806 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 990 mA | 960mA | Shielded | 575mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-680MINDUCTOR |
4,243 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3.4 A | 3.3A | Shielded | 56mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-102KINDUCTOR |
4,798 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 930 mA | 850mA | Shielded | 665mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-561KINDUCTOR |
2,260 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.1 A | 1.1A | Shielded | 380mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-560MINDUCTOR |
3,906 |
|
Datasheet |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 3.8 A | 3.8A | Shielded | 45mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-6R8MINDUCTOR |
3,754 |
|
Datasheet |
RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8 A | 9.8A | Shielded | 9.35mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|

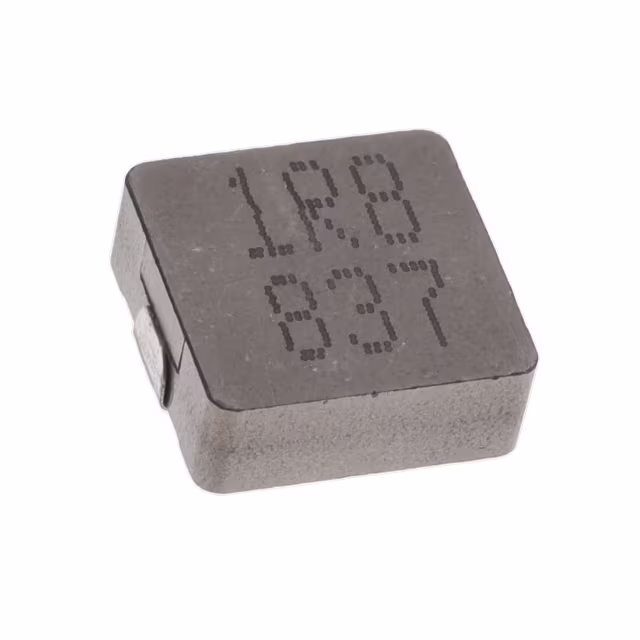

125CDMCCDS-1R8MCFIXED IND 1.8UH 21A 3.5MOHM SMD |
2,674 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.8 µH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|

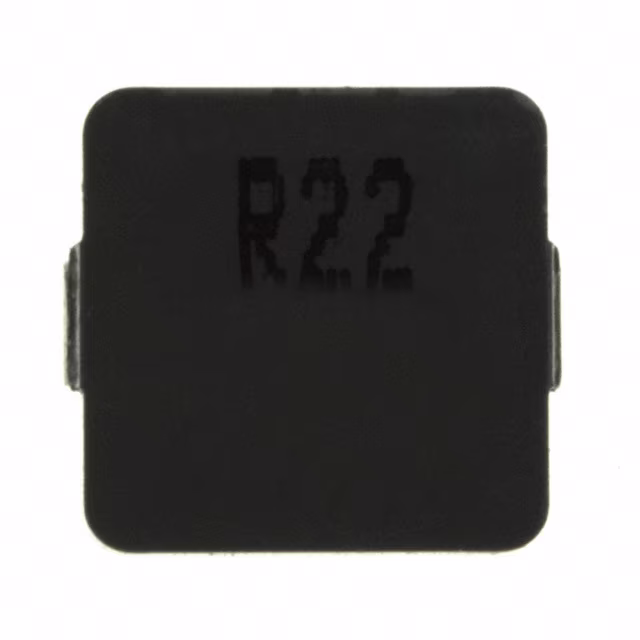

PCMC104T-R22MNFIXED IND 220NH 35A 1 MOHM SMD |
2,049 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 35 A | 60A | Unshielded | 1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

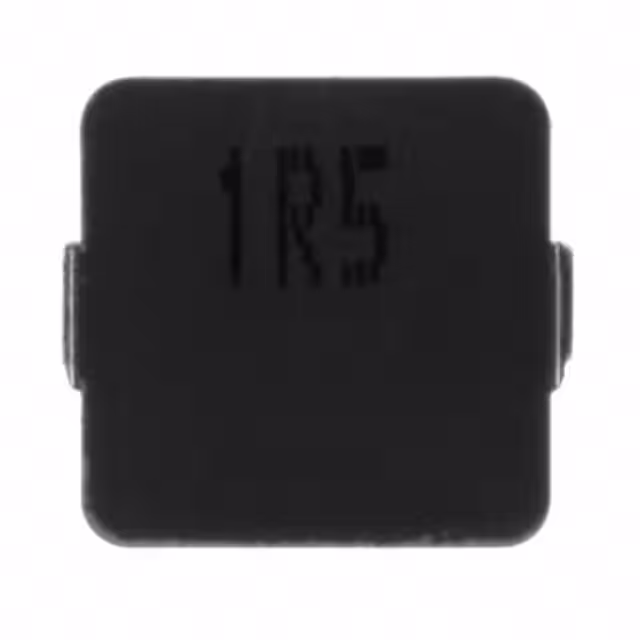

PCMC104T-1R5MNFIXED IND 1.5UH 16A 4.2 MOHM SMD |
1,986 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 16 A | 33A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMB103T-8R2MSFIXED IND 8.2UH 5A 45 MOHM SMD |
2,783 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 5 A | 8.5A | Unshielded | 45mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB104T-R36MTFIXED IND 360NH 30A 1.2 MOHM SMD |
2,957 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 360 nH | ±20% | 30 A | 50A | Unshielded | 1.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104T-1R8MSFIXED IND 1.8UH 15A 5 MOHM SMD |
1,436 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 15 A | 15A | Unshielded | 5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
PCMB104E-2R2MSFIXED IND 2.2UH 14A 7 MOHM SMD |
1,311 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 14 A | 16A | Unshielded | 7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB104E-3R3MSFIXED IND 3.3UH 11A 13.2MOHM SMD |
1,249 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11 A | 14.5A | Unshielded | 13.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
