Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4303.824NLTFIXED IND 820UH 350MA 2.21OHM SM |
1,817 |
|
Datasheet |
PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 350 mA | - | Shielded | 2.21Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SPM4020T-2R2M-CAFIXED IND 2.2UH 3.7A 70.4MOHM SM |
4,616 |
|
Datasheet |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 3.7 A | 3.8A | Shielded | 70.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
1225AS-H-R68N=P2FIXED IND 680NH 2.9A 37MOHM SMD |
4,631 |
|
Datasheet |
DEM2812C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.9 A | 2.7A | Shielded | 37mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
MGV0512R10N-10FIXED IND 100NH 14A 5.2MOHM SMD |
4,307 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | 14 A | 14.5A | Shielded | 5.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV0512R47M-10FIXED IND 470NH 7A 15.8MOHM SMD |
2,642 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 7 A | 11A | Shielded | 15.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV0512R68M-10FIXED IND 680NH 6A 24.5MOHM SMD |
3,289 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 6 A | 9A | Shielded | 24.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05121R2M-10FIXED IND 1.2UH 4.5A 40MOHM SMD |
3,521 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 4.5 A | 5.5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05121R5M-10FIXED IND 1.5UH 4A 44 MOHM SMD |
2,737 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 4 A | 5A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05122R2M-10FIXED IND 2.2UH 3.5A 75MOHM SMD |
2,121 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.5 A | 4A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05123R3M-10FIXED IND 3.3UH 3A 86 MOHM SMD |
1,397 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3 A | 3.8A | Shielded | 86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05124R7M-10FIXED IND 4.7UH 2.5A 115MOHM SMD |
3,622 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.5 A | 3.2A | Shielded | 115mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV05126R8M-10FIXED IND 6.8UH 2A 222 MOHM SMD |
4,919 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2 A | 3A | Shielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
|
MGV0512150M-10FIXED IND 15UH 1.3A 470MOHM SMD |
4,732 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 1.3 A | 1.6A | Shielded | 470mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
PM4343.682NLTFIXED IND 6.8UH 11.5A 11.5 MOHM |
3,901 |
|
Datasheet |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 11.5 A | 18A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
PM4343.681NLTFIXED IND 680NH 35A 1.5 MOHM SMD |
4,312 |
|
Datasheet |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 35 A | 55A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
SD7040-101-RFIXED IND 100UH |
4,857 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | 100 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HCTI-39-11.2FIXED IND 39UH 11.2A 14 MOHM TH |
2,349 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 39 µH | ±15% | 11.2 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
744776012AFIXED IND 1.2UH 5.5A 20 MOHM SMD |
4,176 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 5.5 A | - | Unshielded | 20mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|

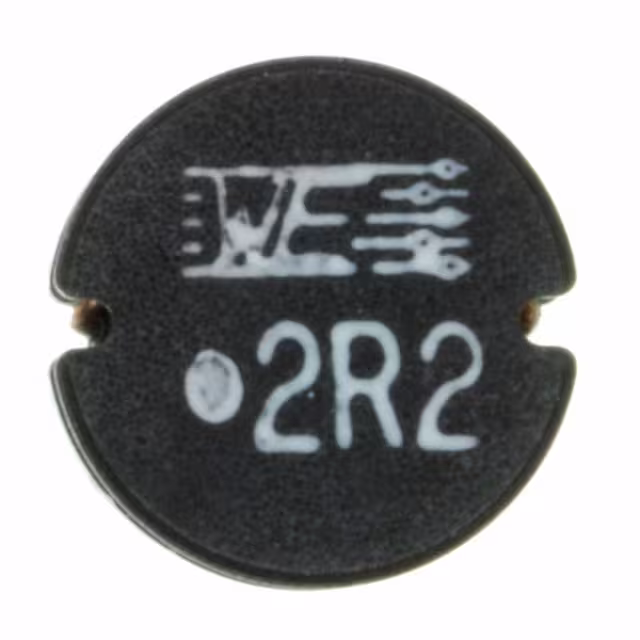

744776022AFIXED IND 2.2UH 5.4A 20 MOHM SMD |
4,833 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.4 A | - | Unshielded | 20mOhm Max | 35 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|
744776047AFIXED IND 4.7UH 4A 40 MOHM SMD |
2,637 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | - | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
