Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1110-121KFIXED IND 120UH 2A 127 MOHM TH |
1,109 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2 A | - | Unshielded | 127mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-151KFIXED IND 150UH 1.6A 181 MOHM TH |
3,570 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.6 A | - | Unshielded | 181mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-221KFIXED IND 220UH 1.6A 240 MOHM TH |
1,523 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.6 A | - | Unshielded | 240mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-331KFIXED IND 330UH 1.3A 336 MOHM TH |
3,906 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | - | Unshielded | 336mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-391KFIXED IND 390UH 1A 460 MOHM TH |
1,963 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1 A | - | Unshielded | 460mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-561KFIXED IND 560UH 800MA 696MOHM TH |
1,095 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 800 mA | - | Unshielded | 696mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
DRA124-821-RFIXED IND 820UH 406MA 2.57OHM SM |
2,585 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±20% | 406 mA | 697mA | Shielded | 2.57Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
UP2-471-RFIXED IND 470UH 550MA 1.31OHM SM |
4,644 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 550 mA | 440mA | Unshielded | 1.31Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|

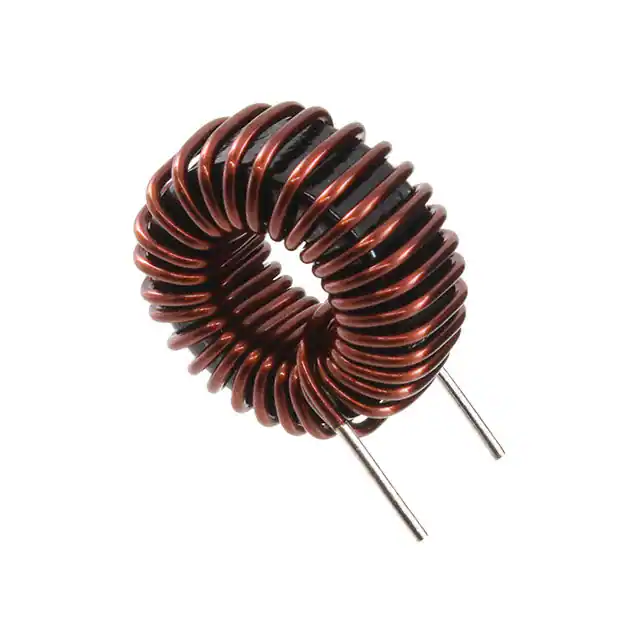

SNT-D30TCMC 20UH 500MA 2LN TH |
2,464 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 20 µH | - | 500 mA | - | Unshielded | 98mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
|
SNT-D30TFCMC 20UH 500MA 2LN TH |
1,389 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Tape & Box (TB) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 20 µH | - | 500 mA | - | Unshielded | 98mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
HTTI-15-9.2TOROIDAL IND HI TEMP 15UH 9.2ADC |
2,555 |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 15 µH | ±15% | 9.2 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-12-9.6TOROIDAL IND HI TEMP 12UH 9.6ADC |
3,608 |
|
Datasheet |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 12 µH | ±15% | 9.6 A | - | Shielded | 13mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
FP0609V1-R150-RFLAT-PAC IND 150NH 46A SMT 2 |
1,375 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
10M301KMOLDED UNSHIELDED RF COILS AXIAL |
3,053 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Iron Powder | 3 µH | ±10% | 299 mA | - | Unshielded | 700mOhm Max | 45 @ 7.9MHz | 95MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
10M820KMOLDED UNSHIELDED RF COILS AXIAL |
2,139 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 820 nH | ±10% | 415 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
MLRF0805-0056JMIL CERAMIC CHIP INDUCTOR |
4,538 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 5.6 nH | ±5% | 1 A | - | Unshielded | 90mOhm Max | 60 @ 1.5GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-270JMIL CERAMIC CHIP INDUCTOR |
3,273 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 270 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 40 @ 200MHz | 730MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-056JMIL CERAMIC CHIP INDUCTOR |
1,753 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 56 nH | ±5% | 570 mA | - | Unshielded | 340mOhm Max | 50 @ 500MHz | 1.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-0068JMIL CERAMIC CHIP INDUCTOR |
1,946 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 6.8 nH | ±5% | 1 A | - | Unshielded | 110mOhm Max | 60 @ 1.5GHz | 4.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
MLRF0805-330JMIL CERAMIC CHIP INDUCTOR |
3,472 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 330 nH | ±5% | 250 mA | - | Unshielded | 1.8Ohm Max | 40 @ 200MHz | 750MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
