Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

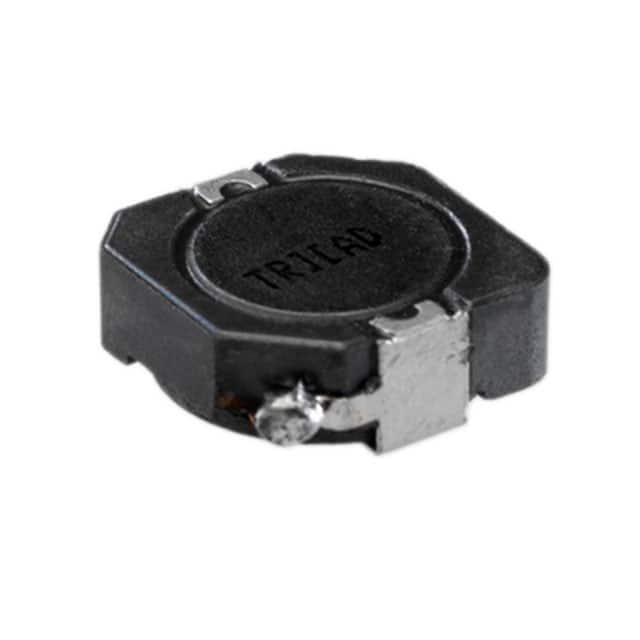

AX104R-101FIXED IND 100UH 1.35A 304MOHM SM |
3,908 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.35 A | - | Shielded | 304mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-151FIXED IND 150UH 1.15A 506MOHM SM |
4,612 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1.15 A | - | Shielded | 506mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-1R5FIXED IND 1.5UH 6.5A 8.1MOHM SMD |
2,336 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.5 A | - | Shielded | 8.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-220FIXED IND 22UH 2.9A 73 MOHM SMD |
4,842 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.9 A | - | Shielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-221FIXED IND 220UH 920MA 756MOHM SM |
4,205 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 920 mA | - | Shielded | 756mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-2R5FIXED IND 2.5UH 6.1A 10 MOHM SMD |
1,498 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.1 A | - | Shielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-330FIXED IND 33UH 2.3A 93 MOHM SMD |
1,875 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.3 A | - | Shielded | 93mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-331FIXED IND 330UH 0.7A 1.09OHM SMD |
3,881 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 0.7 A | - | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-470FIXED IND 47UH 2.1A 128 MOHM SMD |
4,783 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.1 A | - | Shielded | 128mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-680FIXED IND 68UH 1.5A 213 MOHM SMD |
3,269 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.5 A | - | Shielded | 213mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-6R8FIXED IND 6.8UH 4.8A 19.5MOHM SM |
1,000 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | - | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
AX104R-8R2FIXED IND 8.2UH 4.6A 25 MOHM SMD |
2,193 |
|
Datasheet |
AX104R | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 4.6 A | - | Shielded | 25mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
MPXV1D1040L2R2FIXED IND 2.2UH 14.6A 7.9MOHM SM |
2,963 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 14.6 A | 18.5A | Shielded | 7.9mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
HCUVE966490D-900FIXED IND 90NH 177A 0.17MOHM |
3,240 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-121FIXED IND 120NH 94A 0.17 MOHM |
2,309 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-151FIXED IND 150NH75A 0.17MOHM |
4,824 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-171FIXED IND 170NH 65A 0.17MOHM |
4,196 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-181FIXED IND 180NH 60A 0.17MOHM |
1,507 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-211FIXED IND 210NH 47A 0.17MOHM |
1,948 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HCUVE966490D-221FIXED IND 220NH 44A 0.17MOHM |
4,221 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
