Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC0805-221JCERAMIC SMT CHIP INDUCTOR |
3,833 |
|
Datasheet |
CC0805 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 2.2 µH | ±5% | 140 mA | - | Unshielded | 5Ohm Max | 15 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CC0805-0082JCERAMIC SMT CHIP INDUCTOR |
1,942 |
|
Datasheet |
CC0805 | Nonstandard | Tape & Reel (TR) | Active | - | Ceramic | 8.2 nH | ±5% | 970 mA | - | Unshielded | 120mOhm Max | 55 @ 1.5GHz | 4.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
SCEP125-8R2FIXED IND 8.2UH 10A 11.4MOHM SMD |
1,210 |
|
Datasheet |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 10 A | 5.8A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|

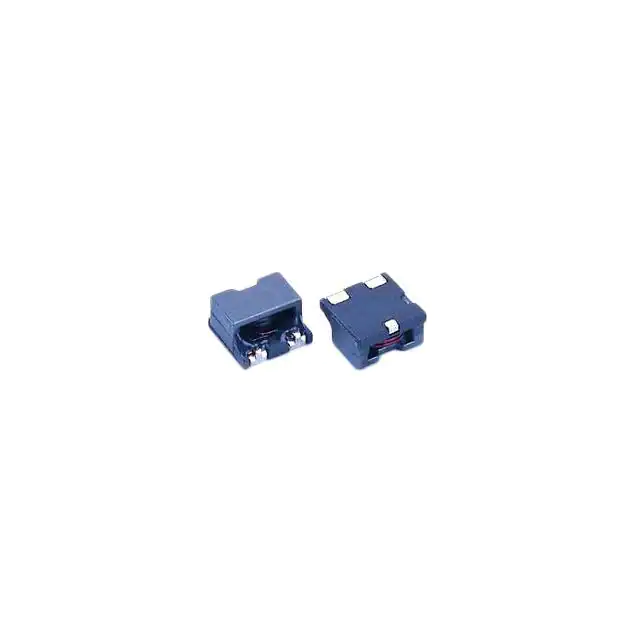

SCEP125U-R60FIXED IND 600NH 18.8A 2.5MOHM SM |
3,224 |
|
Datasheet |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 nH | ±20% | 18.8 A | 30A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
CF4H1812-101JFERRITE HP CHIP INDUCTOR |
3,491 |
|
Datasheet |
CF4H1812 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 990 mA | - | Unshielded | 330mOhm Max | 53 @ 7.9MHz | 290MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.199" L x 0.118" W (5.05mm x 3.00mm) | 0.126" (3.20mm) |
|
|
CF4H1812-181JFERRITE HP CHIP INDUCTOR |
2,782 |
|
Datasheet |
CF4H1812 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±5% | 850 mA | - | Unshielded | 450mOhm Max | 50 @ 7.9MHz | 205MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.199" L x 0.118" W (5.05mm x 3.00mm) | 0.126" (3.20mm) |
|
|
CF4H1812-821JFERRITE HP CHIP INDUCTOR |
2,440 |
|
Datasheet |
CF4H1812 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±5% | 485 mA | - | Unshielded | 1.3Ohm Max | 60 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.199" L x 0.118" W (5.05mm x 3.00mm) | 0.126" (3.20mm) |
|
B82462G2103MFIXED IND 10UH 1.25A 106MOHM SMD |
2,855 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.25 A | 1.28A | Shielded | 106mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2104MFIXED IND 100UH 410MA 950MOHM SM |
1,953 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 410 mA | 410mA | Shielded | 950mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2223MFIXED IND 22UH 830MA 245MOHM SMD |
4,204 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 830 mA | 830mA | Shielded | 245mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2332MFIXED IND 3.3UH 2A 40 MOHM SMD |
2,158 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.05A | Shielded | 40mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2334MFIXED IND 330UH 220MA 3.25OHM SM |
1,182 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 220 mA | 200mA | Shielded | 3.25Ohm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2472MFIXED IND 4.7UH 1.6A 61 MOHM SMD |
2,433 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.8A | Shielded | 61mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2473MFIXED IND 47UH 620MA 420MOHM SMD |
3,622 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 620 mA | 560mA | Shielded | 420mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
|
B82462G2682MFIXED IND 6.8UH 1.45A 78MOHM SMD |
1,813 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 1.48A | Shielded | 78mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
SRP1238A-R82MFIXED IND 820NH 25A 3 MOHM SMD |
1,196 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 25 A | 44A | Shielded | 3mOhm Max | 15 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
SRP5030TA-1R2MFIXED IND 1.2UH 6.5A 16 MOHM SMD |
3,542 |
|
Datasheet |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.2 µH | ±20% | 6.5 A | 11A | Shielded | 16mOhm Max | 10 @ 100kHz | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
IHLP4040DZETR36M01FIXED IND 360NH 31.5A 1.4MOHM SM |
1,125 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 360 nH | ±20% | 31.5 A | 60A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

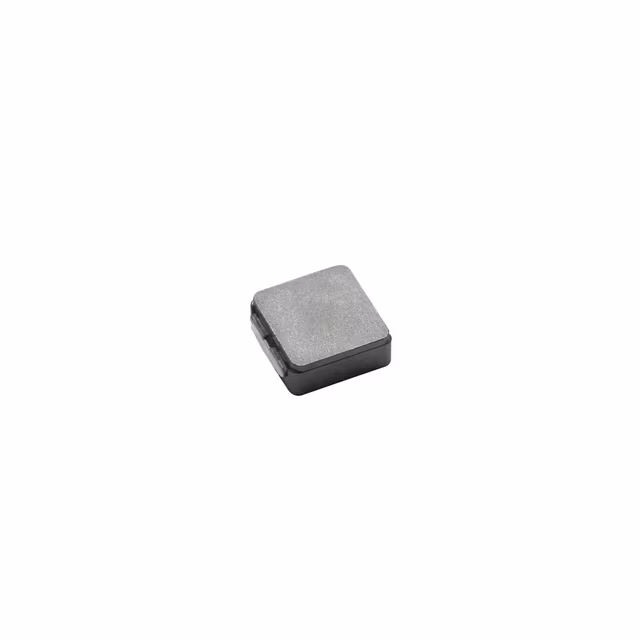

IHLP4040DZET3R3M01FIXED IND 3.3UH 10A 14.4MOHM SMD |
1,997 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 10 A | 18.6A | Shielded | 14.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZET100M01FIXED IND 10UH 6.8A 36.5MOHM SMD |
1,610 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 10 µH | ±20% | 6.8 A | 12A | Shielded | 36.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
