Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC1008-471GCERAMIC SMT CHIP INDUCTOR |
1,688 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 µH | ±2% | 220 mA | - | Unshielded | 4.9Ohm Max | 20 @ 7.9MHz | 90MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-560GCERAMIC SMT CHIP INDUCTOR |
1,326 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 560 nH | ±2% | 425 mA | - | Unshielded | 1.33Ohm Max | 45 @ 25MHz | 415MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-082GCERAMIC SMT CHIP INDUCTOR |
4,567 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 82 nH | ±2% | 1 A | - | Unshielded | 220mOhm Max | 60 @ 50MHz | 1GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
CC1008-100GCERAMIC SMT CHIP INDUCTOR |
1,857 |
|
Datasheet |
CC1008 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±2% | 655 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
CDR7D28MNNP-330NCFIXED IND 33UH 1.2A 196.3MOHM SM |
2,583 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±25% | 1.2 A | 1.35A | Shielded | 196.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CDR7D28MNNP-8R0NCFIXED IND 8UH 2.6A 50 MOHM SMD |
2,344 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8 µH | ±25% | 2.6 A | 2.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
PCMC063T-R10MNFIXED IND 100NH 32.5A 1.7MOHM SM |
2,971 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 nH | ±20% | 32.5 A | 60A | Unshielded | 1.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R22MNFIXED IND 220NH 23A 2.5 MOHM SMD |
2,824 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 23 A | 40A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R33MNFIXED IND 330NH 20A 3.9 MOHM SMD |
4,209 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 nH | ±20% | 20 A | 30A | Unshielded | 3.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R47MNFIXED IND 470NH 17.5A 4.2MOHM SM |
3,571 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 nH | ±20% | 17.5 A | 26A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-1R2MNFIXED IND 1.2UH 10A 12 MOHM SMD |
4,229 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±20% | 10 A | 20A | Unshielded | 12mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-1R5MNFIXED IND 1.5UH 9A 15 MOHM SMD |
1,435 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 9 A | 18A | Unshielded | 15mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDR7D28MNNP-2R7NCFIXED IND 2.7UH 3.7A 27.5MOHM SM |
1,487 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±25% | 3.7 A | 4.1A | Shielded | 27.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
B82476A1102M000FIXED IND 1UH 6.8A 8 MOHM SMD |
2,133 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

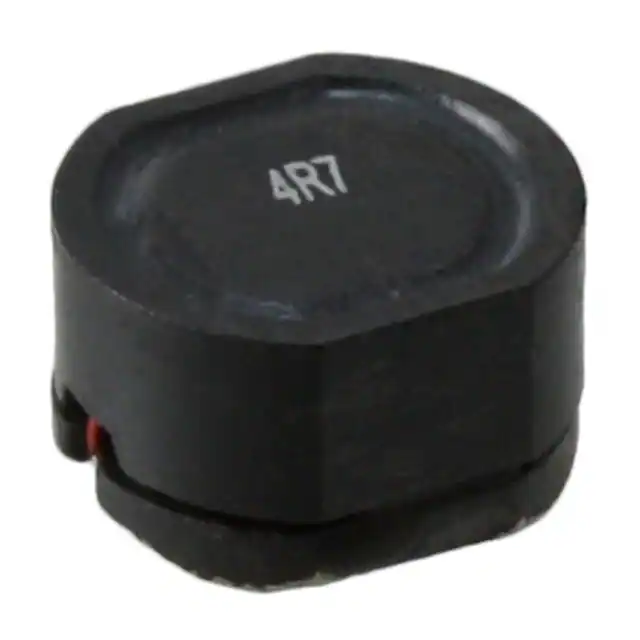

LDS0705-4R7M-RFIXED IND 4.7UH 3.32A 21MOHM SMD |
1,202 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.32 A | 3.53A | Shielded | 21mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

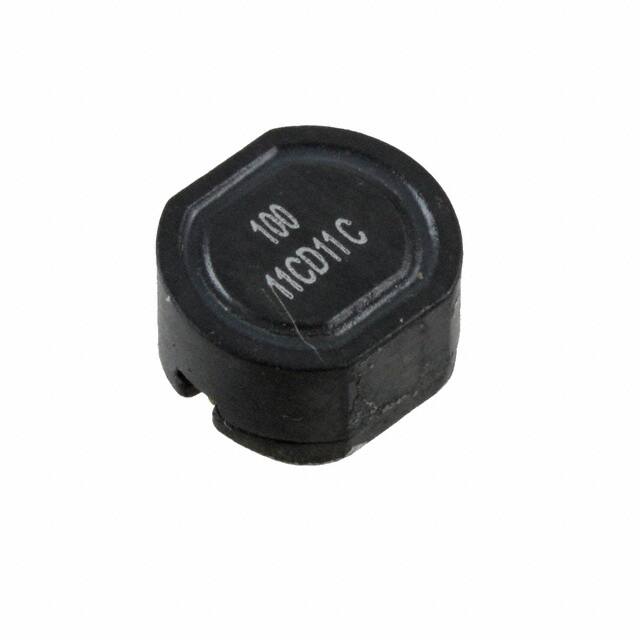

LDS0705-100M-RFIXED IND 10UH 2.54A 36 MOHM SMD |
2,610 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.54 A | 2.61A | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

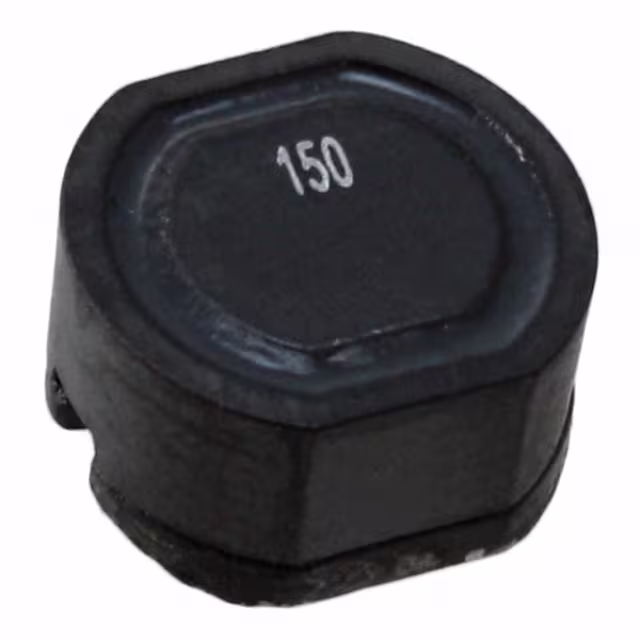

LDS0705-150M-RFIXED IND 15UH 2.04A 56 MOHM SMD |
4,447 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.04 A | 2.07A | Shielded | 56mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

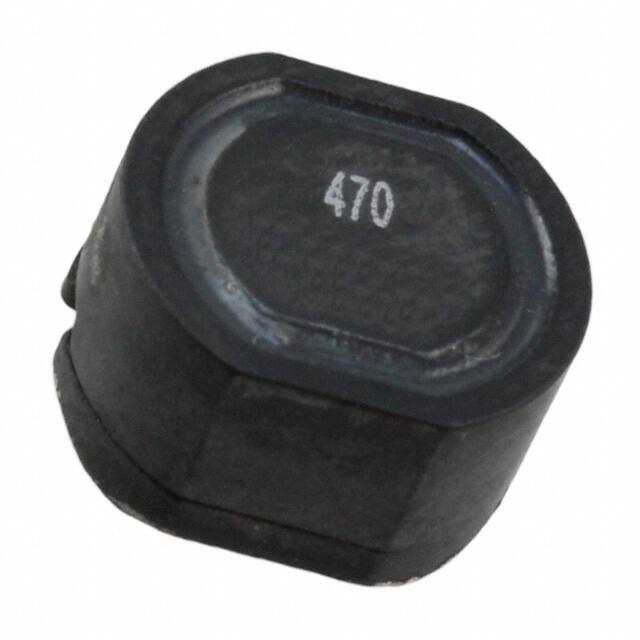

LDS0705-470M-RFIXED IND 47UH 1.21A 158MOHM SMD |
1,403 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.21 A | 1.18A | Shielded | 158mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-101M-RFIXED IND 100UH 808MA 357MOHM SM |
4,674 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 808 mA | 800mA | Shielded | 357mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

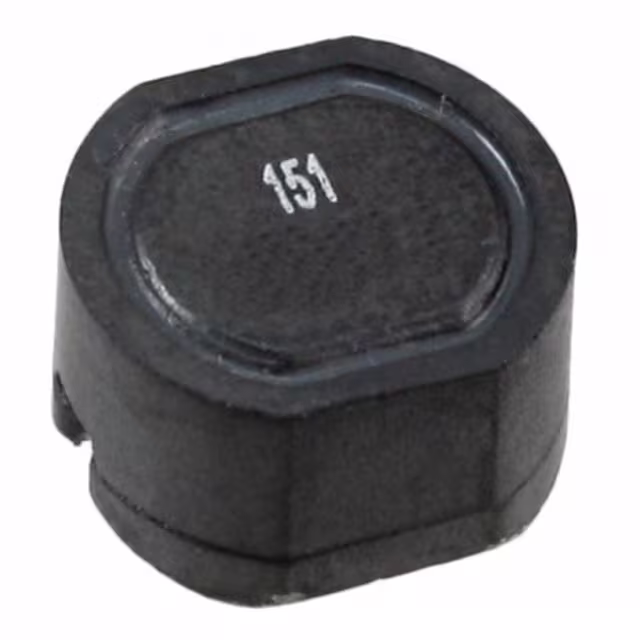

LDS0705-151M-RFIXED IND 150UH 649MA 554MOHM SM |
2,164 |
|
Datasheet |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 649 mA | 645mA | Shielded | 554mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
