Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRH127-270FIXED IND 27UH 3.6A 45.9MOHM SMD |
4,980 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.6 A | 3.4A | Shielded | 45.9mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-330FIXED IND 33UH 3.24A 64.8MOHM SM |
4,238 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3.24 A | 3A | Shielded | 64.8mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-560FIXED IND 56UH 2.35A 110MOHM SMD |
1,252 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 2.35 A | 2.35A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-680FIXED IND 68UH 2.23A 140MOHM SMD |
4,544 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 2.23 A | 2.1A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-820FIXED IND 82UH 2A 160 MOHM SMD |
1,967 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 2 A | 1.95A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-151FIXED IND 150UH 1.6A 280MOHM SMD |
3,204 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.6 A | 1.42A | Shielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-221FIXED IND 220UH 1.44A 390MOHM SM |
1,119 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 1.44 A | 1.16A | Shielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-331FIXED IND 330UH 1.22A 640MOHM SM |
2,985 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 1.22 A | 950mA | Shielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-471FIXED IND 470UH 920MA 980MOHM SM |
2,567 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 920 mA | 790mA | Shielded | 980mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-102FIXED IND 1MH 610MA 1.82 OHM SMD |
2,879 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 610 mA | 550mA | Shielded | 1.82Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

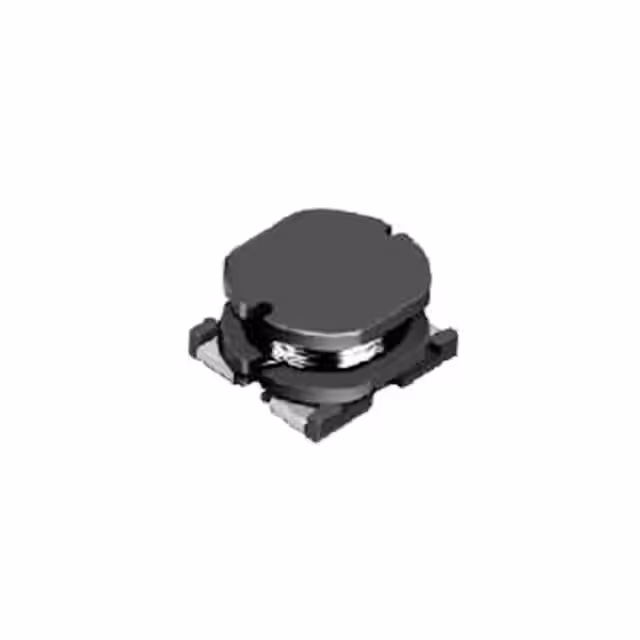

CR105NP-680KCFIXED IND 68UH 1.11A 220MOHM SMD |
1,694 |
|
Datasheet |
CR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 1.11 A | - | Unshielded | 220mOhm Max | - | 9.2MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.358" W (10.00mm x 9.10mm) | 0.228" (5.80mm) |
|
CDRH124NP-4R7MCFIXED IND 4.7UH 5.7A 18 MOHM SMD |
2,837 |
|
Datasheet |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5.7 A | - | Shielded | 18mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

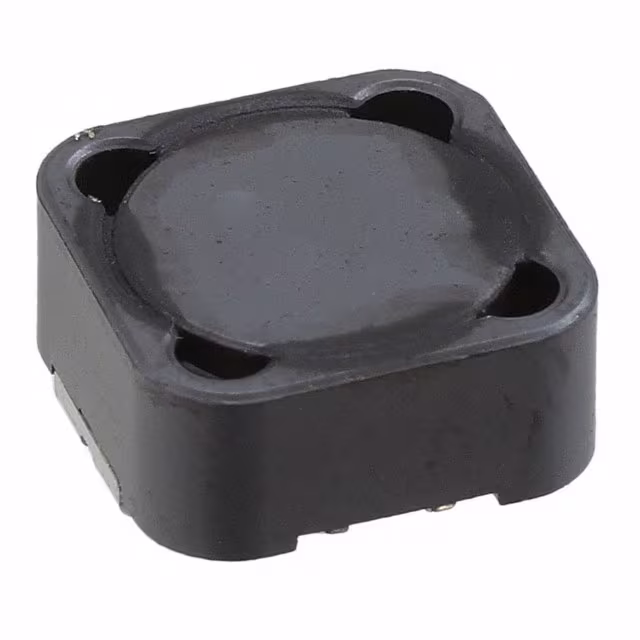

CDRH125/LDNP-471MCFIXED IND 470UH 720MA 920MOHM SM |
4,101 |
|
Datasheet |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 720 mA | - | Shielded | 920mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH125/LDNP-561MCFIXED IND 560UH 670MA 1.2OHM SMD |
2,994 |
|
Datasheet |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±20% | 670 mA | - | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

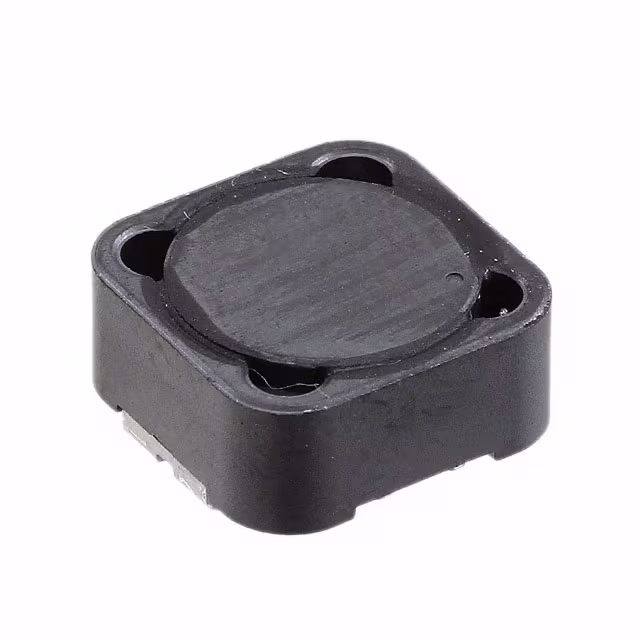

CDRH125/LDNP-151MCFIXED IND 150UH 1.26A 280MOHM SM |
1,670 |
|
Datasheet |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.26 A | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDRH124NP-101MCFIXED IND 100UH 1.2A 308MOHM SMD |
2,366 |
|
Datasheet |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.2 A | - | Shielded | 308mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
SRR1280A-270MFIXED IND 27UH 3.9A 52 MOHM SMD |
1,822 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 3.9 A | 3.7A | Shielded | 52mOhm Max | 26 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280A-820MFIXED IND 82UH 2.3A 130 MOHM SMD |
1,012 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 2.3 A | 2.2A | Shielded | 130mOhm Max | 20 @ 1KHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280A-271KFIXED IND 270UH 1.2A 450MOHM SMD |
2,596 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±10% | 1.2 A | 1.6A | Shielded | 450mOhm Max | 20 @ 796kHz | 3.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR1280A-391KFIXED IND 390UH 1A 680 MOHM SMD |
4,943 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±10% | 1 A | 1.4A | Shielded | 680mOhm Max | 24 @ 796kHz | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
