Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGV04021R0M-12FIXED IND 1UH 5A 27 MOHM SMD |
4,038 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.094" (2.40mm) |
|
74477725FIXED IND 560UH 280MA 3.62OHM SM |
2,797 |
|
- |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 280 mA | 310mA | Shielded | 3.62Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
74477728FIXED IND 820UH 210MA 5.2OHM SMD |
4,871 |
|
- |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 210 mA | 260mA | Shielded | 5.2Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
FP4-100-RFIXED IND 100NH 40A 0.65MOHM SMD |
2,966 |
|
Datasheet |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 40 A | 64A | Unshielded | 0.65mOhm Max | - | - | - | -40°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|
|
FP4-090SK-RFIXED IND 90NH 33A SMD |
3,216 |
|
Datasheet |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±15% | 33 A | 72A | Unshielded | - | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|

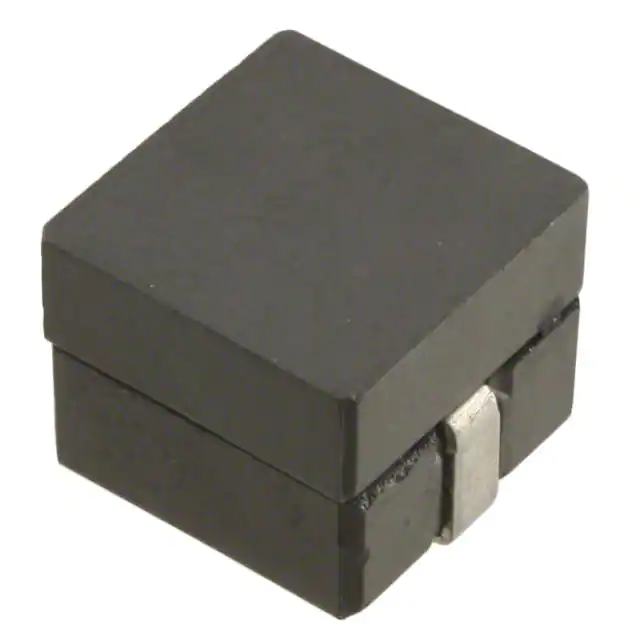

FP1109-R27-RFIXED IND 270NH 35A 0.42MOHM SMD |
2,182 |
|
Datasheet |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 35 A | 51A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
FP1109-R23-RFIXED IND 247NH 35A 0.42MOHM SMD |
4,262 |
|
Datasheet |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 247 nH | ±10% | 35 A | 55A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
FP1008R4-R180-RFIXED IND 180NH SMD |
1,764 |
|
- |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
SNT-D20TCMC 10UH 1.5A 2LN TH |
3,036 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 10 µH | - | 1.5 A | - | Unshielded | 45mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
C0603C-5N60J1T4FIXED IND 5.6NH 840MA 100MOHM SM |
4,887 |
|
Datasheet |
C0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 840 mA | - | Unshielded | 100mOhm Max | 22 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
SD25-102-RFIXED IND 1MH 216MA 5.7 OHM SMD |
2,328 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 216 mA | 126mA | Shielded | 5.7Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-330-RFIXED IND 33UH 1.11A 214.9 MOHM |
3,978 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.11 A | 711mA | Shielded | 214.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-331-RFIXED IND 330UH 359MA 2.07OHM SM |
3,906 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 359 mA | 219mA | Shielded | 2.07Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-471-RFIXED IND 470UH 293MA 3.1OHM SMD |
2,597 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 293 mA | 184mA | Shielded | 3.1Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-680-RFIXED IND 68UH 741MA 485MOHM SMD |
4,269 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 741 mA | 482mA | Shielded | 485mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-681-RFIXED IND 680UH 262MA 3.88OHM SM |
4,555 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 262 mA | 154mA | Shielded | 3.88Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-820-RFIXED IND 82UH 713MA 524.2 MOHM |
4,967 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 713 mA | 441mA | Shielded | 524.2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-821-RFIXED IND 820UH 230MA 5.04OHM SM |
2,169 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 230 mA | 139mA | Shielded | 5.04Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
MBH12282C-4R7NA=P3FIXED IND |
2,945 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH12282C-151MA=P3FIXED IND |
3,219 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
