Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH169RBNP-471MCINDUCTOR |
3,882 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 1.2 A | 1.6A | Shielded | 370mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-150MCINDUCTOR |
2,018 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 7.5 A | 9A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-392MCINDUCTOR |
1,446 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±20% | 420 mA | 560mA | Shielded | 2.92Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-330MCINDUCTOR |
4,175 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 5 A | 6A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-470MCINDUCTOR |
3,541 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 4.3 A | 5A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-472MCINDUCTOR |
4,177 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 400 mA | 5A | Shielded | 3.19Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-121MCINDUCTOR |
1,264 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 2.7 A | 3.2A | Shielded | 107.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-561MCINDUCTOR |
4,791 |
|
Datasheet |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 1.05 A | 1.5A | Shielded | 460mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
SD12-150-RFIXED IND 15UH 782MA 408.9 MOHM |
3,162 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 782 mA | 692mA | Shielded | 408.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SD12-1R5-RFIXED IND 1.5UH 2.19A 52.1 MOHM |
4,437 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.19 A | 2.08A | Shielded | 52.1mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SD12-3R3-RFIXED IND 3.3UH 1.55A 104.3 MOHM |
3,699 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.55 A | 1.42A | Shielded | 104.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SD12-6R2-RFIXED IND 6.2UH 1.21A 169.9 MOHM |
4,186 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 1.21 A | 1.08A | Shielded | 169.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SD12-8R2-RFIXED IND 8.2UH 1.02A 239.9 MOHM |
4,834 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.02 A | 931mA | Shielded | 239.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SD12-R47-RFIXED IND 470NH 3.19A 24.6 MOHM |
2,612 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.19 A | 3.86A | Shielded | 24.6mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SMRF1812-680KMOLDED UNSHIELDED INDUCTOR |
1,557 |
|
Datasheet |
SMRF1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±10% | 379 mA | - | Unshielded | 1.4Ohm Max | 40 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.175" L x 0.126" W (4.45mm x 3.20mm) | 0.138" (3.50mm) |
|

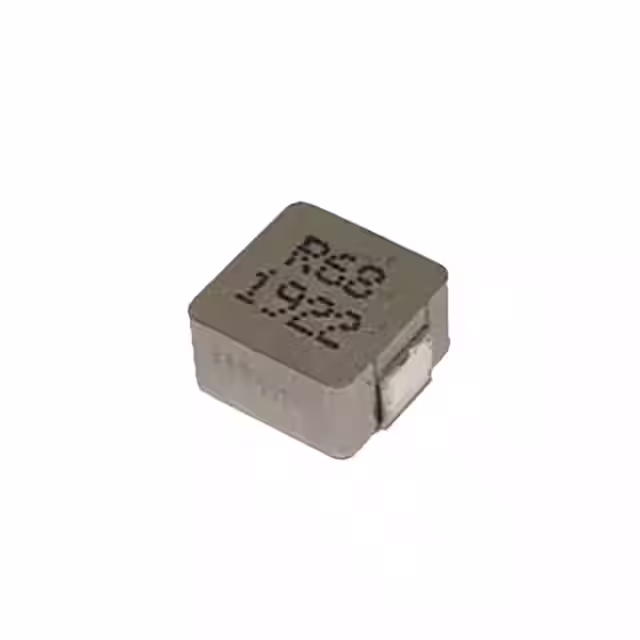

MHA0530NSGR68MFIXED IND 680NH 8.5A 9.8MOHM SMD |
2,950 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 8.5 A | 12A | - | 9.8mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|
1812-101KFIXED IND 100NH 818MA 300MOHM SM |
1,078 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±10% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 650MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812-121KFIXED IND 120NH 818MA 300MOHM SM |
3,542 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±10% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812-221KFIXED IND 220NH 708MA 400MOHM SM |
1,476 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 708 mA | - | Unshielded | 400mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812-331KFIXED IND 330NH 604MA 550MOHM SM |
3,754 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±10% | 604 mA | - | Unshielded | 550mOhm Max | 30 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
