Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

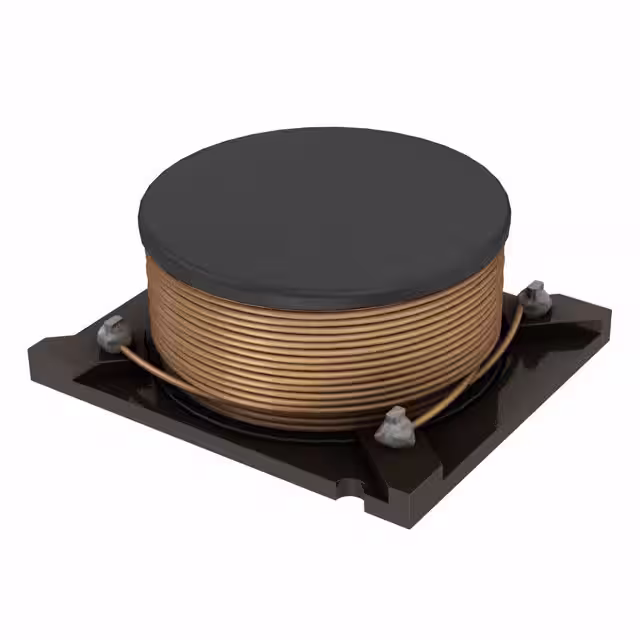

AX97-40101FIXED IND 100UH 2A 150 MOHM SMD |
4,674 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40150FIXED IND 15UH 5.3A 30 MOHM SMD |
4,981 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40220FIXED IND 22UH 4.4A 40 MOHM SMD |
1,881 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.4 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40221FIXED IND 220UH 1.3A 330MOHM SMD |
1,465 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | - | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40330FIXED IND 33UH 3.5A 60 MOHM SMD |
4,681 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40331FIXED IND 330UH 1.1A 450MOHM SMD |
2,011 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.1 A | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-403R3FIXED IND 3.3UH 9.8A 10MOHM SMD |
3,013 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 9.8 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40471FIXED IND 470UH 930MA 700MOHM SM |
4,030 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 930 mA | - | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-404R7FIXED IND 4.7UH 9.3A 10MOHM SMD |
2,114 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.3 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40680FIXED IND 68UH 2.5A 110MOHM SMD |
1,481 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.5 A | - | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40151FIXED IND 150UH 1.7A 220MOHM SMD |
4,061 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.7 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40470FIXED IND 47UH 3A 70 MOHM SMD |
2,866 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-406R8FIXED IND 6.8UH 7.7A 20 MOHM SMD |
1,144 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 7.7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40820FIXED IND 82UH 2.2A 120 MOHM SMD |
4,123 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.2 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-408R2FIXED IND 8.2UH 7A 20 MOHM SMD |
4,183 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
IHLP5050FDER680M5AINDUCT WW SNGL COIL MISC |
3,546 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 68 µH | ±20% | 4.9 A | 4.6A | Shielded | 105.6mOhm Max | - | 3.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER100M11INDUCT WW SNGL COIL MISC |
4,180 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP5050FDERR47M51INDUCT WW SNGL COIL MISC |
1,266 |
|
Datasheet |
IHLP-5050FD-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 54 A | 42A | Shielded | 1.16mOhm Max | - | 65.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER330M5AINDUCT WW SNGL COIL MISC |
4,787 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 6.9 A | 6.2A | Shielded | 49.25mOhm Max | - | 5.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR56M5AINDUCT WW SNGL COIL MISC |
3,140 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 50 A | 32A | Shielded | 1.33mOhm Max | - | 63.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
