Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0819-70KFIXED IND 82UH 54.5MA 16 OHM TH |
3,868 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 54.5 mA | - | Unshielded | 16Ohm Max | 45 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819-72KFIXED IND 100UH 52MA 17.5 OHM TH |
1,506 |
|
Datasheet |
819 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±10% | 52 mA | - | Unshielded | 17.5Ohm Max | 45 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
SMP1812-122KLFMOLDED SHIELDED INDUCTOR |
2,925 |
|
Datasheet |
SMP1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 12 µH | ±10% | 669 mA | 752mA | Unshielded | 510mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
|
SMP1812-152KLFMOLDED SHIELDED INDUCTOR |
1,109 |
|
Datasheet |
SMP1812 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±10% | 563 mA | 693mA | Unshielded | 720mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) |
|
9250-126FIXED IND 12MH 23MA 143 OHM TH |
3,770 |
|
Datasheet |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 23 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 330kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
CDRH104NP-560MCFIXED IND 56UH 1A 230 MOHM SMD |
1,402 |
|
Datasheet |
CDRH104 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1 A | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.350" W (9.80mm x 8.90mm) | 0.197" (5.00mm) |
|
SPM4020T-R47MFIXED IND 470NH 6.1A 19.5MOHM SM |
2,627 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6.1 A | 10.6A | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
ISC1812ER1R0KFIXED IND 1UH 447MA 350 MOHM SMD |
2,524 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 447 mA | - | Shielded | 350mOhm Max | 30 @ 7.96MHz | 140MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ISC1812ER4R7KFIXED IND 4.7UH 336MA 620MOHM SM |
4,310 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±10% | 336 mA | - | Shielded | 620mOhm Max | 30 @ 7.96MHz | 50MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

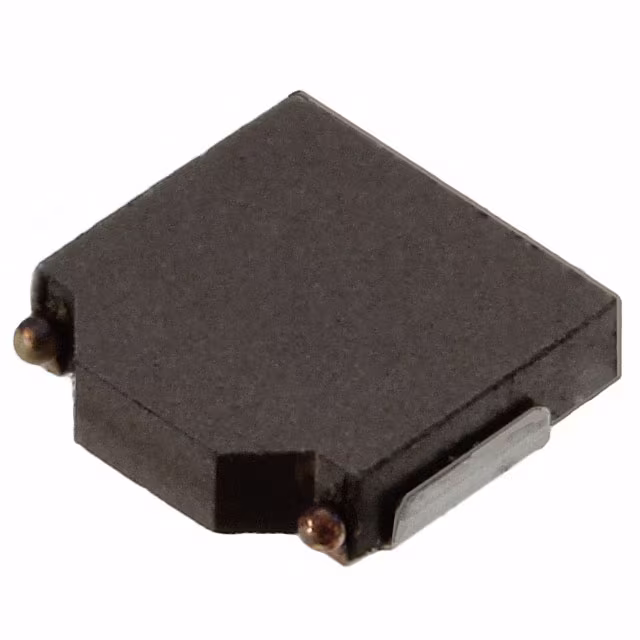

SPM4012T-1R0MFIXED IND 1UH 4.3A 45 MOHM SMD |
4,980 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

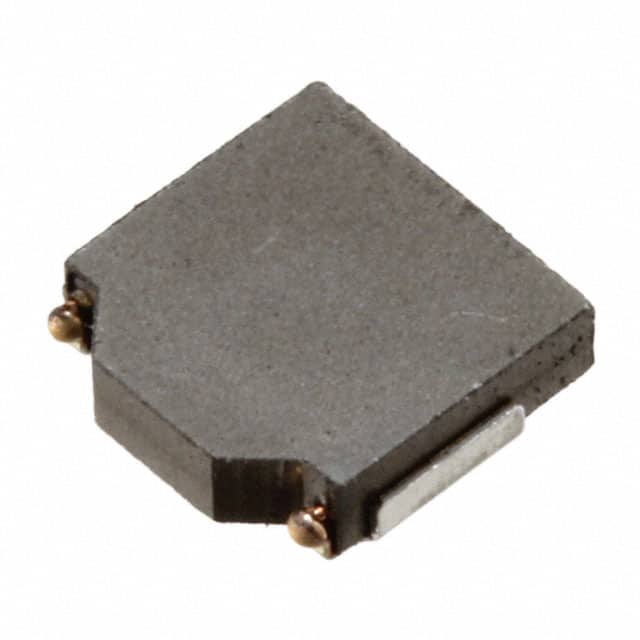

SPM4012T-1R5MFIXED IND 1.5UH 3.5A 70 MOHM SMD |
2,968 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.5 A | 3.5A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-2R2MFIXED IND 2.2UH 2.9A 95 MOHM SMD |
2,900 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

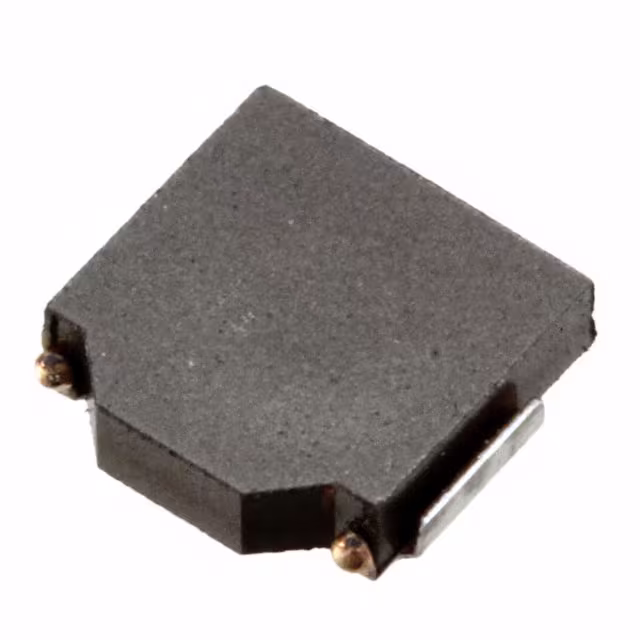

SPM4012T-3R3MFIXED IND 3.3UH 2.4A 145MOHM SMD |
4,599 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.4 A | 2.8A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
MGV0512R22N-10FIXED IND 220NH 10.7A 6.7MOHM SM |
1,295 |
|
- |
MGV | Nonstandard | Cut Tape (CT) | Active | Molded | - | 220 nH | ±20% | 10.7 A | 14A | Shielded | 6.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.047" (1.20mm) |
|
IHLP2020CZET4R7M01FIXED IND 4.7UH 3.5A 77.5MOHM SM |
3,679 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 3.5 A | 8.2A | Shielded | 77.5mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP2020CZET1R5M11FIXED IND 1.5UH 7.5A 18.5MOHM SM |
1,512 |
|
Datasheet |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1.5 µH | ±20% | 7.5 A | 7A | Shielded | 18.5mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZET5R6M11FIXED IND 5.6UH 4.25A 70.6 MOHM |
3,521 |
|
Datasheet |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 5.6 µH | ±20% | 4.25 A | 3.5A | Shielded | 70.6mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
HBLE041B-4R7MSAIND SMD 4.7UH MOLDING CHOKE |
4,070 |
|
Datasheet |
HBLE041B | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 4.7 µH | ±20% | 2.6 A | 2.2A | Unshielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.047" (1.20mm) |
|
|
HBLQ041T-R47MSIAIND SMD 0.47UH MOLDING CHOKE |
4,789 |
|
Datasheet |
HBLQ041T | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 470 nH | ±20% | 6.5 A | 7A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
HBLE061B-4R7MSIND SMD 4.7UH MOLDING CHOKE |
2,733 |
|
Datasheet |
HBLE061B | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Metal | 4.7 µH | ±20% | 2.8 A | 3.2A | Unshielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.047" (1.20mm) |
