Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0702.401NLTFIXED IND 400NH 38A 0.91MOHM SMD |
2,765 |
|
Datasheet |
PG0702NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±20% | 38 A | 43A | Shielded | 0.91mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.222NLTFIXED IND 2.2UH 15.9A 3.3MOHM SM |
1,950 |
|
Datasheet |
PG0702NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 15.9 A | 15.9A | Shielded | 3.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.451NLTFIXED IND 450NH 38A 0.91MOHM SMD |
4,456 |
|
Datasheet |
PG0702NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 450 nH | ±20% | 38 A | 41A | Shielded | 0.91mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
PA4342.273NLTFIXED IND 27UH 4A 100 MOHM SMD |
2,692 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 27 µH | ±20% | 4 A | 6A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PM105-470KFIXED IND 47UH 1.28A 170MOHM SMD |
3,432 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.28 A | - | Unshielded | 170mOhm | - | 10MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

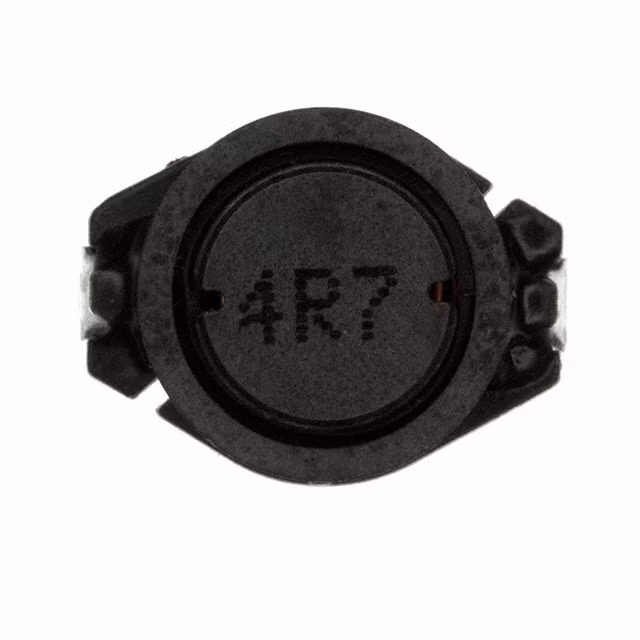

SDS130R-472NFIXED IND 4.7UH 2.5A 78 MOHM SMD |
2,791 |
|
Datasheet |
SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.5 A | - | Shielded | 78mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
B82462G2222MFIXED IND 2.2UH 2.3A 32 MOHM SMD |
2,659 |
|
Datasheet |
B82462G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.3 A | 2.55A | Shielded | 32mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.098" (2.50mm) |
|
SRR0906-151YLFIXED IND 150UH 600MA 550MOHM SM |
3,923 |
|
Datasheet |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±15% | 600 mA | 700mA | Shielded | 550mOhm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
SRP4020-R22MFIXED IND 220NH 11.5A 7 MOHM SMD |
2,638 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 220 nH | ±20% | 11.5 A | 11.5A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-R36MFIXED IND 360NH 9A 12 MOHM SMD |
4,421 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 360 nH | ±20% | 9 A | 11A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-R47MFIXED IND 470NH 7A 12 MOHM SMD |
1,191 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 470 nH | ±20% | 7 A | 10A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-R56MFIXED IND 560NH 7A 14.7 MOHM SMD |
3,693 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 560 nH | ±20% | 7 A | 8A | Shielded | 14.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-R68MFIXED IND 680NH 6.3A 17 MOHM SMD |
1,893 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 680 nH | ±20% | 6.3 A | 7A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-R88MFIXED IND 880NH 6A 18 MOHM SMD |
1,385 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 880 nH | ±20% | 6 A | 6.5A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-1R0MFIXED IND 1UH 5A 21.6 MOHM SMD |
4,246 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 1 µH | ±20% | 5 A | 6A | Shielded | 21.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-1R2MFIXED IND 1.2UH 5A 22 MOHM SMD |
4,078 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 1.2 µH | ±20% | 5 A | 5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-1R5MFIXED IND 1.5UH 5.1A 29 MOHM SMD |
2,654 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 1.5 µH | ±20% | 5.1 A | 5A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SRP4020-2R2MFIXED IND 2.2UH 3.9A 40 MOHM SMD |
4,033 |
|
Datasheet |
SRP4020 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Iron | 2.2 µH | ±20% | 3.9 A | 5A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.157" W (4.80mm x 4.00mm) | 0.079" (2.00mm) |
|
SRP7030-R10FMFIXED IND 100NH 32A 0.0017OHM SM |
3,203 |
|
Datasheet |
SRP7030F | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 100 nH | ±20% | 32 A | 60A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Flat Wire | Surface Mount | - | 0.299" L x 0.256" W (7.60mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SRP7030-R15FMFIXED IND 150NH 28A 0.00199OHM |
2,918 |
|
Datasheet |
SRP7030F | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 150 nH | ±20% | 28 A | 37A | Shielded | 1.99mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Flat Wire | Surface Mount | - | 0.299" L x 0.256" W (7.60mm x 6.50mm) | 0.118" (3.00mm) |
