Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5900-122FIXED IND 1.2MH 680MA 910MOHM TH |
1,566 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 680 mA | 760mA | Unshielded | 910mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-222FIXED IND 2.2MH 500MA 1.7 OHM TH |
2,887 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 500 mA | 560mA | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-392FIXED IND 3.9MH 370MA 3.1 OHM TH |
4,740 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 370 mA | 420mA | Unshielded | 3.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-472FIXED IND 4.7MH 340MA 3.7 OHM TH |
2,040 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 340 mA | 380mA | Unshielded | 3.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-562FIXED IND 5.6MH 320MA 4.1 OHM TH |
2,980 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 320 mA | 350mA | Unshielded | 4.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-103FIXED IND 10MH 230MA 7.6 OHM TH |
3,781 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 230 mA | 260mA | Unshielded | 7.6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-123FIXED IND 12MH 220MA 8.5 OHM TH |
4,966 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 220 mA | 240mA | Unshielded | 8.5Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-273FIXED IND 27MH 140MA 22 OHM TH |
4,488 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±10% | 140 mA | 160mA | Unshielded | 22Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-683FIXED IND 68MH 80MA 58 OHM TH |
2,543 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 80 mA | 100mA | Unshielded | 58Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-823FIXED IND 82MH 79MA 65 OHM TH |
2,249 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 82 mH | ±10% | 79 mA | 92mA | Unshielded | 65Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-104FIXED IND 100MH 70MA 82 OHM TH |
2,618 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 70 mA | 83mA | Unshielded | 82Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|

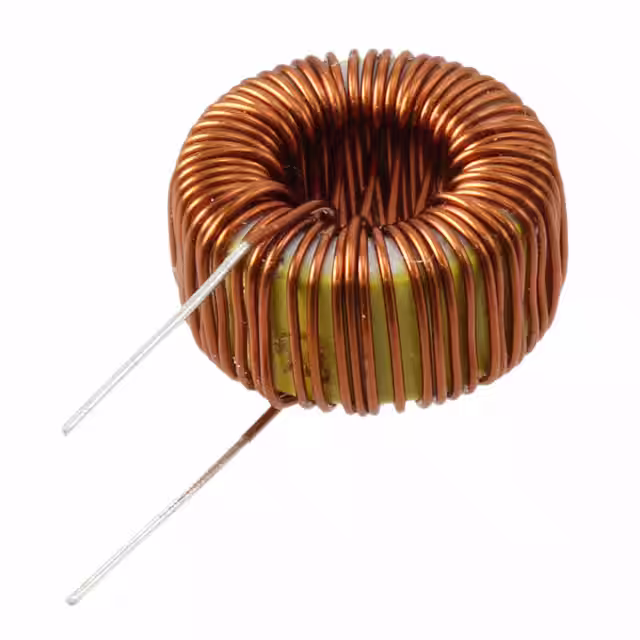

DPO-0.5-150FIXED IND 150UH 500MA 173MOHM TH |
1,343 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | - | 500 mA | - | Unshielded | 173mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
|

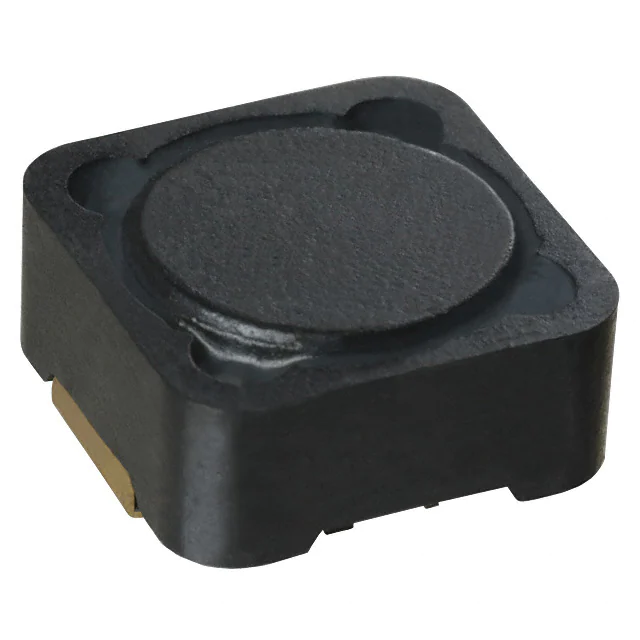

MGDQ5-00017-PFIXED IND 100UH 1.3A 160MOHM SMD |
1,863 |
|
- |
MGDQ5, Coev | Nonstandard | Bulk | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
PM105-100MFIXED IND 10UH 2.6A 60 MOHM SMD |
4,287 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | - | Unshielded | 60mOhm | - | 25MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-150MFIXED IND 15UH 2.27A 80 MOHM SMD |
2,847 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.27 A | - | Unshielded | 80mOhm | - | 19MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-220MFIXED IND 22UH 1.96A 100MOHM SMD |
4,372 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.96 A | - | Unshielded | 100mOhm | - | 15MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-330MFIXED IND 33UH 1.5A 12 MOHM SMD |
4,321 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | - | Unshielded | 12mOhm | - | 13MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-390MFIXED IND 39UH 1.37A 140MOHM SMD |
3,489 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.37 A | - | Unshielded | 140mOhm | - | 12MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-680KFIXED IND 68UH 1.11A 220MOHM SMD |
3,483 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.11 A | - | Unshielded | 220mOhm | - | 9MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-820KFIXED IND 82UH 1A 250 MOHM SMD |
1,947 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1 A | - | Unshielded | 250mOhm | - | 8MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
