Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17154CFIXED IND 150UH 580MA 490MOHM TH |
3,005 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 150 µH | ±10% | 580 mA | - | Unshielded | 490mOhm Max | 90 @ 100kHz | 5.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17155CFIXED IND 1.5MH 150MA 5.9 OHM TH |
1,117 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±10% | 150 mA | - | Unshielded | 5.9Ohm Max | 130 @ 100kHz | 1.9MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17156CFIXED IND 15MH 60MA 47 OHM TH |
3,570 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 mH | ±10% | 60 mA | - | Unshielded | 47Ohm Max | 140 @ 150kHz | 510kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17224CFIXED IND 220UH 480MA 750MOHM TH |
1,499 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 480 mA | - | Unshielded | 750mOhm Max | 100 @ 100kHz | 4.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17225CFIXED IND 2.2MH 120MA 7.8 OHM TH |
3,784 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 2.2 mH | ±10% | 120 mA | - | Unshielded | 7.8Ohm Max | 90 @ 50kHz | 1.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17333CFIXED IND 33UH 1A 130 MOHM TH |
1,424 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±10% | 1 A | - | Unshielded | 130mOhm Max | 50 @ 500kHz | 11.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17334CFIXED IND 330UH 420MA 1.1 OHM TH |
2,769 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 420 mA | - | Unshielded | 1.1Ohm Max | 100 @ 100kHz | 3.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17335CFIXED IND 3.3MH 110MA 10 OHM TH |
4,572 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±10% | 110 mA | - | Unshielded | 10Ohm Max | 140 @ 150kHz | 1.2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17475CFIXED IND 4.7MH 90MA 13.6 OHM TH |
1,555 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±10% | 90 mA | - | Unshielded | 13.6Ohm Max | 150 @ 150kHz | 950kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17683CFIXED IND 68UH 850MA 260MOHM TH |
1,060 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±10% | 850 mA | - | Unshielded | 260mOhm Max | 90 @ 100kHz | 8.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17684CFIXED IND 680UH 280MA 2.4 OHM TH |
3,634 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 280 mA | - | Unshielded | 2.4Ohm Max | 120 @ 100kHz | 2.5MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17686CFIXED IND 68MH 20MA 220 OHM TH |
1,992 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 mH | ±10% | 20 mA | - | Unshielded | 220Ohm Max | 70 @ 50kHz | 200kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
SRU1063A-330YFIXED IND 33UH 2.2A 105 MOHM SMD |
2,058 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.2 A | 2.4A | Shielded | 105mOhm Max | 12 @ 2.52MHz | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|

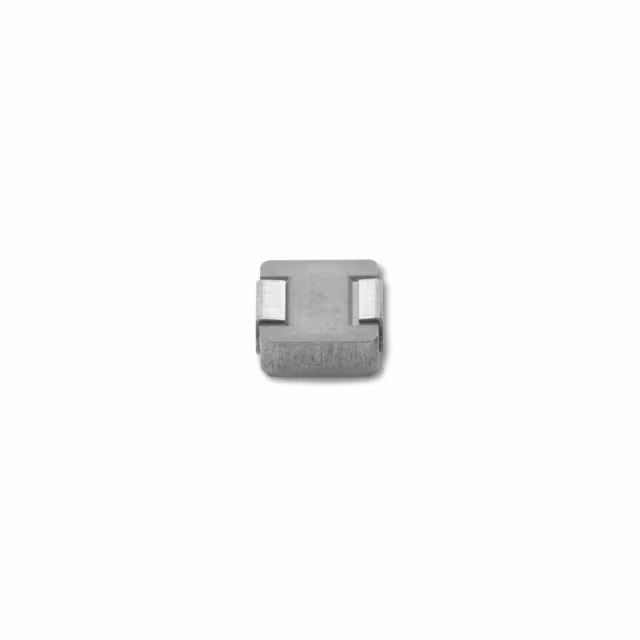

IHLP2525CZET2R2M01FIXED IND 2.2UH 8A 20 MOHM SMD |
3,314 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | 38MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZET4R7M01FIXED IND 4.7UH 5.5A 40MOHM SMD |
1,395 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

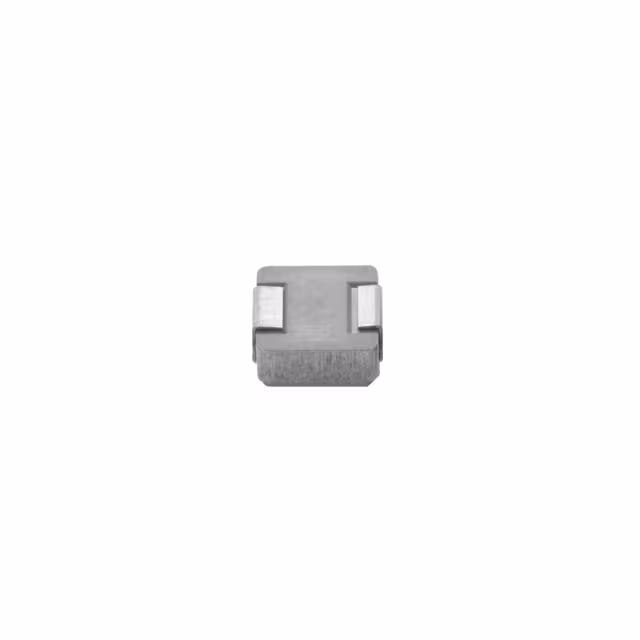

IHLP2525CZET2R2M11FIXED IND 2.2UH 9A 16.5MOHM SMD |
4,037 |
|
Datasheet |
IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 2.2 µH | ±20% | 9 A | 7A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZET4R7M11FIXED IND 4.7UH 6A 33.4MOHM SMD |
2,998 |
|
Datasheet |
IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 4.7 µH | ±20% | 6 A | 4A | Shielded | 33.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
MPX1D0618LR10FIXED IND 100NH 18.9A 2.8MOHM SM |
1,881 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 nH | ±20% | 18.9 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPX1D0618LR15FIXED IND 150NH 16.2A 3.8MOHM SM |
3,410 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 16.2 A | 30A | Shielded | 3.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPX1D0618LR22FIXED IND 220NH 13.7A 5.3MOHM SM |
2,408 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 13.7 A | 26A | Shielded | 5.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
