Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4232R-821KFIXED IND 820NH 294MA 1.4OHM SMD |
4,240 |
|
Datasheet |
4232R | 2-SMD | Tape & Reel (TR) | Active | Wirewound | Phenolic | 820 nH | ±10% | 294 mA | - | Unshielded | 1.4Ohm Max | 10 @ 25MHz | 100MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
|
4232R-822KFIXED IND 8.2UH 263MA 3 OHM SMD |
1,087 |
|
Datasheet |
4232R | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 8.2 µH | ±10% | 263 mA | - | Unshielded | 3Ohm Max | 30 @ 7.9MHz | 21MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.67mm) | 0.101" (2.57mm) |
|
LQH66SN222M03LFIXED IND 2.2MH 100MA 13.16 OHM |
3,717 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 100 mA | - | Shielded | 13.16Ohm Max | - | 1.2MHz | - | -40°C ~ 80°C | 10 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
LQH66SN681M03LFIXED IND 680UH 200MA 5.46OHM SM |
2,325 |
|
Datasheet |
LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 200 mA | - | Shielded | 5.46Ohm Max | - | 2MHz | - | -40°C ~ 80°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
IHTL5025KBEZR17LIND COUPLED TLVR 170NH 77A |
3,476 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHTL5025KBEZR12LIND COUPLED TLVR 120NH 77A |
1,403 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SRU8045A-6R2YFIXED IND 6.2UH 4.2A 36 MOHM SMD |
3,220 |
|
Datasheet |
SRU8045A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±30% | 4.2 A | 3.8A | Shielded | 36mOhm Max | 10 @ 7.96MHz | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.189" (4.80mm) |
|
PM1608-680MFIXED IND 68UH 400MA 860MOHM SMD |
3,587 |
|
Datasheet |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 400mA | Unshielded | 860mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SRR1806-471MFIXED IND 470UH 640MA 1 OHM SMD |
4,728 |
|
Datasheet |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 640 mA | 1.3A | Shielded | 1Ohm | 27 @ 796kHz | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
|
SRR1806-681MFIXED IND 680UH 540MA 1.47OHM SM |
3,878 |
|
Datasheet |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 540 mA | 1.1A | Shielded | 1.47Ohm | 19 @ 796kHz | 2.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
SPM10040T-R36M170FIXED IND 360NH 17A 1.1 MOHM SMD |
4,208 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 360 nH | ±20% | 17 A | 17A | Shielded | 1.1mOhm | - | - | - | - | 300 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPM10040T-R56M150FIXED IND 560NH 15A 1.7 MOHM SMD |
4,405 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 560 nH | ±20% | 15 A | 15A | Shielded | 1.7mOhm | - | - | - | - | 300 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
VLF302510MT-1R0NFIXED IND 1UH 2.13A 40 MOHM SMD |
4,401 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.13 A | 2.22A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-1R5NFIXED IND 1.5UH 1.65A 66MOHM SMD |
3,792 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.65 A | 1.65A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|

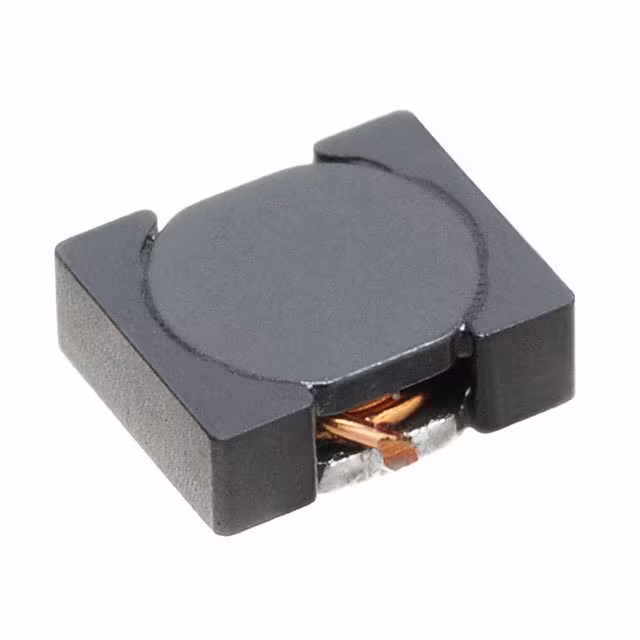

VLF302510MT-2R2MFIXED IND 2.2UH 1.5A 84MOHM SMD |
4,756 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.37A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-3R3MFIXED IND 3.3UH 1.2A 126MOHM SMD |
3,407 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.2 A | 1.21A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-4R7MFIXED IND 4.7UH 1.08A 168MOHM SM |
1,766 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.08 A | 950mA | Shielded | 168mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-6R8MFIXED IND 6.8UH 840MA 258MOHM SM |
1,608 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 840 mA | 810mA | Shielded | 258mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-100MFIXED IND 10UH 730MA 372MOHM SMD |
1,742 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 730 mA | 650mA | Shielded | 372mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-150MFIXED IND 15UH 550MA 600MOHM SMD |
2,886 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 550 mA | 520mA | Shielded | 600mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
