Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP2-S068-RFIXED IND 68NH 39A 0.24 MOHM SMD |
4,339 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 nH | ±15% | 39 A | 32A | Unshielded | 0.24mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP2-S082-RFIXED IND 82NH 39A 0.24 MOHM SMD |
4,888 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 nH | ±15% | 39 A | 26A | Unshielded | 0.24mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP2-S120-RFIXED IND 120NH 39A 0.24MOHM SMD |
2,423 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 39 A | 18A | Unshielded | 0.24mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
IHLP4040EDER101M11INDUCT WW SNGL COIL MISC |
4,454 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

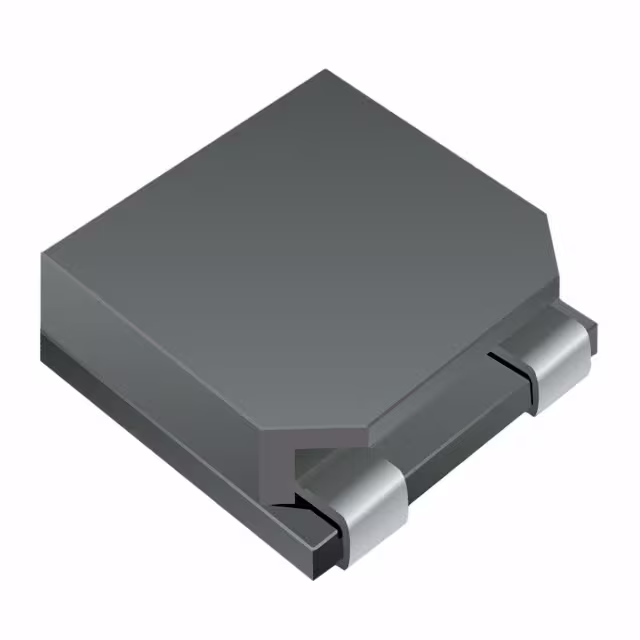

SRR1305-1R4ZLFIXED IND 1.4UH 16A 3.4 MOHM SMD |
1,998 |
|
Datasheet |
SRR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±25% | 16 A | 18A | Shielded | 3.4mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
SRR1305-2R0ZLFIXED IND 2UH 13A 4.6 MOHM SMD |
3,631 |
|
Datasheet |
SRR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 13 A | 15A | Shielded | 4.6mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
SRR1305-2R7ZLFIXED IND 2.7UH 6A 9.5 MOHM SMD |
3,162 |
|
Datasheet |
SRR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±25% | 6 A | 10A | Shielded | 9.5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
SRR1305-R90ZLFIXED IND 900NH 20A 2.5 MOHM SMD |
3,915 |
|
Datasheet |
SRR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±25% | 20 A | 22A | Shielded | 2.5mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
PE-53600NLTFIXED IND 6.2UH 1.4A 70 MOHM SMD |
1,091 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.2 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PM2203.151NLTFIXED IND 150NH 22.2A 2.31 MOHM |
4,710 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±20% | 22.2 A | 36A | Unshielded | 2.31mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.152NLTFIXED IND 1.5UH 10.5A 11.2 MOHM |
3,276 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 10.5 A | 14A | Unshielded | 11.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.561NLTFIXED IND 560NH 17.7A 4.52 MOHM |
1,250 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 17.7 A | 22.2A | Unshielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.601NLTFIXED IND 600NH 17.7A 4.52 MOHM |
3,424 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 17.7 A | 22A | Unshielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.801NLTFIXED IND 800NH 13.1A 5.65 MOHM |
4,370 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 800 nH | ±20% | 13.1 A | 20A | Unshielded | 5.65mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PM2203.821NLTFIXED IND 820NH 12.9A 5.78 MOHM |
2,578 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 12.9 A | 19.7A | Unshielded | 5.78mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
4426-1RCFIXED IND 2.5NH 3A SMD |
2,780 |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 2.5 nH | ±10% | 3 A | - | Unshielded | - | 145 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-2RCFIXED IND 5NH 3A SMD |
1,169 |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 5 nH | ±10% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-3RCFIXED IND 8NH 3A SMD |
4,503 |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 8 nH | ±5% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-4RCFIXED IND 12.5NH 3A SMD |
2,008 |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 12.5 nH | ±5% | 3 A | - | Unshielded | - | 137 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
4426-5RCFIXED IND 18.5NH 3A SMD |
3,534 |
|
Datasheet |
4426 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 18.5 nH | ±5% | 3 A | - | Unshielded | - | 132 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
