Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
511R-6JFIXED IND 240NH 1.935A 60MOHM TH |
4,484 |
|
Datasheet |
511R | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 240 nH | ±5% | 1.935 A | - | Unshielded | 60mOhm Max | 45 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
511R-7JFIXED IND 270NH 1.79A 70 MOHM TH |
1,679 |
|
Datasheet |
511R | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 270 nH | ±5% | 1.79 A | - | Unshielded | 70mOhm Max | 45 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
511R-8JFIXED IND 300NH 1.675A 80MOHM TH |
1,947 |
|
Datasheet |
511R | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 300 nH | ±5% | 1.675 A | - | Unshielded | 80mOhm Max | 45 @ 25MHz | 380MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
AX97-40102FIXED IND 1MH 650MA 1.45 OHM SMD |
3,698 |
|
Datasheet |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 650 mA | - | Unshielded | 1.45Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
BMMS00131360470MX2INDUCTOR POWER |
3,648 |
|
Datasheet |
BMMS | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.5 A | 5.5A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.559" L x 0.496" W (14.20mm x 12.60mm) | 0.236" (6.00mm) |
|
DR1050-391-RFIXED IND 390UH 760MA 810MOHM SM |
2,146 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±30% | 760 mA | 720mA | Shielded | 810mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR1050-181-RFIXED IND 180UH 1.18A 341MOHM SM |
2,789 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±30% | 1.18 A | 1.08A | Shielded | 341mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
|
DR1050-390-RFIXED IND 39UH 2.35A 75.9MOHM SM |
2,508 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 2.35 A | 2.35A | Shielded | 75.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
|
DR1050-561-RFIXED IND 560UH 620MA 1.213 OHM |
3,173 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±30% | 620 mA | 600mA | Shielded | 1.213Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

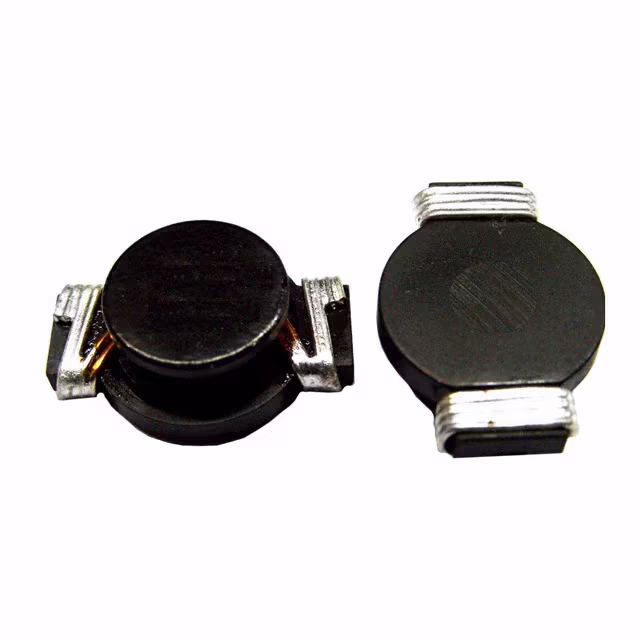

SC5022FH-100FIXED IND 10UH 6A 26 MOHM SMD |
3,343 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 6 A | 10A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-150FIXED IND 15UH 4.8A 32 MOHM SMD |
2,195 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.8 A | 8A | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-1R5FIXED IND 1.5UH 14.2A 4 MOHM SMD |
3,945 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 14.2 A | 25A | Unshielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-220FIXED IND 22UH 3.6A 50 MOHM SMD |
4,141 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.6 A | 7.6A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-2R2FIXED IND 2.2UH 12A 6.1 MOHM SMD |
3,869 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 12 A | 20A | Unshielded | 6.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-2R7FIXED IND 2.7UH 10A 8 MOHM SMD |
1,923 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±30% | 10 A | 18A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-3R3FIXED IND 3.3UH 9.4A 9 MOHM SMD |
1,010 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 9.4 A | 17A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-3R9FIXED IND 3.9UH 9A 10 MOHM SMD |
2,280 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 9 A | 15A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-4R7FIXED IND 4.7UH 8A 14 MOHM SMD |
3,370 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 8 A | 13A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-6R8FIXED IND 6.8UH 6.5A 18 MOHM SMD |
1,010 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.5 A | 12A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R47FIXED IND 470NH 20A 2 MOHM SMD |
1,943 |
|
Datasheet |
SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 20 A | 40A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
