Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0804T-3R3M-TFIXED IND 3.3UH 6.4A 15 MOHM SMD |
4,184 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.4 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-4R7M-TFIXED IND 4.7UH 5.4A 18 MOHM SMD |
2,216 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.4 A | - | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-6R8M-TFIXED IND 6.8UH 4.6A 27 MOHM SMD |
1,530 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.6 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-150M-TFIXED IND 15UH 3A 46 MOHM SMD |
4,002 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-181M-TFIXED IND 180UH 1A 520 MOHM SMD |
2,419 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1 A | - | Unshielded | 520mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-221M-TFIXED IND 220UH 800MA 610MOHM SM |
3,091 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 800 mA | - | Unshielded | 610mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-331M-TFIXED IND 330UH 600MA 1.02OHM SM |
3,197 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 600 mA | - | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
ASPI-0804T-471M-TFIXED IND 470UH 500MA 1.27OHM SM |
1,712 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | - | Unshielded | 1.27Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
CDRH8D28NP-7R3NCFIXED IND 7.3UH 3.4A 39 MOHM SMD |
1,971 |
|
Datasheet |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.3 µH | ±30% | 3.4 A | 2.8A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

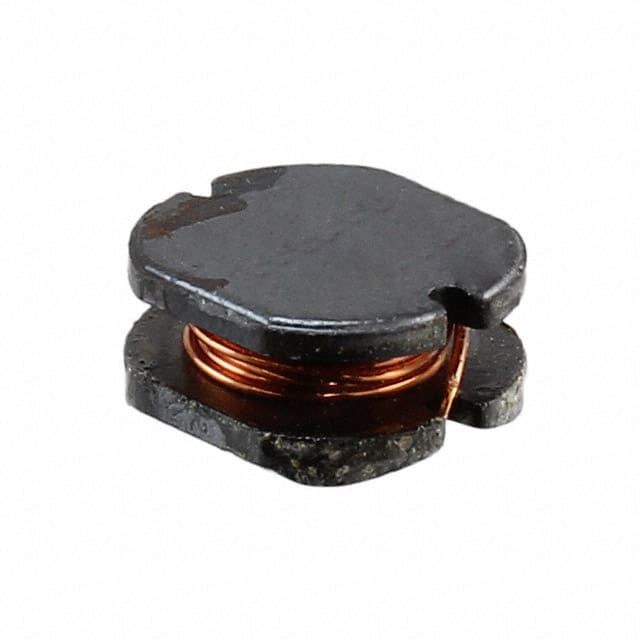

CD73NP-100MCFIXED IND 10UH 1.44A 80.3MOHM SM |
3,720 |
|
Datasheet |
CD73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 80.3mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.157" (4.00mm) |
|
|
CD73NP-151KCFIXED IND 150UH 400MA 755MOHM SM |
3,687 |
|
Datasheet |
CD73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 400 mA | - | Unshielded | 755mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.157" (4.00mm) |
|
CDRH8D28HPNP-3R3NCFIXED IND 3.3UH 3.8A 35 MOHM SMD |
2,276 |
|
Datasheet |
CDRH8D28/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 3.8 A | 6.5A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDRH8D28NP-1R0NCFIXED IND 1UH 7A 11 MOHM SMD |
3,320 |
|
Datasheet |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 7 A | 6.5A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
CDRH8D28NP-2R5NCFIXED IND 2.5UH 6.4A 15.6MOHM SM |
4,773 |
|
Datasheet |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.5 µH | ±30% | 6.4 A | 4.5A | Shielded | 15.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
CDRH8D28NP-470NCFIXED IND 47UH 1.3A 195 MOHM SMD |
4,907 |
|
Datasheet |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 1.3 A | 1.15A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDRH2D14NP-100NCFIXED IND 10UH 760MA 294MOHM SMD |
1,213 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 760 mA | 700mA | Shielded | 294mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
|
CDRH2D14NP-120NCFIXED IND 12UH 640MA 394MOHM SMD |
2,345 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 640 mA | 620mA | Shielded | 394mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
|
CDRH2D14NP-2R7NCFIXED IND 2.7UH 1.4A 106MOHM SMD |
3,089 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 1.4 A | 1.35A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
|
CDRH2D14NP-R21NCFIXED IND 210NH 4.74A 21MOHM SMD |
3,410 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±35% | 4.74 A | 3.8A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|
|
CDRH2D14NP-R82NCFIXED IND 820NH 2.85A 39MOHM SMD |
2,781 |
|
Datasheet |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±35% | 2.85 A | 2.1A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
