Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

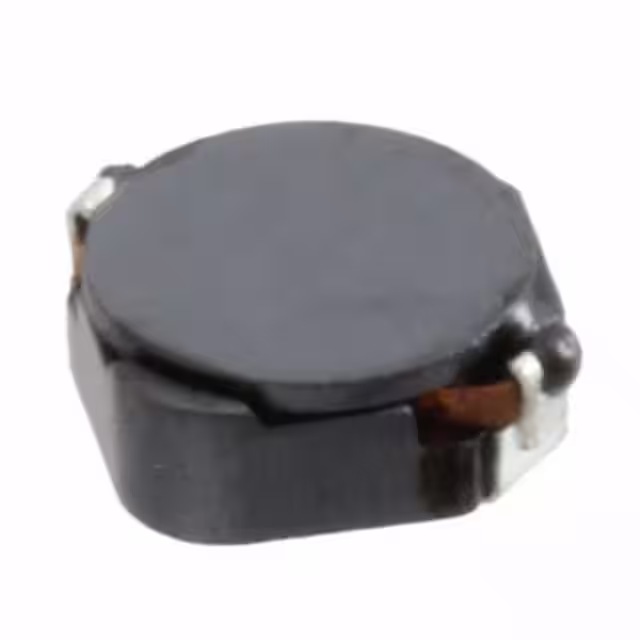

CDRH4D16FB/NP-1R3NCFIXED IND 1.3UH 2.8A 29.3MOHM SM |
2,169 |
|
Datasheet |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±25% | 2.8 A | 2.3A | Shielded | 29.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
CDRH4D16FB/NP-1R8NCFIXED IND 1.8UH 2.7A 34.5MOHM SM |
1,580 |
|
Datasheet |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±25% | 2.7 A | 1.9A | Shielded | 34.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
CDRH4D28CNP-220PCFIXED IND 22UH 850MA 207MOHM SMD |
4,392 |
|
Datasheet |
CDRH4D28C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±25% | 850 mA | - | Shielded | 207mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
CDRH4D28CLDNP-4R7PCFIXED IND 4.7UH 2.9A 36.3MOHM SM |
4,224 |
|
Datasheet |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2.9 A | 1.5A | Shielded | 36.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
CDRH4D28CLDNP-150PCFIXED IND 15UH 1.6A 93.4MOHM SMD |
2,942 |
|
Datasheet |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±25% | 1.6 A | 810mA | Shielded | 93.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
CDRH4D28CNP-1R1PCFIXED IND 1.1UH 3.8A 22 MOHM SMD |
1,041 |
|
Datasheet |
CDRH4D28C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.1 µH | ±25% | 3.8 A | - | Shielded | 22mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
|
CDRH4D28CLDNP-2R2PCFIXED IND 2.2UH 3.6A 23.8MOHM SM |
3,376 |
|
Datasheet |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±25% | 3.6 A | 2A | Shielded | 23.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
CDRH2D18/HPNP-R20NCFIXED IND 200NH 4.7A 22 MOHM SMD |
4,760 |
|
Datasheet |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±35% | 4.7 A | 5.35A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
ETQ-P1W4R7WFPFIXED IND 4.7UH 2.2A 168MOHM SMD |
4,673 |
|
Datasheet |
PCC-M0512W (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 2.2 A | - | Shielded | 168mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|

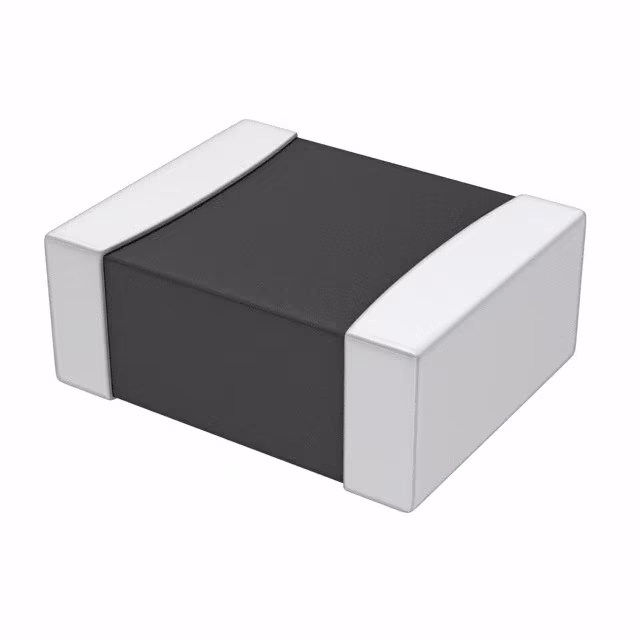

74479787233AFIXED IND 3.3UH 1.6A 100MOHM SMD |
4,083 |
|
Datasheet |
WE-PMI | Nonstandard | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 3.3 µH | ±20% | 1.6 A | 400mA | Unshielded | 100mOhm | 25 @ 1MHz | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CDRH50D28BT150NP-680MCFIXED IND 68UH 650MA 630MOHM SMD |
1,399 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 650 mA | 670mA | Shielded | 630mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
EXL1V0603-1R8-RFIXED IND 1.8UH 14A 10.2MOHM SMD |
1,744 |
|
Datasheet |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.8 µH | ±20% | 14 A | 13A | Shielded | 10.2mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
EXL1V0603-R18-RFIXED IND 180NH 32A 1.75MOHM SMD |
3,527 |
|
Datasheet |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 180 nH | ±20% | 32 A | 36A | Shielded | 1.75mOhm Max | - | 143MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
TLP1013V1-R120-RTRANS IND, 120NH, 94A, 4 PADS |
3,400 |
|
Datasheet |
TLP1013V1 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±10% | 72 A | 76A | Unshielded | 0.53mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.518" (13.15mm) |
|
|
4426R-3RCFIXED IND 8NH 3A SMD |
1,420 |
|
Datasheet |
4426R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 8 nH | ±5% | 3 A | - | Unshielded | - | 140 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.125" W (3.68mm x 3.18mm) | 0.120" (3.05mm) |
|
PA5005.821NLTFIXED IND 820NH 21A 4.18MOHM SMD |
3,901 |
|
Datasheet |
PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 820 nH | ±20% | 21 A | 24A | Shielded | 4.18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
PA5005.432NLTFIXED IND 4.3UH 9A 16.2 MOHM SMD |
2,245 |
|
Datasheet |
PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.3 µH | ±20% | 9 A | 11A | Shielded | 16.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
PA5007.152NLTFIXED IND 1.5UH 15.3A 8.25 MOHM |
2,523 |
|
Datasheet |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 15.3 A | 25A | Shielded | 8.25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
PA5007.272NLTFIXED IND 2.7UH 11.4A 15.4 MOHM |
4,881 |
|
Datasheet |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 µH | ±20% | 11.4 A | 16A | Shielded | 15.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
PA5007.472NLTFIXED IND 4.7UH 9A 26.7 MOHM SMD |
3,837 |
|
Datasheet |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 4.7 µH | ±20% | 9 A | 13.5A | Shielded | 26.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
