Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-301R5FIXED IND 1.5UH 7.9A 10 MOHM SMD |
1,974 |
|
Datasheet |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 7.9 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
CTMC2220F-103J10000UH FERRITE WW CHIP INDUCTOR |
4,069 |
|
Datasheet |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 10 mH | ±5% | 25 mA | - | Unshielded | 150Ohm Max | 15 @ 796kHz | 500kHz | - | -25°C ~ 85°C | 79.6 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
VLF3010ST-1R0N1R7FIXED IND 1UH 1.7A 49 MOHM SMD |
1,922 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.7 A | - | Shielded | 49mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|
|
VLF3010ST-2R2M1R1FIXED IND 2.2UH 1.1A 92 MOHM SMD |
2,691 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.1 A | - | Shielded | 92mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|
|
VLF3010ST-4R7MR75FIXED IND 4.7UH 750MA 180MOHM SM |
2,688 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | - | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|
|
VLF3010ST-100MR53FIXED IND 10UH 530MA 490MOHM SMD |
4,367 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 530 mA | - | Shielded | 490mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|
|
VLF3010ST-150MR38FIXED IND 15UH 380MA 610MOHM SMD |
4,770 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 380 mA | - | Shielded | 610mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|
|
VLF3010ST-220MR34FIXED IND 22UH 340MA 970MOHM SMD |
1,753 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 340 mA | - | Shielded | 970mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.039" (1.00mm) |
|

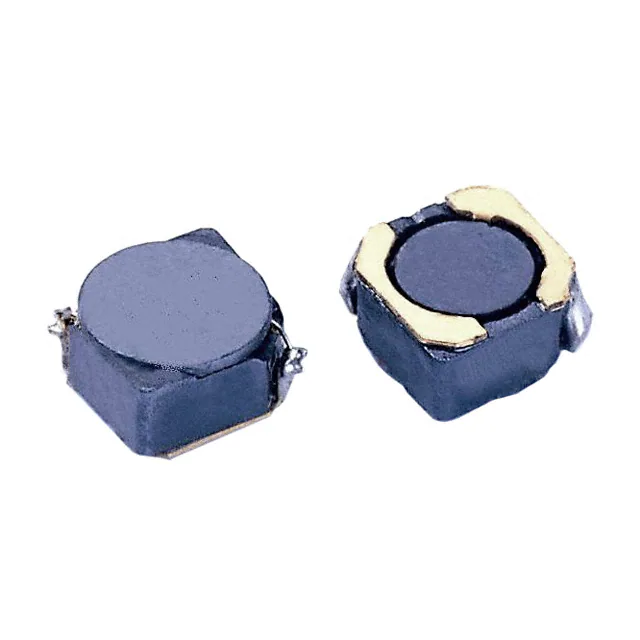

SCRH5D28-220FIXED IND 22UH 1.7A 122 MOHM SMD |
1,452 |
|
Datasheet |
SCRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 1.7 A | 860mA | Shielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.118" (3.00mm) |
|

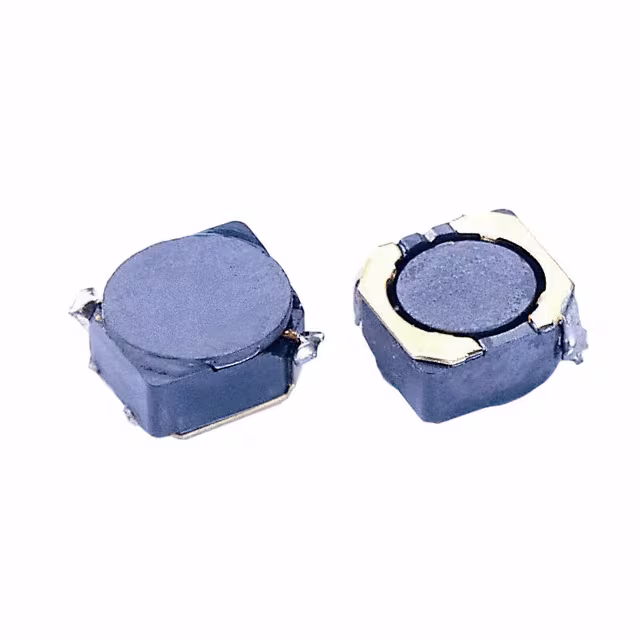

SCRH6D28-101FIXED IND 100UH 540MA 535MOHM SM |
1,004 |
|
Datasheet |
SCRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 540 mA | 540mA | Shielded | 535mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|

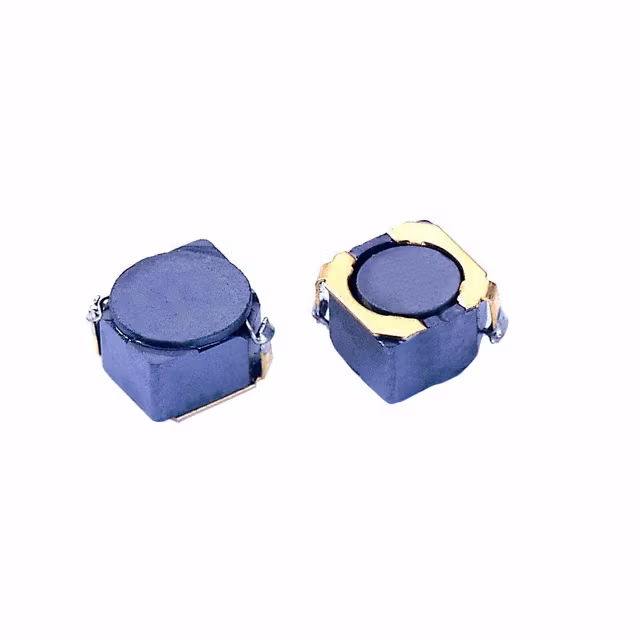

SCRH6D38-100FIXED IND 10UH 2A 38 MOHM SMD |
3,666 |
|
Datasheet |
SCRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2 A | 2A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
SRU6025A-1R2YFIXED IND 1.2UH 4A 19 MOHM SMD |
2,316 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 4 A | 3.2A | Shielded | 19mOhm Max | 8 @ 7.96MHz | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-2R2YFIXED IND 2.2UH 3.4A 24 MOHM SMD |
3,582 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.4 A | 2.35A | Shielded | 24mOhm Max | 8 @ 7.96MHz | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-3R3YFIXED IND 3.3UH 3.2A 27 MOHM SMD |
1,963 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.2 A | 2A | Shielded | 27mOhm Max | 8 @ 7.96MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-4R7YFIXED IND 4.7UH 2.7A 35 MOHM SMD |
2,070 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 1.55A | Shielded | 35mOhm Max | 8 @ 7.96MHz | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-6R8YFIXED IND 6.8UH 2.4A 42 MOHM SMD |
3,460 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.4 A | 1.3A | Shielded | 42mOhm Max | 8 @ 7.96MHz | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-8R2YFIXED IND 8.2UH 2.2A 52 MOHM SMD |
2,092 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.2 A | 1.25A | Shielded | 52mOhm Max | 8 @ 7.96MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-100YFIXED IND 10UH 2A 57 MOHM SMD |
3,080 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2 A | 1.05A | Shielded | 57mOhm Max | 12 @ 2.52MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-150YFIXED IND 15UH 1.8A 86 MOHM SMD |
4,127 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.8 A | 920mA | Shielded | 86mOhm Max | 12 @ 2.52MHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-220YFIXED IND 22UH 1.6A 130 MOHM SMD |
2,392 |
|
Datasheet |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.6 A | 700mA | Shielded | 130mOhm Max | 12 @ 2.52MHz | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
