Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMMA00131350R82MV1INDUCTOR POWER |
2,719 |
|
Datasheet |
BMMA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
38S451CFIXED IND 450NH 16A 2.6 MOHM SMD |
3,929 |
|
Datasheet |
3800 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 450 nH | ±20% | 16 A | 27A | Unshielded | 2.6mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
38S801CFIXED IND 800NH 12.5A 3.7MOHM SM |
2,488 |
|
Datasheet |
3800 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 800 nH | ±20% | 12.5 A | 20A | Unshielded | 3.7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
38H152CFIXED IND 1.5UH 7.2A 9.5MOHM SMD |
3,652 |
|
Datasheet |
3800 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.2 A | 14A | Unshielded | 9.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
38H252CFIXED IND 2.5UH 5.5A 15.1MOHM SM |
1,798 |
|
Datasheet |
3800 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±20% | 5.5 A | 11A | Unshielded | 15.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
CDRH127NP-181MCFIXED IND 180UH 1.3A 350MOHM SMD |
1,034 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.3 A | - | Shielded | 350mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-1R2NCFIXED IND 1.2UH 9.8A 7 MOHM SMD |
2,775 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | -20%, +40% | 9.8 A | - | Shielded | 7mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-271MCFIXED IND 270UH 1.06A 560MOHM SM |
1,775 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 1.06 A | - | Shielded | 560mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-2R4NCFIXED IND 2.4UH 8A 11.5 MOHM SMD |
3,549 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.4 µH | -20%, +40% | 8 A | - | Shielded | 11.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-391MCFIXED IND 390UH 880MA 700MOHM SM |
3,420 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 390 µH | ±20% | 880 mA | - | Shielded | 700mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-561MCFIXED IND 560UH 730MA 1.07OHM SM |
1,456 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 730 mA | - | Shielded | 1.07Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-681MCFIXED IND 680UH 670MA 1.46OHM SM |
4,020 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 670 mA | - | Shielded | 1.46Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-821MCFIXED IND 820UH 600MA 1.64OHM SM |
2,732 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 600 mA | - | Shielded | 1.64Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
HCM1A1105V2-3R3-RFIXED IND 3.3UH 9.5A 10.7MOHM SM |
4,600 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 9.5 A | 16A | Shielded | 10.7mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-5R6-RFIXED IND 5.6UH 8A 16.5 MOHM SMD |
1,807 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 8 A | 12A | Shielded | 16.5mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-330-RFIXED IND 33UH 3.5A 84 MOHM SMD |
2,232 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 3.5 A | 3.5A | Shielded | 84mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-2R8-RFIXED IND 2.8UH 12A 6 MOHM SMD |
4,742 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.8 µH | ±20% | 12 A | 18A | Shielded | 6mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-1R2-RFIXED IND 1.2UH 21A 2.4 MOHM SMD |
4,012 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 21 A | 21A | Shielded | 2.4mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
10M240MMOLDED UNSHIELDED RF COILS AXIAL |
4,835 |
|
Datasheet |
10M | Axial | Tape & Reel (TR) | Active | Wirewound | Phenolic | 240 nH | ±20% | 986 mA | - | Unshielded | 150mOhm Max | 33 @ 25MHz | 475MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

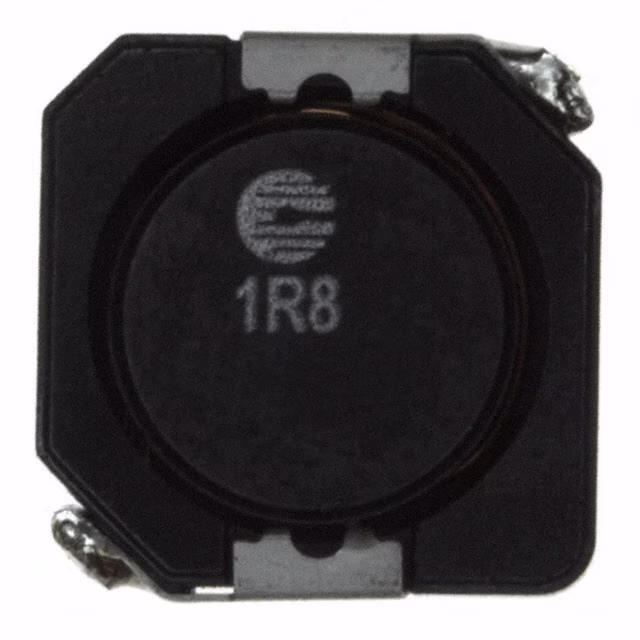

DR1030-1R8-RFIXED IND 1.8UH 5.9A 11 MOHM SMD |
3,140 |
|
Datasheet |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 5.9 A | 7.41A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
