Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF10040T-2R2NFIXED IND 2.2UH 5A 12.61MOHM SMD |
3,657 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5 A | 7.5A | Shielded | 12.61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-3R3NFIXED IND 3.3UH 4.8A 14.3MOHM SM |
2,531 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.8 A | 6.6A | Shielded | 14.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-4R7NFIXED IND 4.7UH 4.2A 18.85 MOHM |
4,684 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.2 A | 5.4A | Shielded | 18.85mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-6R8NFIXED IND 6.8UH 3.7A 24.05 MOHM |
2,827 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4.8A | Shielded | 24.05mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-470MFIXED IND 47UH 1.3A 150 MOHM SMD |
3,082 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.9A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-680MFIXED IND 68UH 1.1A 216 MOHM SMD |
1,931 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.6A | Shielded | 216mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-101MFIXED IND 100UH 1A 288 MOHM SMD |
3,409 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.3A | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-151MFIXED IND 150UH 800MA 456MOHM SM |
2,253 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 1A | Shielded | 456mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-221MFIXED IND 220UH 700MA 624MOHM SM |
4,038 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 880mA | Shielded | 624mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-331MFIXED IND 330UH 530MA 1.032 OHM |
4,431 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 530 mA | 700mA | Shielded | 1.032Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-471MFIXED IND 470UH 440MA 1.452 OHM |
1,044 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 440 mA | 560mA | Shielded | 1.452Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|

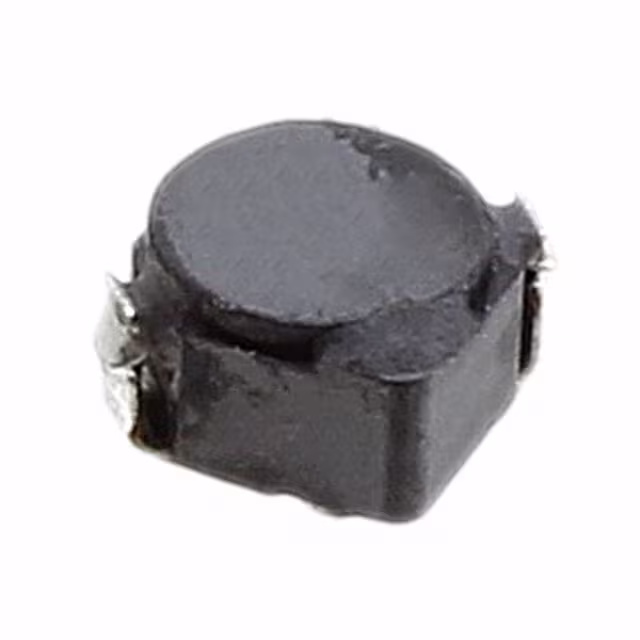

CDRH30D18SNP-220NCFIXED IND 22UH 480MA 610MOHM SMD |
2,924 |
|
Datasheet |
CDRH30D18/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±25% | 480 mA | 550mA | Shielded | 610mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

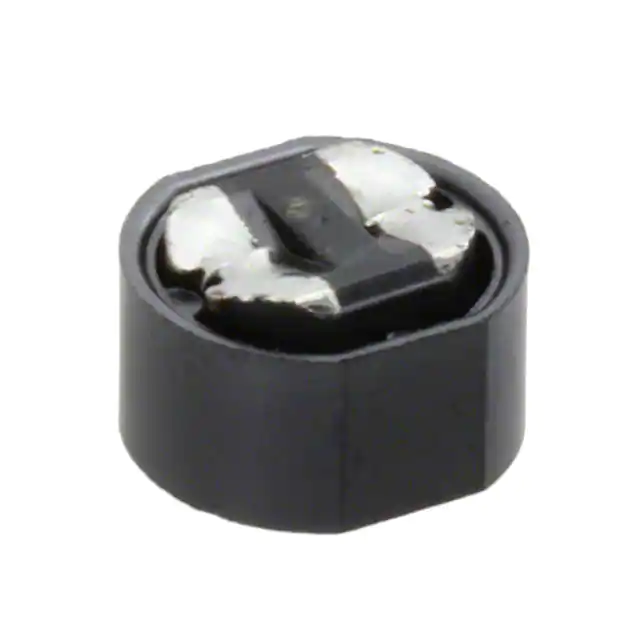

CDR74NP-101MCFIXED IND 100UH 520MA 540MOHM SM |
2,492 |
|
Datasheet |
CDR74 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 µH | -15%, +20% | 520 mA | - | Shielded | 540mOhm Max | - | 8.59MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.303" L x 0.280" W (7.70mm x 7.10mm) | 0.191" (4.85mm) |
|
|
CLF10040T-1R0NFIXED IND 1UH 6.3A 5.7 MOHM SMD |
2,686 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.3 A | 12A | Shielded | 5.7mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
VLF252012MT-R68N-CAFIXED IND 680NH 3.04A 38MOHM SMD |
4,955 |
|
Datasheet |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 3.04 A | 1.72A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
HCMA0503-R35-RFIXED IND 350NH 16.6A 4.29 MOHM |
3,716 |
|
Datasheet |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 350 nH | ±20% | 16.6 A | 14.9A | Shielded | 4.29mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
RL1011-152-RFIXED IND 1.5MH 324MA 3 OHM TH |
2,717 |
|
Datasheet |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 324 mA | 390mA | Unshielded | 3Ohm Max | - | 1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|

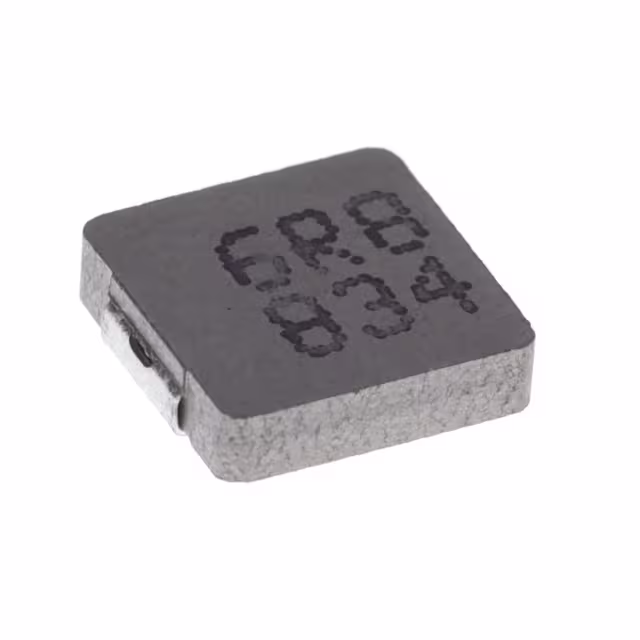

0618CDMCCDS-6R8MCFIXED IND 6.8UH 3A 110 MOHM SMD |
1,439 |
|
Datasheet |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 3 A | 5A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
0618CDMCCDS-100MCFIXED IND 10UH 2.3A 165MOHM SMD |
2,043 |
|
Datasheet |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 2.3 A | 3.4A | Shielded | 165mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
0618CDMCCDS-8R2MCFIXED IND 8.2UH 2.6A 142MOHM SMD |
4,897 |
|
Datasheet |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 2.6 A | 4A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
