Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF252015MT-1R0NFIXED IND 1UH 3.13A 30 MOHM SMD |
2,730 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.13 A | 1.34A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
CLF6045T-470M-HFIXED IND 47UH 1.3A 130 MOHM SMD |
1,408 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 900mA | Shielded | 130mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|
IMC1812ES1R2JFIXED IND 1.2UH 430MA 550MOHM SM |
2,630 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±5% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812ES4R7JFIXED IND 4.7UH 315MA 1 OHM SMD |
1,268 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±5% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

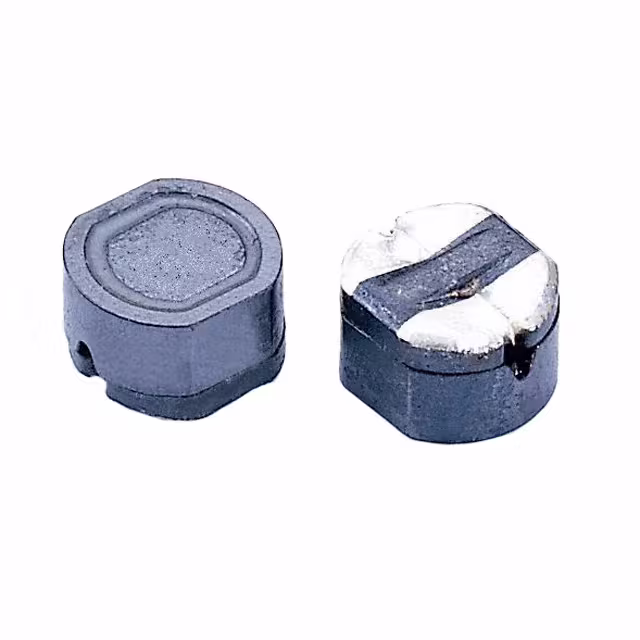

SCR74B-100FIXED IND 10UH 3.3A 70 MOHM SMD |
1,452 |
|
Datasheet |
SCR74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.3 A | 1.65A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 kHz | - | Surface Mount | - | 0.327" L x 0.295" W (8.30mm x 7.50mm) | 0.197" (5.00mm) |
|
ELL-8TPR80NBFIXED IND 800NH 9A 3.6 MOHM SMD |
2,457 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 800 nH | ±30% | 9 A | 9.5A | Shielded | 3.6mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP1R2NBFIXED IND 1.2UH 8A 4.7 MOHM SMD |
2,928 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±30% | 8 A | 8.5A | Shielded | 4.7mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP3R3NBFIXED IND 3.3UH 4.2A 13 MOHM SMD |
2,272 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 4.2 A | 5A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP100MBFIXED IND 10UH 3A 25 MOHM SMD |
1,576 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3 A | 3A | Shielded | 25mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP470MBFIXED IND 47UH 1.5A 100 MOHM SMD |
4,062 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.5 A | 1.4A | Shielded | 100mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP680MBFIXED IND 68UH 1.3A 140 MOHM SMD |
2,584 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.3 A | 1A | Shielded | 140mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP820MBFIXED IND 82UH 1.15A 170MOHM SMD |
3,734 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 1.15 A | 950mA | Shielded | 170mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP101MBFIXED IND 100UH 1.1A 190MOHM SMD |
1,919 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.1 A | 900mA | Shielded | 190mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP151MBFIXED IND 150UH 800MA 340MOHM SM |
1,392 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 µH | ±20% | 800 mA | 700mA | Shielded | 340mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP221MBFIXED IND 220UH 700MA 480MOHM SM |
4,204 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 700 mA | 550mA | Shielded | 480mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP331MBFIXED IND 330UH 570MA 700MOHM SM |
3,845 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±20% | 570 mA | 450mA | Shielded | 700mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP471MBFIXED IND 470UH 480MA 1 OHM SMD |
1,615 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±20% | 480 mA | 400mA | Shielded | 1Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP681MBFIXED IND 680UH 430MA 1.3OHM SMD |
3,540 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 430 mA | 300mA | Shielded | 1.3Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP102MBFIXED IND 1MH 330MA 2.1 OHM SMD |
3,857 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 mH | ±20% | 330 mA | 250mA | Shielded | 2.1Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|

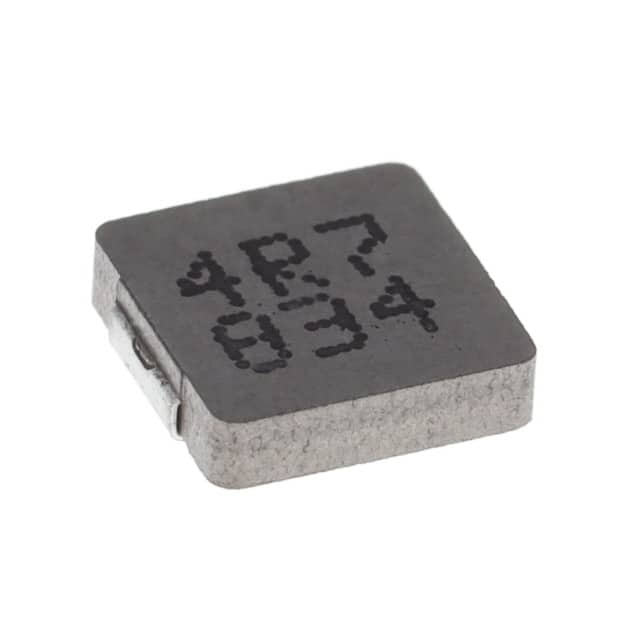

0618CDMCCDS-4R7MCFIXED IND 4.7UH 4A 62 MOHM SMD |
3,665 |
|
Datasheet |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 4 A | 6.3A | Shielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
