Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF252012MT-2R2MFIXED IND 2.2UH 1.67A 100MOHM SM |
2,318 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.67 A | 940mA | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLF252012MT-3R3MFIXED IND 3.3UH 1.39A 150MOHM SM |
1,426 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.39 A | 700mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLF252012MT-4R7MFIXED IND 4.7UH 1.09A 220MOHM SM |
3,178 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.09 A | 620mA | Shielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLF252012MT-R68NFIXED IND 680NH 3.04A 38MOHM SMD |
2,612 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 3.04 A | 1.55A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
PA4340.153NLTFIXED IND 15UH 2.1A 190 MOHM SMD |
2,528 |
|
Datasheet |
PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 2.6A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-R56MCFIXED IND 560NH 18.8A 4.5MOHM SM |
3,802 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 18.8 A | 20.5A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0630CDMCCDS-R82MCFIXED IND 820NH 14.8A 6MOHM SMD |
2,429 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 14.8 A | 19.5A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0630CDMCDDS-R75MCFIXED IND 750NH SMD |
3,737 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 750 nH | ±20% | 17.5 A | 21A | Shielded | 6.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0630CDMCDDS-1R0MCFIXED IND 1UH 14.4A 7.4MOHM SMD |
2,400 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 13 A | 18.7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

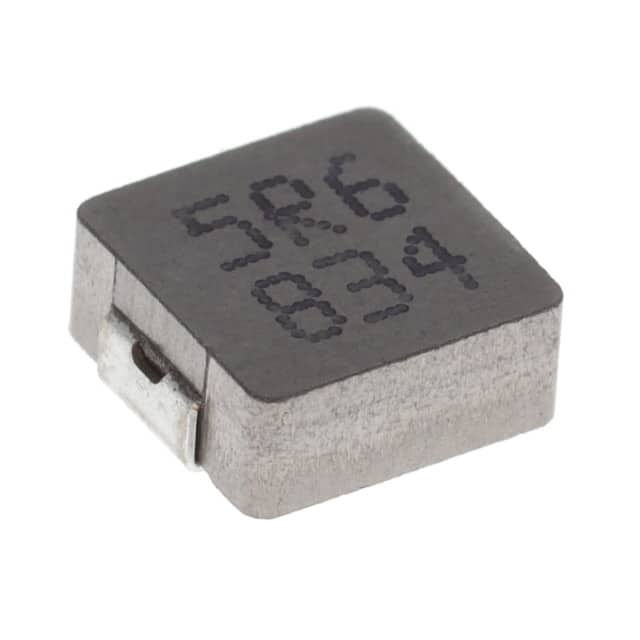

0630CDMCCDS-5R6MCFIXED IND 5.6UH 5.2A 43MOHM SMD |
3,791 |
|
Datasheet |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 5.2 A | 5.5A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SPRH73-470MSMD POWER INDUCTOR |
2,753 |
|
Datasheet |
SPRH73 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 9.4 µH | ±20% | 1.23 A | 1.3A | Shielded | 298mOhm Max | - | - | - | -40°C ~ 125°C | - | Drum Core, Power Inductor | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.130" (3.30mm) | |
|
|
SPQ104-100MSMD POWER INDUCTOR |
1,395 |
|
Datasheet |
SPQ104 | 2-SMD | Active | Drum Core, Wirewound | Ferrite | 9.3 µH | ±20% | 3.95 A | 4.46A | Shielded | 33.6mOhm Max | - | - | - | -40°C ~ 125°C | - | Drum Core, Power Inductor | Surface Mount | - | 0.409" L x 0.402" W (10.40mm x 10.20mm) | 0.149" (3.80mm) | |
|
|
TL1012V2-R150-RTRANS IND, 150NH, 75A, 4 PADS |
1,717 |
|
Datasheet |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±10% | 75 A | 58A | Unshielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
TL1012V2-R170-RTRANS IND, 170NH, 66A, 4 PADS |
3,400 |
|
Datasheet |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 170 nH | ±10% | 75 A | 51A | Unshielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
RCP195DNP-153KFIXED IND 15MH 75MA 16.8 OHM TH |
2,851 |
|
- |
RCP-195D | Radial, Vertical Cylinder | Tape & Reel (TR) | Obsolete | - | - | 15 mH | ±10% | 75 mA | 33mA | Shielded | 16.8Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
PA5002.161NLTFIXED IND 160NH 18.8A 4.6MOHM SM |
3,053 |
|
Datasheet |
PA5002.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 160 nH | ±20% | 18.8 A | 30A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.083" (2.10mm) |
|
|
PA5002.681NLTFIXED IND 680NH 13.4A 10.2 MOHM |
1,713 |
|
Datasheet |
PA5002.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 680 nH | ±20% | 13.4 A | 16A | Shielded | 10.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.083" (2.10mm) |
|
|
PA5002.801NLTFIXED IND 800NH 13A 11.8MOHM SMD |
2,405 |
|
Datasheet |
PA5002.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 800 nH | ±20% | 13 A | 15.5A | Shielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.083" (2.10mm) |
|
|
PA5003.151NLTFIXED IND 150NH 22.2A 2.31 MOHM |
1,887 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 150 nH | ±20% | 22.2 A | 36A | Shielded | 2.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PA5003.161NLTFIXED IND 160NH 22.2A 2.33 MOHM |
1,221 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 160 nH | ±20% | 22.2 A | 35A | Shielded | 2.33mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
