Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR54NP-680KCFIXED IND 68UH 610MA 460MOHM SMD |
2,684 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 610 mA | - | Unshielded | 460mOhm Max | - | 11.7MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CR54NP-151KCFIXED IND 150UH 400MA 1.1OHM SMD |
1,958 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 400 mA | - | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CR54NP-270MCFIXED IND 27UH 970MA 200MOHM SMD |
4,736 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 970 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CR54NP-2R7MCFIXED IND 2.7UH 3.44A 26MOHM SMD |
4,806 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3.44 A | - | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CR54NP-3R3MCFIXED IND 3.3UH 3.2A 28.6MOHM SM |
4,822 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.2 A | - | Unshielded | 28.6mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CR54NP-7R6MCFIXED IND 7.6UH 2.08A 62.4 MOHM |
4,693 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.6 µH | ±20% | 2.08 A | - | Unshielded | 62.4mOhm Max | - | 19.6MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|

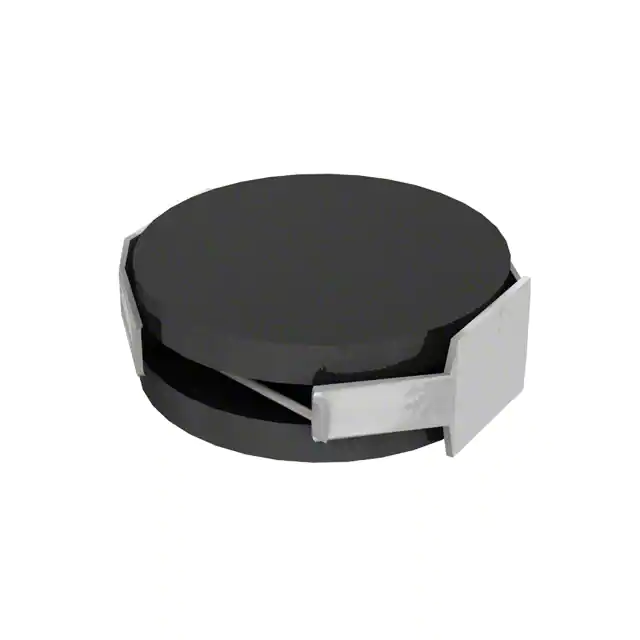

CDH2D09BNP-4R7MCFIXED IND 4.7UH 850MA 273MOHM SM |
4,001 |
|
Datasheet |
CDH2D09B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 850 mA | 700mA | Unshielded | 273mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.112" L x 0.106" W (2.85mm x 2.70mm) | 0.039" (1.00mm) |
|

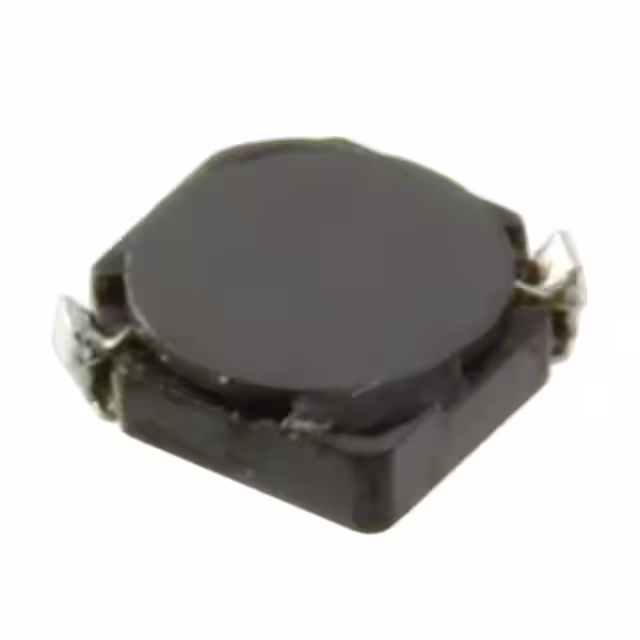

CDRH3D11NP-100NCFIXED IND 10UH 900MA 240MOHM SMD |
4,927 |
|
Datasheet |
CDRH3D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 900 mA | 280mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

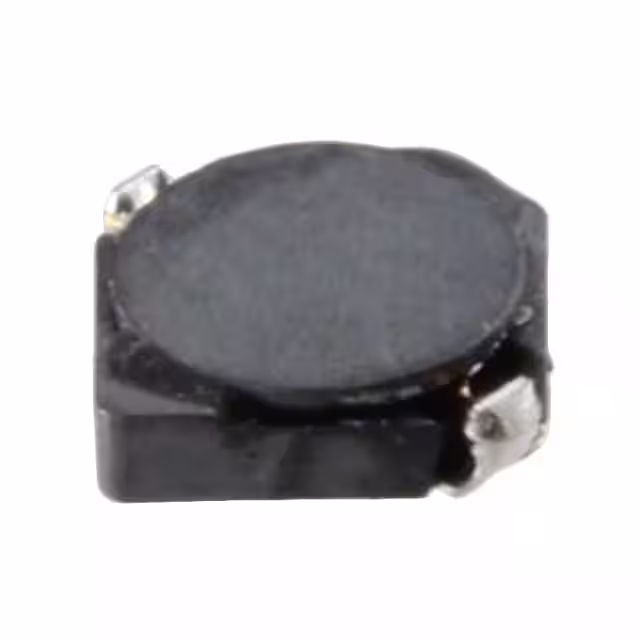

CDRH3D11NP-4R7NCFIXED IND 4.7UH 1.38A 123MOHM SM |
3,632 |
|
Datasheet |
CDRH3D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 1.38 A | 400mA | Shielded | 123mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
VLF252010MT-100MFIXED IND 10UH 660MA 590MOHM SMD |
2,380 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 660 mA | 390mA | Shielded | 590mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-150MFIXED IND 15UH 530MA 870MOHM SMD |
4,006 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 530 mA | 310mA | Shielded | 870mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-1R0NFIXED IND 1UH 2.25A 59 MOHM SMD |
3,888 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.25 A | 1.27A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-220MFIXED IND 22UH 450MA 1.26OHM SMD |
2,422 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 260mA | Shielded | 1.26Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-2R2MFIXED IND 2.2UH 1.47A 120MOHM SM |
3,449 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.47 A | 830mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-3R3MFIXED IND 3.3UH 1.15A 190MOHM SM |
4,979 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.15 A | 680mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-4R7MFIXED IND 4.7UH 950MA 300MOHM SM |
1,548 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 950 mA | 570mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-6R8MFIXED IND 6.8UH 850MA 360MOHM SM |
3,803 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 470mA | Shielded | 360mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-R47NFIXED IND 470NH 3.35A 29MOHM SMD |
1,372 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.35 A | 1.84A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLF252010MT-R68NFIXED IND 680NH 2.7A 43 MOHM SMD |
2,450 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.7 A | 1.53A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
FDSD0518-H-1R0M=P3FIXED IND 1UH 6.1A 21 MOHM SMD |
3,137 |
|
Datasheet |
FDSD0518 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 6.1 A | 8.7A | Shielded | 21mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.071" (1.80mm) |
