Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APMV00100612R15M0EINDUCTOR POWER |
2,226 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±20% | 77 A | 83A | Shielded | 0.125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
APMV00100612R12M0EINDUCTOR POWER |
1,856 |
|
Datasheet |
APMV | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±20% | 77 A | 105A | Shielded | 0.125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
CDRH40D18ANP-330NCFIXED IND 33UH 370MA 1.175OHM SM |
1,602 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 370 mA | 310mA | Shielded | 1.175Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-3R3NCFIXED IND 3.3UH 1.45A 0.108OHM |
1,443 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.45 A | 1.1A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-470NCFIXED IND 47UH 350MA 1.5OHM SMD |
1,408 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 350 mA | 280mA | Shielded | 1.5Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-150NCFIXED IND 15UH 650MA 0.428OHM SM |
1,714 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 650 mA | 490mA | Shielded | 428mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-6R8NCFIXED IND 6.8UH 990MA 0.205OHM |
3,345 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 990 mA | 730mA | Shielded | 205mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-2R2NCFIXED IND 2.2UH 1.82A 0.063OHM |
2,584 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.82 A | 1.36A | Shielded | 63mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-100NCFIXED IND 10UH 720MA 0.338OHM SM |
1,887 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 720 mA | 590mA | Shielded | 338mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-220NCFIXED IND 22UH 570MA 0.615OHM SM |
4,683 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 570 mA | 410mA | Shielded | 615mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|
|
CDRH40D18ANP-4R7NCFIXED IND 4.7UH 1.34A 0.128OHM |
4,752 |
|
Datasheet |
CDRH40D18/A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.34 A | 840mA | Shielded | 128mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.177" W (4.50mm x 4.50mm) | 0.079" (2.00mm) |
|

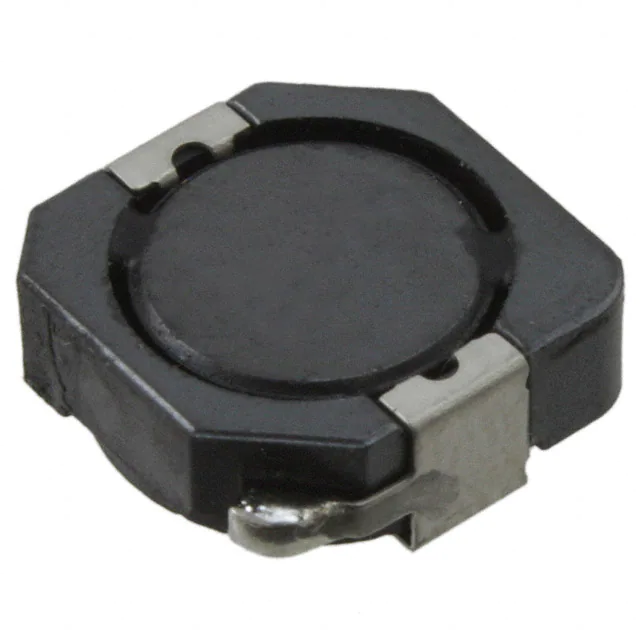

LMXS101DN100LTASFIXED IND 10UH 4.4A 35 MOHM SMD |
4,714 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.4 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
LMXS101DN220LTASFIXED IND 22UH 2.9A 73 MOHM SMD |
4,314 |
|
Datasheet |
LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.9 A | - | Shielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
LD2-100-RFIXED IND 10UH 3.83A 70 MOHM SMD |
2,428 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.83 A | 3.45A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-121-RFIXED IND 120UH 1.43A 470MOHM SM |
2,199 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.43 A | 1.09A | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-150-RFIXED IND 15UH 3.38A 90 MOHM SMD |
2,711 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.38 A | 2.85A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-180-RFIXED IND 18UH 3.19A 100MOHM SMD |
1,957 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.19 A | 2.6A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-181-RFIXED IND 180UH 1.15A 710MOHM SM |
4,653 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.15 A | 870mA | Unshielded | 710mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LD2-220-RFIXED IND 22UH 3.13A 110MOHM SMD |
4,394 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.13 A | 2.45A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LD2-270-RFIXED IND 27UH 2.81A 120MOHM SMD |
3,014 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.81 A | 2.1A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
