Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4346.562NLTFIXED IND 5.6UH 11.5A 16.5 MOHM |
4,310 |
|
Datasheet |
PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 11.5 A | 22A | Unshielded | 16.5mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
CDRH80D38DNP-151MCINDUCTOR |
1,699 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 880 mA | 950mA | Shielded | 470mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-680MCINDUCTOR |
2,563 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.22 A | 1.35A | Shielded | 245mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-221MCINDUCTOR |
2,722 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 750mA | Shielded | 705mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-470MCINDUCTOR |
4,918 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.6A | Shielded | 160mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-100MCINDUCTOR |
3,428 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.5 A | 3.65A | Shielded | 35mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-3R3PCINDUCTOR |
1,383 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±25% | 6.3 A | 6.3A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-2R2PCINDUCTOR |
3,634 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±25% | 6.9 A | 7.8A | Shielded | 10mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-1R0PCINDUCTOR |
1,023 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 9.3 A | 11.55A | Shielded | 7mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-1R5PCINDUCTOR |
1,211 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±25% | 7.7 A | 9.35A | Shielded | 9mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-4R7PCINDUCTOR |
1,986 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±25% | 5.6 A | 5.2A | Shielded | 16mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-101MCINDUCTOR |
1,298 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.09 A | 1.15A | Shielded | 310mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-150MCINDUCTOR |
3,532 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3 A | 2.95A | Shielded | 47mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-220MCINDUCTOR |
4,769 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.6 A | 2.4A | Shielded | 65mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-330MCINDUCTOR |
4,248 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2 A | 1.95A | Shielded | 105mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
CDRH80D38DNP-6R8MCINDUCTOR |
1,935 |
|
Datasheet |
CDRH80D38D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.1 A | 4.25A | Shielded | 26mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.165" (4.20mm) |
|
|
SL1012V2-R170-RSL IND 170NH 64A 0.125M 2PADS SM |
3,930 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SL1012V2-R150-RSL IND 150NH 73A 0.125M 2PADS SM |
4,847 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SC5022C-100FIXED IND 10UH 5A 40 MOHM SMD |
3,443 |
|
Datasheet |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 8A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
|
|

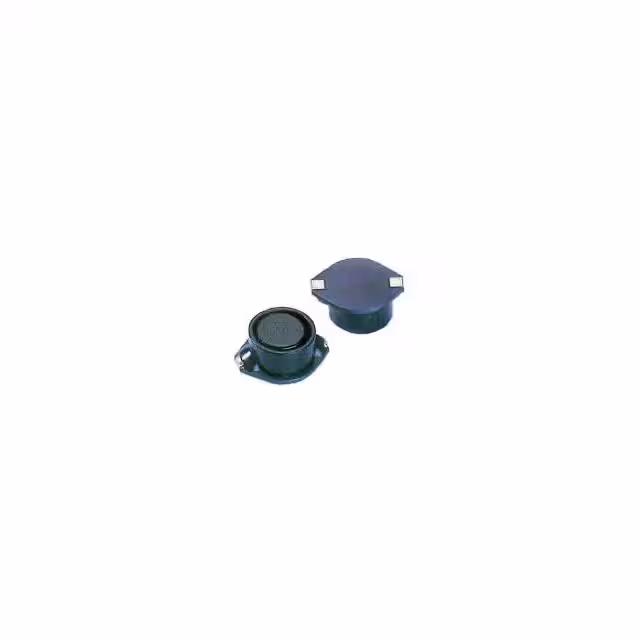

SC5022C-101FIXED IND 100UH 1.8A 207MOHM SMD |
1,675 |
|
Datasheet |
SC5022C | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 2.4A | Shielded | 207mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.300" (7.62mm) |
