Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

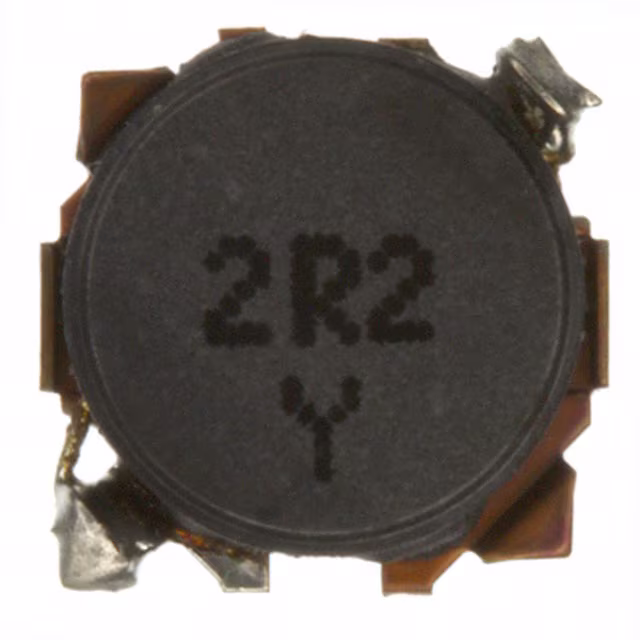

ELL-6GG2R2MFIXED IND 2.2UH 2A 45 MOHM SMD |
2,577 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 2 A | 1.95A | Shielded | 45mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|

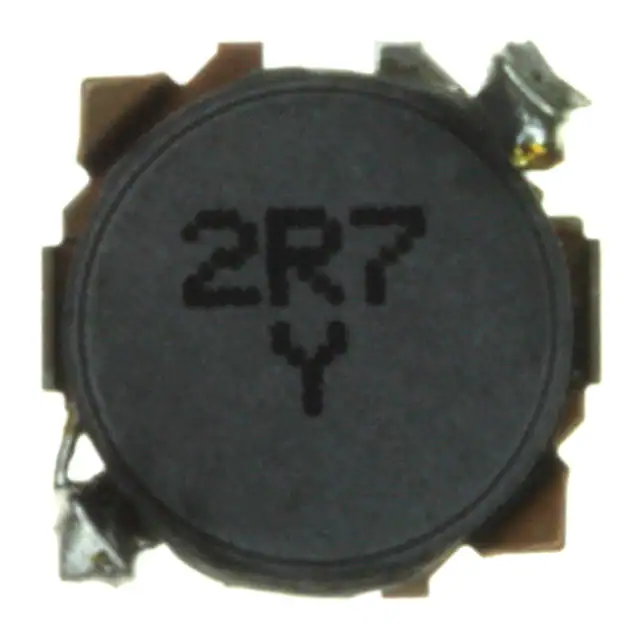

ELL-6GG2R7MFIXED IND 2.7UH 1.8A 54 MOHM SMD |
1,854 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±20% | 1.8 A | 1.85A | Shielded | 54mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|

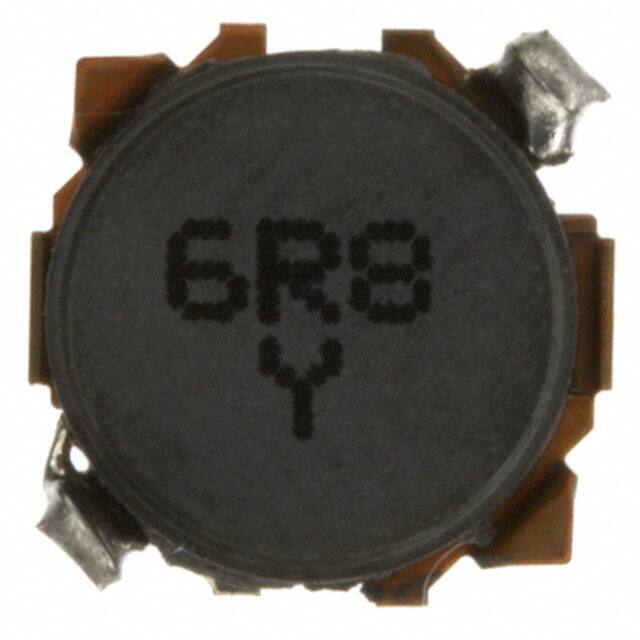

ELL-6GG6R8MFIXED IND 6.8UH 1.3A 110MOHM SMD |
4,542 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 1.3 A | 1.15A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
ASPI-0428S-150M-TFIXED IND 15UH 760MA 149MOHM SMD |
4,145 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 760 mA | - | Shielded | 149mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-180M-TFIXED IND 18UH 720MA 166MOHM SMD |
2,102 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 720 mA | - | Shielded | 166mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-220M-TFIXED IND 22UH 700MA 235MOHM SMD |
1,076 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | - | Shielded | 235mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-270M-TFIXED IND 27UH 580MA 261MOHM SMD |
2,074 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 580 mA | - | Shielded | 261mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-390M-TFIXED IND 39UH 500MA 383.7 MOHM |
2,143 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 500 mA | - | Shielded | 383.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-470M-TFIXED IND 47UH 480MA 587MOHM SMD |
3,492 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 480 mA | - | Shielded | 587mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-680M-TFIXED IND 68UH 350MA 699MOHM SMD |
2,033 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 350 mA | - | Shielded | 699mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-820M-TFIXED IND 82UH 320MA 914.8 MOHM |
2,688 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 320 mA | - | Shielded | 914.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-101M-TFIXED IND 100UH 290MA 1.02OHM SM |
2,344 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 290 mA | - | Shielded | 1.02Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-121M-TFIXED IND 120UH 270MA 1.27OHM SM |
2,653 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 270 mA | - | Shielded | 1.27Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
ASPI-0428S-181M-TFIXED IND 180UH 220MA 1.54OHM SM |
1,236 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 220 mA | - | Shielded | 1.54Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
1235AS-H-1R2N=P3FIXED IND 1.2UH 2.9A 47 MOHM SMD |
1,219 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 2.9 A | 3.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
1235AS-H-150M=P3FIXED IND 15UH 1.1A 192 MOHM SMD |
1,389 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 980mA | Shielded | 192mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
NRT6045T4R7MMRRFIXED IND 4.7UH 2.6A 36MOHM SMD |
2,289 |
|
- |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 6A | Unshielded | 36mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRT6045T1R0NMRRFIXED IND 1UH 5A 13 MOHM SMD |
2,280 |
|
- |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5 A | 13.5A | Unshielded | 13mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRT6045T221MMRRFIXED IND 220UH 420MA 1.32OHM SM |
3,531 |
|
- |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 420 mA | 750mA | Unshielded | 1.32Ohm Max | - | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRT6045T220MMRRFIXED IND 22UH 1.4A 132MOHM SMD |
1,818 |
|
- |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 2.5A | Unshielded | 132mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
