Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

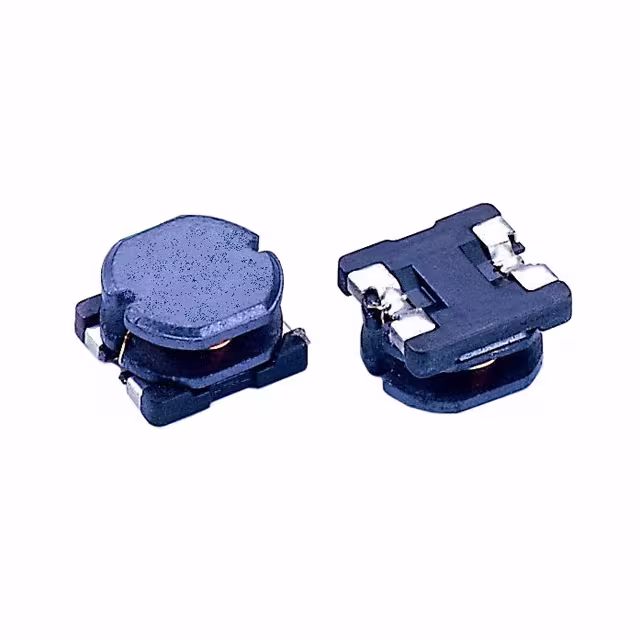

SC73B-120FIXED IND 12UH 2.2A 90 MOHM SMD |
3,227 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 2.2 A | 1.39A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-121FIXED IND 120UH 800MA 660MOHM SM |
3,268 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 800 mA | 490mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-150FIXED IND 15UH 2A 100 MOHM SMD |
1,661 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2 A | 1.24A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-151FIXED IND 150UH 720MA 750MOHM SM |
1,501 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 720 mA | 400mA | Unshielded | 750mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-180FIXED IND 18UH 1.8A 110 MOHM SMD |
1,521 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.8 A | 1.12A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-181FIXED IND 180UH 620MA 1.02OHM SM |
2,106 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±20% | 620 mA | 360mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-220FIXED IND 22UH 1.65A 130MOHM SMD |
4,964 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.65 A | 1.07A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-270FIXED IND 27UH 1.5A 170 MOHM SMD |
1,504 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 1.5 A | 940mA | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-271FIXED IND 270UH 480MA 1.31OHM SM |
3,627 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 480 mA | 290mA | Unshielded | 1.31Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-330FIXED IND 33UH 1.4A 200 MOHM SMD |
4,624 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.4 A | 850mA | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-331FIXED IND 330UH 440MA 1.76OHM SM |
3,240 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 440 mA | 280mA | Unshielded | 1.76Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-390FIXED IND 39UH 1.3A 220 MOHM SMD |
1,328 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 1.3 A | 740mA | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-470FIXED IND 47UH 1.22A 290MOHM SMD |
3,920 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.22 A | 680mA | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-560FIXED IND 56UH 1.13A 340MOHM SMD |
2,617 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 1.13 A | 640mA | Unshielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-680FIXED IND 68UH 1.05A 400MOHM SMD |
4,326 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.05 A | 590mA | Unshielded | 400mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-820FIXED IND 82UH 960MA 470MOHM SMD |
4,780 |
|
Datasheet |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 960 mA | 540mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
CDMC8D28NP-R18MCINDUCTOR |
1,920 |
|
Datasheet |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 180 nH | ±20% | 25.8 A | 28.7A | Shielded | 1.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
|
CDMC8D28NP-3R3MCINDUCTOR |
2,264 |
|
Datasheet |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 7.3 A | 8.8A | Shielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
|
CDMC8D28NP-2R2MCINDUCTOR |
4,557 |
|
Datasheet |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 8.1 A | 8.8A | Shielded | 16.1mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
ISC1210BN10NKFIXED IND 10NH 810MA 100MOHM SMD |
2,995 |
|
Datasheet |
ISC-1210 | 1210 (3225 Metric) | Bulk | Active | Wirewound | Non-Magnetic | 10 nH | ±10% | 810 mA | - | Shielded | 100mOhm Max | 50 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
