Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELT-3KN018BFIXED IND 35MH 1.9MA 235OHM SMD |
2,474 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 35 mH | ±40% | 1.9 mA | - | Unshielded | 235Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
LQH31HN95NK03LFIXED IND 95NH 790MA 61.1MOHM SM |
4,183 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 95 nH | ±10% | 790 mA | - | Unshielded | 61.1mOhm Max | 60 @ 100MHz | 650MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
VLF4014ST-100M1R0FIXED IND 10UH 1A 260 MOHM SMD |
1,095 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
|
|
VLF4014ST-2R2M1R9FIXED IND 2.2UH 1.9A 72 MOHM SMD |
1,056 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 2A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
|
|
VLF4014ST-3R3M1R6FIXED IND 3.3UH 1.6A 107MOHM SMD |
4,993 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.6 A | 1.7A | Shielded | 107mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
|
|
VLF4014ST-4R7M1R4FIXED IND 4.7UH 1.4A 140MOHM SMD |
4,800 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 1.4A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
|
|
VLF4014ST-6R8M1R2FIXED IND 6.8UH 1.2A 190MOHM SMD |
4,019 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.2A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.055" (1.40mm) |
.jpg)
|
74479887222FIXED IND 2.2UH 850MA 400MOHM SM |
4,696 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 850 mA | 1.1A | Shielded | 400mOhm | 19 @ 1MHz | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74479887247FIXED IND 4.7UH 750MA 530MOHM SM |
2,424 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 4.7 µH | ±20% | 750 mA | 850mA | Shielded | 530mOhm | 26 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQH31HNR21K03LFIXED IND 215NH 520MA 143MOHM SM |
1,033 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 215 nH | ±10% | 520 mA | - | Unshielded | 143mOhm Max | 60 @ 100MHz | 430MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31HNR29K03LFIXED IND 290NH 420MA 221MOHM SM |
4,894 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±10% | 420 mA | - | Unshielded | 221mOhm Max | 60 @ 100MHz | 360MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
HL02180GTTRFIXED IND 18NH 190MA 1.213OHM SM |
4,371 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 18 nH | ±2% | 190 mA | - | Unshielded | 1.213Ohm Max | 28 @ 450MHz | 2.38GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02320GTTRFIXED IND 32NH 150MA 1.935OHM SM |
2,174 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 32 nH | ±2% | 150 mA | - | Unshielded | 1.935Ohm Max | 28 @ 450MHz | 1.73GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HL02100GTTRFIXED IND 10NH 235MA 674MOHM SMD |
4,757 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 10 nH | ±2% | 235 mA | - | Unshielded | 674mOhm Max | 30 @ 450MHz | 3.53GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

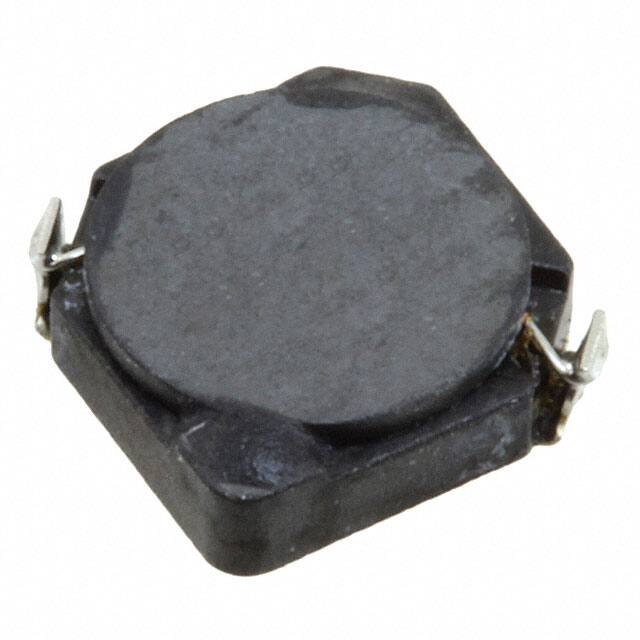

CDRH4D14HPNP-6R8NCFIXED IND 6.8UH 920MA 190MOHM SM |
4,262 |
|
Datasheet |
CDRH4D14/HP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±30% | 920 mA | 1.15A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|

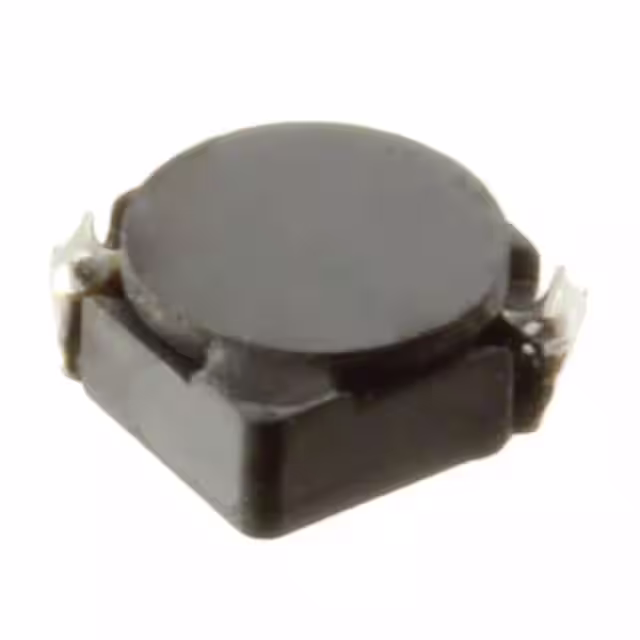

CDRH3D16/LDNP-3R3NCFIXED IND 3.3UH 2A 66 MOHM SMD |
2,040 |
|
Datasheet |
CDRH3D16/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±30% | 2 A | 800mA | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
MPLCH0740L2R2FIXED IND 2.2UH 9.3A 13 MOHM SMD |
4,416 |
|
Datasheet |
MPLCH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 9.3 A | 9A | Shielded | 13mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
FDSD0412-H-1R5M=P3FIXED IND 1.5UH 3.3A 64 MOHM SMD |
2,961 |
|
Datasheet |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.3 A | 4.1A | Shielded | 64mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
|
|
FDSD0412-H-2R2M=P3FIXED IND 2.2UH 2.8A 84 MOHM SMD |
4,555 |
|
Datasheet |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 3.5A | Shielded | 84mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
|
|
FDSD0412-H-3R3M=P3FIXED IND 3.3UH 2.2A 122MOHM SMD |
4,894 |
|
Datasheet |
FDSD0412 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.2 A | 2.8A | Shielded | 122mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.047" (1.20mm) |
