Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0581.103NLTFIXED IND 10UH 2.5A 43 MOHM SMD |
4,349 |
|
Datasheet |
PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 2.5 A | 2.5A | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PF0581.334NLTFIXED IND 330UH 420MA 1.1OHM SMD |
2,387 |
|
Datasheet |
PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 420 mA | 420mA | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PA1212.700NLTFIXED IND 72NH 31A 0.46 MOHM SMD |
1,889 |
|
Datasheet |
PA1212NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.46mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PA1212.151NLTFIXED IND 150NH 24A 0.46MOHM SMD |
1,283 |
|
Datasheet |
PA1212NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±20% | 24 A | 30A | Shielded | 0.46mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
|
PF0382.683NLTFIXED IND 68UH 1.9A 130 MOHM SMD |
3,748 |
|
Datasheet |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.9 A | 3.1A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.445" (11.30mm) |
|
PM4547.221NLTFIXED IND 220NH 7A 17 MOHM SMD |
1,891 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 7 A | 10.8A | Unshielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.561NLTFIXED IND 560NH 5A 33 MOHM SMD |
1,213 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 5 A | 7.2A | Unshielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.822NLTFIXED IND 8.2UH 1.3A 468MOHM SMD |
3,393 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 1.3 A | 1.8A | Unshielded | 468mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.562NLTFIXED IND 5.6UH 1.7A 318MOHM SMD |
4,324 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 1.7 A | 2.3A | Unshielded | 318mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.152NLTFIXED IND 1.5UH 3.4A 77 MOHM SMD |
2,444 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.4 A | 4A | Unshielded | 77mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.682NLTFIXED IND 6.8UH 1.5A 348MOHM SMD |
2,246 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 1.5 A | 2A | Unshielded | 348mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.222NLTINDMOLDED POWDER3.8X3.4X1.5 MAX |
2,899 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.2 A | 3.8A | Shielded | 98mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|

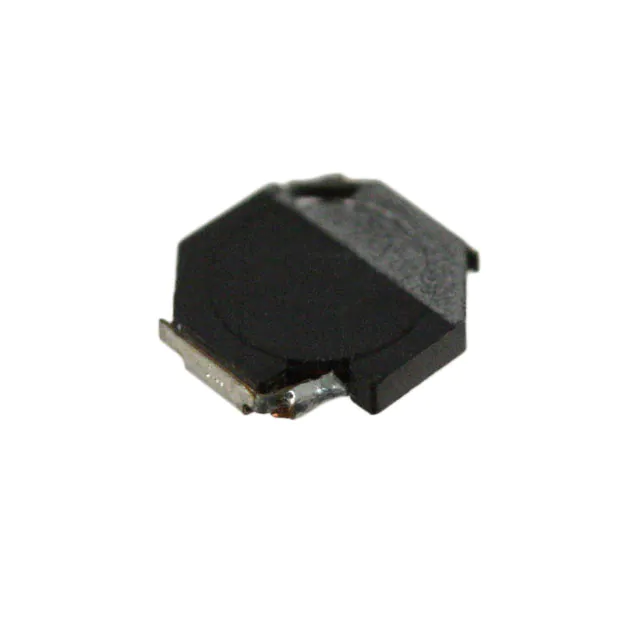

VLF4012ST-100MR65FIXED IND 10UH 650MA 490MOHM SMD |
2,756 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 650 mA | 900mA | Shielded | 490mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|
VLF4012ST-1R0N1R9FIXED IND 1UH 1.9A 54 MOHM SMD |
4,086 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2.7A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|
VLF4012ST-2R2M1R3FIXED IND 2.2UH 1.3A 120MOHM SMD |
3,161 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.3 A | 1.7A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|
VLF4012ST-3R3M1R1FIXED IND 3.3UH 1.1A 160MOHM SMD |
2,549 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.1 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|
VLF4012ST-4R7M1R0FIXED IND 4.7UH 1A 190 MOHM SMD |
2,263 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 1.4A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|
VLF4012ST-6R8MR80FIXED IND 6.8UH 800MA 320MOHM SM |
2,669 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 800 mA | 1A | Shielded | 320mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
FDSD0420-H-100M=P3FIXED IND 10UH 1.7A 200 MOHM SMD |
1,557 |
|
Datasheet |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.7 A | 2.5A | Shielded | 200mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
|
FDSD0420-H-1R0M=P3FIXED IND 1UH 5.1A 29 MOHM SMD |
2,776 |
|
Datasheet |
FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.1 A | 6.8A | Shielded | 29mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
