Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0428S-8R2M-TFIXED IND 8.2UH 1.04A 117.5 MOHM |
1,183 |
|
Datasheet |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.04 A | - | Shielded | 117.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
LQH31MN100J03LFIXED IND 10UH 100MA 3.25OHM SMD |
2,417 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 100 mA | - | Unshielded | 3.25Ohm Max | 35 @ 5MHz | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN101J03LFIXED IND 100UH 45MA 12 OHM SMD |
3,537 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 45 mA | - | Unshielded | 12Ohm | 40 @ 2.5MHz | 7MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN1R5J03LFIXED IND 1.5UH 155MA 1.3OHM SMD |
1,435 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 155 mA | - | Unshielded | 1.3Ohm Max | 35 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN220J03LFIXED IND 22UH 85MA 4.03 OHM SMD |
3,563 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 85 mA | - | Unshielded | 4.03Ohm Max | 40 @ 2.5MHz | 14MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN470J03LFIXED IND 47UH 55MA 8 OHM SMD |
4,512 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 55 mA | - | Unshielded | 8Ohm | 40 @ 2.5MHz | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN4R7J03LFIXED IND 4.7UH 120MA 2.21OHM SM |
2,873 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 120 mA | - | Unshielded | 2.21Ohm Max | 35 @ 8MHz | 31MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN680J03LFIXED IND 68UH 50MA 12.87OHM SMD |
3,828 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 50 mA | - | Unshielded | 12.87Ohm Max | 40 @ 2.5MHz | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN8R2J03LFIXED IND 8.2UH 105MA 2.86OHM SM |
1,522 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 105 mA | - | Unshielded | 2.86Ohm Max | 35 @ 8MHz | 23MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MNR15K03LFIXED IND 150NH 250MA 546MOHM SM |
3,127 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 250 mA | - | Unshielded | 546mOhm Max | 20 @ 25MHz | 250MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|

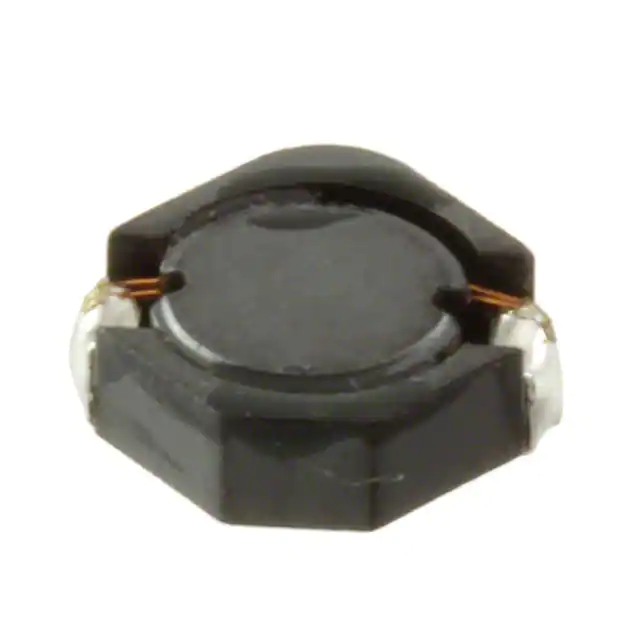

CDRH4D18CNP-6R8PCFIXED IND 6.8UH 1.05A 125MOHM SM |
2,067 |
|
Datasheet |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±25% | 1.05 A | - | Shielded | 125mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
CDRH4D18CNP-4R7PCFIXED IND 4.7UH 1.15A 110MOHM SM |
3,956 |
|
Datasheet |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.15 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
ECS-HCMPI-0503Q-1R8M-TFIXED IND 1.8UH 10.1A 12.7 MOHM |
4,579 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 10.1 A | 11.3A | Shielded | 12.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-1R5M-TFIXED IND 1.5UH 10.5A 11.2 MOHM |
2,028 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-1R2M-TFIXED IND 1.2UH 11A 9.7 MOHM SMD |
3,404 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 11 A | 13.5A | Shielded | 9.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R60M-TFIXED IND 600NH 17.7A 4.52 MOHM |
1,936 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 600 nH | ±20% | 17.7 A | 20A | Shielded | 4.52mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
P1166.474NLTFIXED IND 470UH 250MA 2.91OHM SM |
2,470 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 250 mA | 260mA | Shielded | 2.91Ohm Max | - | 3.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
CDRH8D58/LDNP-101NCFIXED IND 100UH 1.4A 175MOHM SMD |
1,543 |
|
Datasheet |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 1.4 A | 800mA | Shielded | 175mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
CDRH8D58/LDNP-220NCFIXED IND 22UH 3.3A 45.3MOHM SMD |
3,306 |
|
Datasheet |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 3.3 A | 1.7A | Shielded | 45.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
CDRH8D58/LDNP-2R8NCFIXED IND 2.8UH 6.9A 15 MOHM SMD |
2,899 |
|
Datasheet |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.8 µH | ±30% | 6.9 A | 4.7A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
