Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPV 1265SPV-1R0MN-D1.0 UH SHIELDED MOLDED INDUCTOR |
2,250 |
|
Datasheet |
TMPV1265SPV-D | Nonstandard | Active | - | Metal | 1 µH | ±20% | 32 A | 32A | Unshielded | 2.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) | |
|
|
TMPV 1265SPV-1R5MN-D1.5 UH SHIELDED MOLDED INDUCTOR |
4,113 |
|
Datasheet |
TMPV1265SPV-D | Nonstandard | Active | - | Metal | 1.5 µH | ±20% | 27 A | 29A | Unshielded | 2.76mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) | |
|
|
TMPV 1265SPV-3R3MN-D3.3 UH SHIELDED MOLDED INDUCTOR |
4,819 |
|
Datasheet |
TMPV1265SPV-D | Nonstandard | Active | - | Metal | 3.3 µH | ±20% | 19 A | 24A | Unshielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) | |
|
|
TMPA1265HTV-R47MN-DIND 0.47UH 0.9MOHM 35A |
2,754 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-120MN-DIND 12UH 20MOHM 10A |
2,316 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-R33MN-DIND 0.33UH 0.62MOHM 37A |
2,317 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-8R2MN-DIND 8.2UH 13.6MOHM 12A |
3,636 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-3R3MN-DIND 3.3UH 5.6MOHM 20A |
2,232 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SEPI060690LN-R12M-R2510IND 0.12UH 0.25MOHM 50A |
3,252 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-5R6MN-DIND 5.6UH 9.2MOHM 15A |
4,563 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TMPA1265HTV-R22MN-DIND 0.22UH 0.46MOHM 40A |
4,061 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
NS12555T152MNVFIXED IND 1.5MH 440MA 1.73OHM SM |
1,618 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 1.73Ohm Max | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 125125 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
5800-181-RCFIXED IND 180UH 500MA 520MOHM TH |
2,907 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 500 mA | 900mA | Unshielded | 520mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-182-RCFIXED IND 1.8MH 180MA 4.4 OHM TH |
4,681 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 180 mA | 270mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|

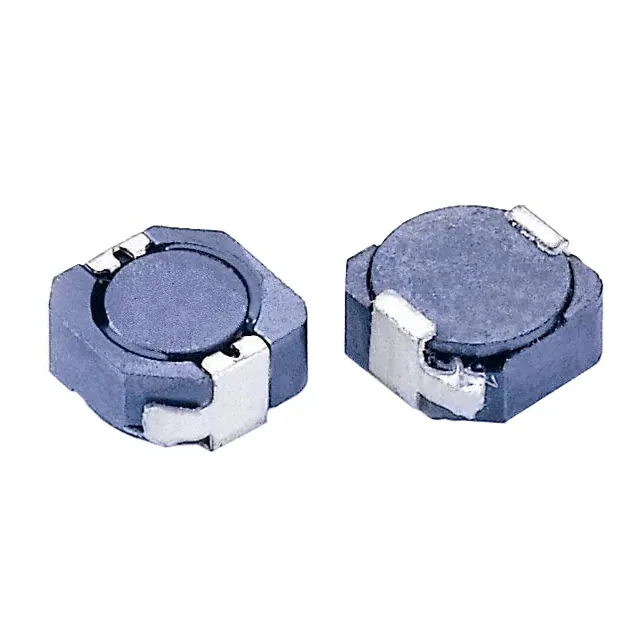

SCRH5D28R-100FIXED IND 10UH 2.43A 54 MOHM SMD |
1,683 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2.43 A | 1.3A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCRH5D28R-101FIXED IND 100UH 780MA 520MOHM SM |
1,375 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 780 mA | 400mA | Shielded | 520mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCRH5D28R-120FIXED IND 12UH 2.18A 71.6MOHM SM |
4,825 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 2.18 A | 1.2A | Shielded | 71.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCRH5D28R-150FIXED IND 15UH 1.96A 82.4MOHM SM |
3,002 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 1.96 A | 1.1A | Shielded | 82.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCRH5D28R-180FIXED IND 18UH 1.76A 101.5 MOHM |
3,533 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±30% | 1.76 A | 1.05A | Shielded | 101.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCRH5D28R-220FIXED IND 22UH 1.58A 119MOHM SMD |
3,659 |
|
Datasheet |
SCRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 1.58 A | 950mA | Shielded | 119mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
