Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLPM131365M150LCPOWER CHOKE MOLDED 15UH 9A |
1,640 |
|
- |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6 A | 9A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
WLPM131365M220LCPOWER CHOKE MOLDED 22UH 7.5A |
1,491 |
|
- |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5 A | 7.5A | Shielded | 39.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
WLPM131365M470LCPOWER CHOKE MOLDED 47UH 5A |
1,536 |
|
- |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3 A | 5A | Shielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
WLPM131365M330LCPOWER CHOKE MOLDED 33UH 6A |
2,207 |
|
- |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 4 A | 6A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|
|
WLPM131365M680LCPOWER CHOKE MOLDED 68UH 3.5A |
1,429 |
|
- |
PM | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 2 A | 3.5A | Shielded | 134mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
|

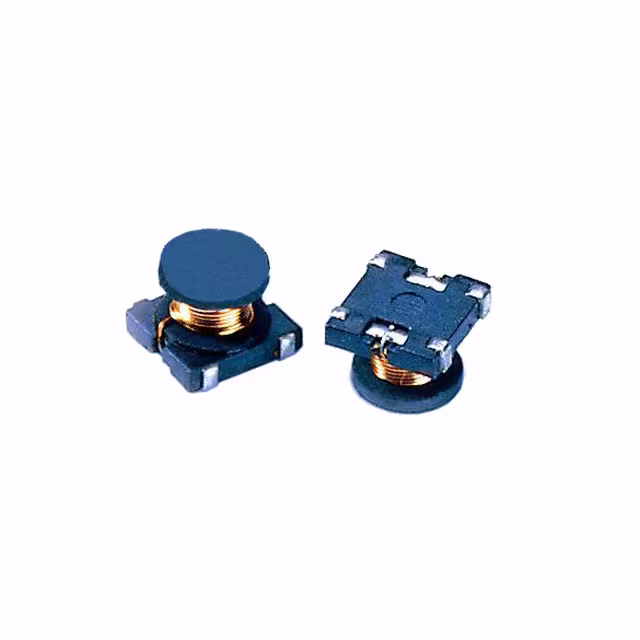

SC32B-100FIXED IND 10UH 1A 230 MOHM SMD |
3,524 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1 A | 760mA | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-101FIXED IND 100UH 320MA 2.2OHM SMD |
4,333 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 320 mA | 220mA | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-120FIXED IND 12UH 920MA 270MOHM SMD |
2,096 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 920 mA | 685mA | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-121FIXED IND 120UH 290MA 2.9OHM SMD |
4,478 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 290 mA | 185mA | Unshielded | 2.9Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-150FIXED IND 15UH 860MA 310MOHM SMD |
3,104 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 860 mA | 635mA | Unshielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-151FIXED IND 150UH 250MA 3.4OHM SMD |
1,087 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 250 mA | 170mA | Unshielded | 3.4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-180FIXED IND 18UH 800MA 410MOHM SMD |
3,125 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 800 mA | 525mA | Unshielded | 410mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-181FIXED IND 180UH 230MA 3.9OHM SMD |
3,361 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±20% | 230 mA | 165mA | Unshielded | 3.9Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-220FIXED IND 22UH 740MA 470MOHM SMD |
2,433 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 740 mA | 500mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-221FIXED IND 220UH 210MA 4.5OHM SMD |
1,081 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 210 mA | 155mA | Unshielded | 4.5Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-270FIXED IND 27UH 680MA 660MOHM SMD |
1,105 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 680 mA | 405mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-271FIXED IND 270UH 200MA 6 OHM SMD |
1,285 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 200 mA | 135mA | Unshielded | 6Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-330FIXED IND 33UH 580MA 760MOHM SMD |
2,109 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 580 mA | 380mA | Unshielded | 760mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-331FIXED IND 330UH 180MA 7 OHM SMD |
1,691 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 180 mA | 125mA | Unshielded | 7Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SC32B-390FIXED IND 39UH 500MA 850MOHM SMD |
1,127 |
|
Datasheet |
SC32B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 500 mA | 355mA | Unshielded | 850mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
