Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLQ021R5BTTRFIXED IND 1.5NH 330MA 150MOHM SM |
3,081 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.5 nH | ±0.1nH | 330 mA | - | Unshielded | 150mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLQ021R8BTTRFIXED IND 1.8NH 300MA 160MOHM SM |
3,882 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.8 nH | ±0.1nH | 300 mA | - | Unshielded | 160mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLQ022R0BTTRFIXED IND 2NH 245MA 180 MOHM SMD |
1,167 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2 nH | ±0.1nH | 245 mA | - | Unshielded | 180mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
HLQ023R9BTTRFIXED IND 3.9NH 200MA 400MOHM SM |
1,191 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.9 nH | ±0.1nH | 200 mA | - | Unshielded | 400mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

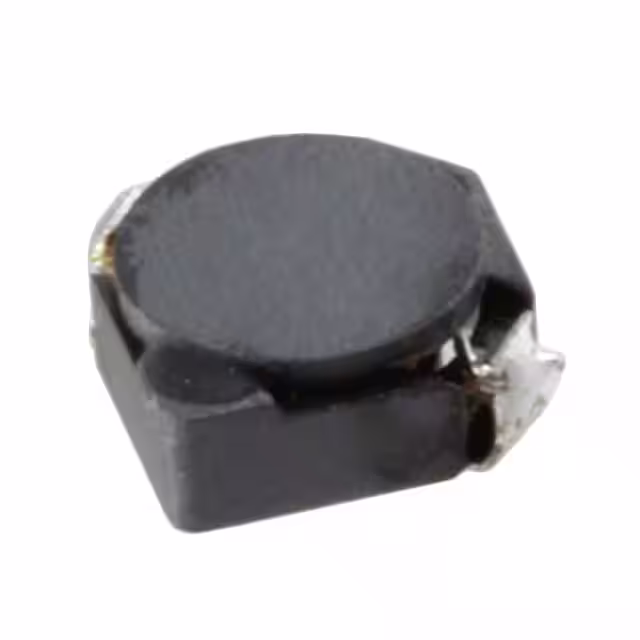

CDRH3D16/LDNP-100NCFIXED IND 10UH 1.07A 190MOHM SMD |
1,453 |
|
Datasheet |
CDRH3D16/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±30% | 1.07 A | 460mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

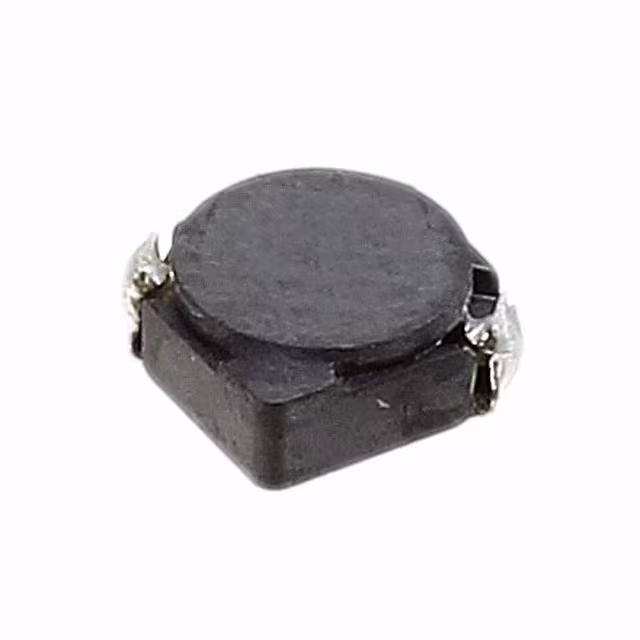

CDRH3D16/LDNP-4R7NCFIXED IND 4.7UH 1.72A 91MOHM SMD |
2,692 |
|
Datasheet |
CDRH3D16/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±30% | 1.72 A | 680mA | Shielded | 91mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
.jpg)
|
LQW31HN47NJ03LFIXED IND 47NH 380MA 154MOHM SMD |
4,100 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 47 nH | ±5% | 380 mA | - | Unshielded | 154mOhm Max | 60 @ 436MHz | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
MDMK2020TR47MMVFIXED IND 470NH 46 MOHM SMD |
3,427 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | - | - | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MDMK2020TR68MMVFIXED IND 680NH 58 MOHM SMD |
3,836 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | - | - | Shielded | 58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
B1047AS-270M=P3FIXED IND 27UH 1.6A 130 MOHM SMD |
3,901 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.6 A | 1.8A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-101M=P3FIXED IND 100UH 770MA 460MOHM SM |
2,995 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 770 mA | 940mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-471M=P3FIXED IND 470UH 370MA 1.7OHM SMD |
2,271 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 430mA | Shielded | 1.7Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
LQH43PH101M26LFIXED IND 100UH 320MA 1.8456 OHM |
1,373 |
|
Datasheet |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 320 mA | 320mA | Shielded | 1.8456Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43PH3R3M26LFIXED IND 3.3UH 2.1A 62.4MOHM SM |
3,053 |
|
Datasheet |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.1 A | 1.8A | Shielded | 62.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43PH4R7M26LFIXED IND 4.7UH 1.6A 90MOHM SMD |
2,144 |
|
Datasheet |
LQH43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 1.4A | Shielded | 90mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
-2,00x1,60x,80mm.jpg)
|
CIGT2016R6MH100MNEFIXED IND 10UH 450MA 1.4 OHM SMD |
4,561 |
|
- |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 10 µH | ±20% | 450 mA | 600mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
LQH43NH181J03LFIXED IND 180UH 110MA 4.08OHM SM |
3,374 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 110 mA | - | Unshielded | 4.08Ohm Max | 40 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NH4R7J03LFIXED IND 4.7UH 750MA 108MOHM SM |
2,190 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 750 mA | - | Unshielded | 108mOhm Max | 20 @ 1MHz | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
MPL-SE6040-8R2FIXED IND 8.2UH 4A 39 MOHM SMD |
3,825 |
|
- |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 8.2 µH | - | 4 A | 3.6A | Shielded | 39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.157" (4.00mm) |
|
AMDLA3010S-1R5MTFIXED IND 1.5UH 2.4A 65MOHM SMD |
3,559 |
|
Datasheet |
AMDLA3010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 2.4 A | 4A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
