Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812RV1R0KFIXED IND 1UH 450MA 500 MOHM SMD |
4,391 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV1R2KFIXED IND 1.2UH 430MA 550MOHM SM |
2,929 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV1R5KFIXED IND 1.5UH 410MA 600MOHM SM |
4,473 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV1R8KFIXED IND 1.8UH 390MA 650MOHM SM |
4,578 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV2R2KFIXED IND 2.2UH 380MA 700MOHM SM |
4,473 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV2R7KFIXED IND 2.7UH 370MA 750MOHM SM |
3,632 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.7 µH | ±10% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 50MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV3R3KFIXED IND 3.3UH 355MA 800MOHM SM |
3,739 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 45MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV3R9KFIXED IND 3.9UH 330MA 900MOHM SM |
2,799 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.9 µH | ±10% | 330 mA | - | Unshielded | 900mOhm Max | 50 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV4R7KFIXED IND 4.7UH 315MA 1 OHM SMD |
1,778 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±10% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV5R6KFIXED IND 5.6UH 300MA 1.1OHM SMD |
3,495 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 33MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV6R8KFIXED IND 6.8UH 285MA 1.2OHM SMD |
3,143 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±10% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.96MHz | 27MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RV8R2KFIXED IND 8.2UH 270MA 1.4OHM SMD |
4,230 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±10% | 270 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RX100KFIXED IND 10UH 250MA 1.6 OHM SMD |
2,722 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RX1R0KFIXED IND 1UH 450MA 500 MOHM SMD |
3,919 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812RX5R6KFIXED IND 5.6UH 300MA 1.1OHM SMD |
2,431 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 33MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHLP2525CZER5R6M01FIXED IND 5.6UH SMD |
3,396 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

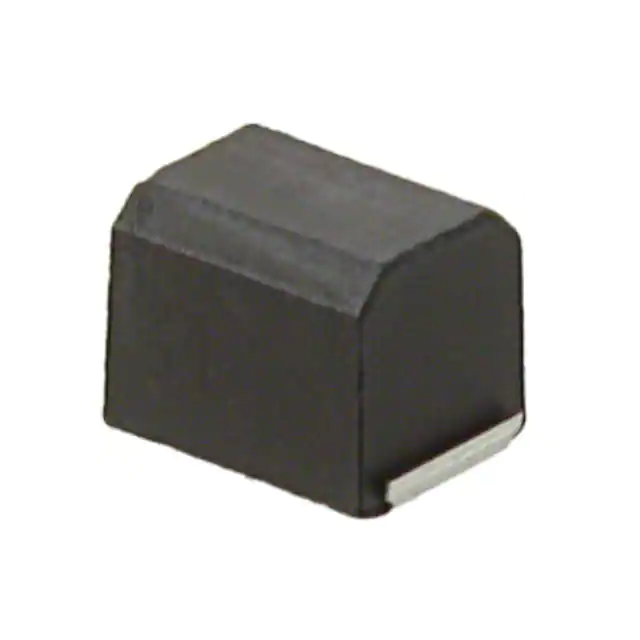

NLFC453232T-1R0M-PFFIXED IND 1UH 800MA 50 MOHM SMD |
1,140 |
|
Datasheet |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 800 mA | - | Shielded | 50mOhm | 10 @ 7.96MHz | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-6R8M-PFFIXED IND 6.8UH 300MA 140MOHM SM |
4,689 |
|
Datasheet |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 300 mA | - | Shielded | 140mOhm | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-680K-PFFIXED IND 68UH 100MA 1.2 OHM SMD |
4,257 |
|
Datasheet |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±10% | 100 mA | - | Shielded | 1.2Ohm | 10 @ 2.52MHz | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-4R7M-PFFIXED IND 4.7UH 400MA 100MOHM SM |
2,217 |
|
Datasheet |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 400 mA | - | Shielded | 100mOhm | 10 @ 7.96MHz | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
