Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCH108NP-8R2MFIXED IND 8.2UH 5A 17 MOHM TH |
1,962 |
|
Datasheet |
RCH-108 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 5 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.335" (8.50mm) |
|
SDR2207-R80MFIXED IND 800NH 16A 2.8 MOHM SMD |
1,024 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 800 nH | ±20% | 16 A | 35A | Unshielded | 2.8mOhm Max | 30 @ 5MHz | 102MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-4R7MFIXED IND 4.7UH 8.5A 8.8MOHM SMD |
2,233 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.5 A | 15A | Unshielded | 8.8mOhm Max | 38 @ 3MHz | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-100MFIXED IND 10UH 6.5A 17.2MOHM SMD |
3,096 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | 10A | Unshielded | 17.2mOhm Max | 53 @ 5MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-220YFIXED IND 22UH 4A 39.4 MOHM SMD |
3,778 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 4 A | 6.5A | Unshielded | 39.4mOhm Max | 27 @ 3MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-330KFIXED IND 33UH 3.4A 58.4MOHM SMD |
4,605 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.4 A | 5.5A | Unshielded | 58.4mOhm Max | 27 @ 3MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-101KFIXED IND 100UH 2.2A 168MOHM SMD |
2,691 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 3A | Unshielded | 168mOhm Max | 18 @ 2MHz | 6.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SRP1038CC-270MIND SMD 27UH 4.5A |
2,642 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 27 µH | ±20% | 4.5 A | 6.5A | Shielded | 96mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP7030-220MFIXED IND 22UH SMD |
4,136 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
ASPI-5050LR-8R2M-TIND 8.2UH 6.1A 32.5M |
3,753 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 6.1 A | 6.1A | Shielded | 32.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
ASPI-5050LR-150M-TIND 15UH 4A 66.0M |
1,360 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 4 A | 4.6A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
ASPI-5050LR-5R6M-TIND 5.6UH 7.2A 24.2M |
2,541 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7.2 A | 7.2A | Shielded | 24.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
ASPI-5050LR-6R8M-TIND 6.8UH 6.4A 28.6M |
3,624 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 6.4 A | 6.6A | Shielded | 28.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|

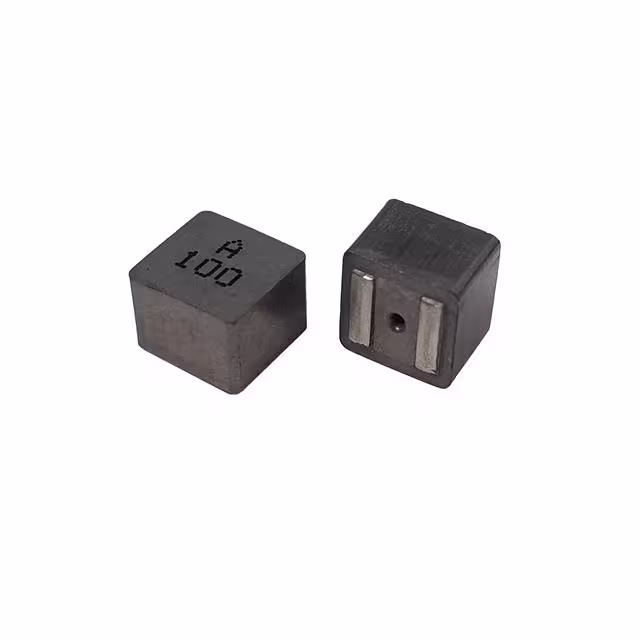

ASPI-5050LR-220M-TIND 22UH 3.4A 99.7M |
1,499 |
|
Datasheet |
ASPI-5050LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 3.4 A | 4.1A | Shielded | 99.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-100MCFIXED IND 10UH 2.5A 51.2MOHM SMD |
3,622 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 2.5 A | 2.48A | Shielded | 51.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-121MCFIXED IND 120UH 640MA 526.8 MOHM |
4,614 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 µH | ±20% | 640 mA | 710mA | Shielded | 526.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-181MCFIXED IND 180UH 540MA 784.8 MOHM |
3,204 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 µH | ±20% | 540 mA | 600mA | Shielded | 784.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-1R5MCFIXED IND 1.5UH 4.8A 17 MOHM SMD |
1,177 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.5 µH | ±20% | 4.8 A | 6.24A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-220MCFIXED IND 22UH 1.72A 95.6MOHM SM |
3,275 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±20% | 1.72 A | 1.66A | Shielded | 95.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
|
|
CDRR94ANP-270MCFIXED IND 27UH 1.6A 112 MOHM SMD |
3,843 |
|
Datasheet |
CDRR94A | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 27 µH | ±20% | 1.6 A | 1.56A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.197" (5.00mm) |
