Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSRNJ12555GL151MMYFIXED IND 150UH 1.43A 211.2 MOHM |
1,921 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.43 A | 1.22A | Shielded | 212mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL221MMYFIXED IND 220UH 1.18A 324MOHM SM |
4,056 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1A | Shielded | 270mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL152MMYFIXED IND 1.5MH 440MA 2.076 OHM |
1,520 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 1.73Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL471MMYFIXED IND 470UH 800MA 624MOHM SM |
2,433 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 680mA | Shielded | 520mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LSRNJ12555GL470MMYFIXED IND 47UH 2.7A 66.12MOHM SM |
2,603 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 2.23A | Shielded | 55.1mOhm | - | 9.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|

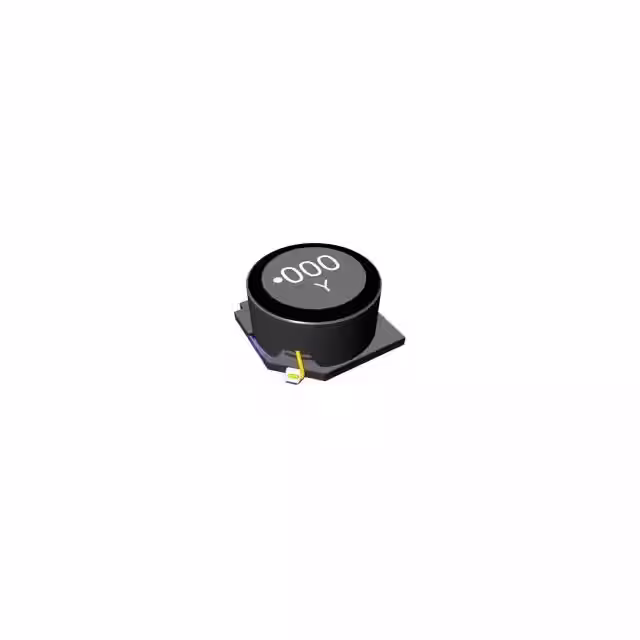

LLRNJ12555GL330MMYFIXED IND 33UH 3.16A 49.8MOHM SM |
4,719 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.16 A | 2.64A | Shielded | 41.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL150MMYFIXED IND 15UH 4.18A 27.96 MOHM |
2,787 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.18 A | 3.89A | Shielded | 23.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL151MMYFIXED IND 150UH 1.43A 211.2 MOHM |
2,777 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.43 A | 1.22A | Shielded | 176mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LSRNJ12555GL102MMYFIXED IND 1MH 590MA 1.344OHM SMD |
4,526 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 590 mA | 470mA | Shielded | 1.35Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL6R0NMYFIXED IND 6UH 5.6A 16.8 MOHM SMD |
1,301 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6 µH | ±30% | 5.6 A | 5.01A | Shielded | 14mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LSRNJ12555GL221MMYFIXED IND 220UH 1.18A 324MOHM SM |
3,924 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1A | Shielded | 324mOhm Max | - | 4.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL100MMYFIXED IND 10UH 5.04A 21 MOHM SMD |
2,718 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5.04 A | 4.73A | Shielded | 17.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
LLRNJ12555GL101MMYFIXED IND 100UH 1.86A 140.4 MOHM |
4,820 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.86 A | 1.53A | Shielded | 117mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
CDRH3D16NP-0R7NCFIXED IND 700NH 2.25A 43MOHM SMD |
2,945 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 700 nH | ±35% | 2.25 A | - | Shielded | 43mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH3D16NP-1R1NCFIXED IND 1.1UH 1.9A 50 MOHM SMD |
3,267 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.1 µH | ±35% | 1.9 A | - | Shielded | 50mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH3D16NP-R26NCFIXED IND 260NH 3.6A 27.5MOHM SM |
2,500 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 260 nH | ±35% | 3.6 A | - | Shielded | 27.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH3D16NP-R47NCFIXED IND 470NH 2.75A 35MOHM SMD |
1,700 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±35% | 2.75 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
PM518S-101-RCFIXED IND 100UH 350MA 1.1OHM SMD |
4,000 |
|
Datasheet |
PM518S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 350 mA | 420mA | Shielded | 1.1Ohm Max | 13.1 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
PM518S-180-RCFIXED IND 18UH 900MA 210MOHM SMD |
1,901 |
|
Datasheet |
PM518S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 900 mA | 1A | Shielded | 210mOhm Max | 8.8 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
PM518S-330-RCFIXED IND 33UH 650MA 350MOHM SMD |
4,506 |
|
Datasheet |
PM518S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 650 mA | 700mA | Shielded | 350mOhm Max | 10.9 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
