Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

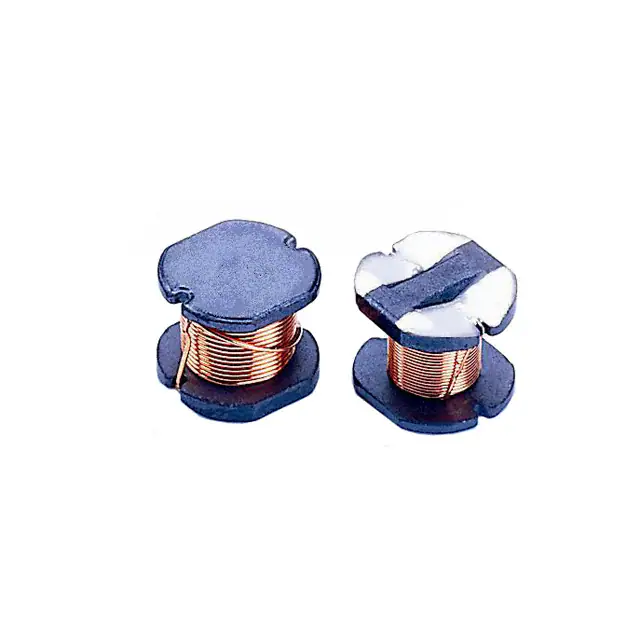

SC108-270FIXED IND 27UH 3.3A 70 MOHM SMD |
3,599 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 3.3 A | 2.5A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-271FIXED IND 270UH 930MA 550MOHM SM |
1,124 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 930 mA | 950mA | Unshielded | 550mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-330FIXED IND 33UH 3.2A 80 MOHM SMD |
1,823 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.2 A | 2.4A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-331FIXED IND 330UH 900MA 600MOHM SM |
4,744 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 900 mA | 900mA | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-390FIXED IND 39UH 2.9A 90 MOHM SMD |
1,253 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 2.9 A | 2.2A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-391FIXED IND 390UH 800MA 670MOHM SM |
3,030 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 800 mA | 800mA | Unshielded | 670mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-470FIXED IND 47UH 2.6A 110 MOHM SMD |
2,395 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-471FIXED IND 470UH 750MA 880MOHM SM |
1,884 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 750 mA | 700mA | Unshielded | 880mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-560FIXED IND 56UH 2.4A 120 MOHM SMD |
1,237 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 2.4 A | 1.9A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-680FIXED IND 68UH 2.3A 150 MOHM SMD |
3,533 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.3 A | 1.8A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-681FIXED IND 680UH 720MA 1.18OHM SM |
4,952 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 600mA | Unshielded | 1.18Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-820FIXED IND 82UH 2A 190 MOHM SMD |
1,165 |
|
Datasheet |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 2 A | 1.6A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
SCRH1035R-100FIXED IND 10UH 3A 69 MOHM SMD |
1,966 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 3 A | 3.4A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-101FIXED IND 100UH 1.08A 450MOHM SM |
1,338 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.08 A | 1.2A | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-120FIXED IND 12UH 2.85A 82 MOHM SMD |
3,794 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 2.85 A | 3.2A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-121FIXED IND 120UH 1A 504 MOHM SMD |
1,955 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±30% | 1 A | 1.1A | Shielded | 504mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-151FIXED IND 150UH 810MA 637MOHM SM |
1,392 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±30% | 810 mA | 900mA | Shielded | 637mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-180FIXED IND 18UH 2.4A 104 MOHM SMD |
4,097 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±30% | 2.4 A | 2.6A | Shielded | 104mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-181FIXED IND 180UH 770MA 760MOHM SM |
3,310 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±30% | 770 mA | 850mA | Shielded | 760mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-1R5FIXED IND 1.5UH 7.69A 10MOHM SMD |
3,260 |
|
Datasheet |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 7.69 A | 8.1A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
