Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS252010L1R0N-10FIXED IND 1UH 1.65A 108 MOHM SMD |
1,084 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 1.65 A | 1.85A | Shielded | 108mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L2R2N-10FIXED IND 2.2UH 1.2A 209MOHM SMD |
3,684 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.2 A | 1.2A | Shielded | 209mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L4R7M-10FIXED IND 4.7UH 700MA 563MOHM SM |
2,171 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 700 mA | 950mA | Shielded | 563mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010LR68N-10FIXED IND 680NH 2A 74 MOHM SMD |
2,803 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 680 nH | ±30% | 2 A | 2.2A | Shielded | 74mOhm Max | - | 138MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L100M-10FIXED IND 10UH 620MA 637MOHM SMD |
2,504 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 620 mA | 790mA | Shielded | 637mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L150M-10FIXED IND 15UH 420MA 1.469OHM SM |
3,109 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 420 mA | 680mA | Shielded | 1.469Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L2R2M-10FIXED IND 2.2UH 1.15A 199MOHM SM |
3,034 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.15 A | 1.85A | Shielded | 199mOhm Max | - | 69MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L3R3M-10FIXED IND 3.3UH 1.04A 244MOHM SM |
4,842 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.04 A | 1.61A | Shielded | 244mOhm Max | - | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L4R7M-10FIXED IND 4.7UH 840MA 348MOHM SM |
2,110 |
|
Datasheet |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 840 mA | 1.12A | Shielded | 348mOhm Max | - | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
48471SCFIXED IND 470UH 760MA 900MOHM SM |
3,026 |
|
Datasheet |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 760 mA | - | Shielded | 900mOhm Max | 20 @ 800kHz | 4MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
.jpg)
|
74479887210CFIXED IND 1UH 2.5A 55 MOHM SMD |
3,797 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 2.5 A | 1.9A | Shielded | 55mOhm | 17 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
HMLE32251B-1R0MSFIXED IND 1UH 3.9A 41 MOHM SMD |
4,910 |
|
Datasheet |
HMLE32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 3.9 A | 4.3A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
B82473M1103K000FIXED IND 10UH 2.3A 70 MOHM SMD |
4,160 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 2.5A | Unshielded | 70mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1104K000FIXED IND 100UH 720MA 430MOHM SM |
1,072 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 800mA | Unshielded | 430mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1153K000FIXED IND 15UH 1.8A 90 MOHM SMD |
3,877 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.8 A | 2A | Unshielded | 90mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|

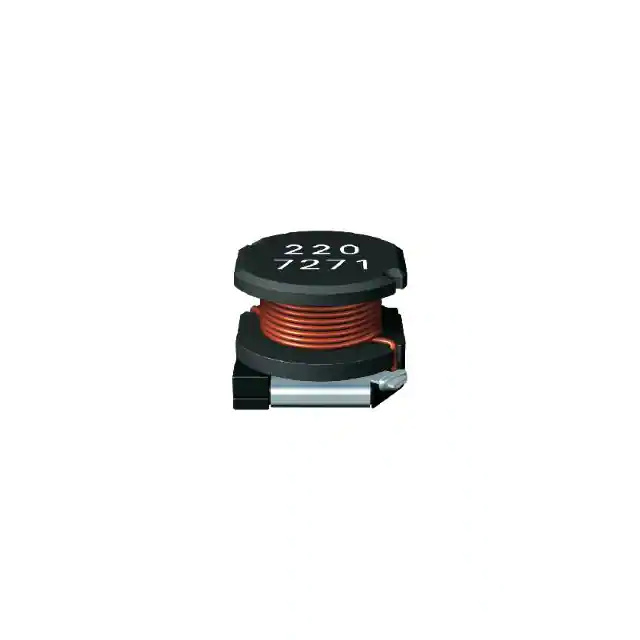

B82473M1154K000FIXED IND 150UH 580MA 640MOHM SM |
3,172 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 580 mA | 650mA | Unshielded | 640mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1333K000FIXED IND 33UH 1.2A 130 MOHM SMD |
3,230 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | 1.3A | Unshielded | 130mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1334K000FIXED IND 330UH 400MA 1.26OHM SM |
1,632 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 400 mA | 450mA | Unshielded | 1.26Ohm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473M1474K000FIXED IND 470UH 340MA 1.96OHM SM |
1,471 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 340 mA | 400mA | Unshielded | 1.96Ohm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
AIUR-11-331KFIXED IND 330UH 490MA 635MOHM TH |
1,461 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 490 mA | 700mA | Unshielded | 635mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
