Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

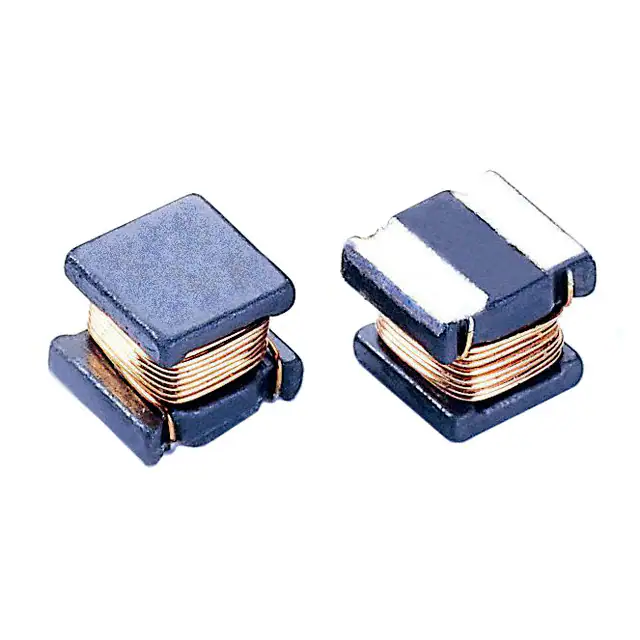

SC2220-330FIXED IND 33UH 960MA 448MOHM SMD |
4,250 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 960 mA | 900mA | Unshielded | 448mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-331FIXED IND 330UH 260MA 6.16OHM SM |
2,510 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 260 mA | 270mA | Unshielded | 6.16Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-3R3FIXED IND 3.3UH 3.1A 50.4MOHM SM |
2,798 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 3.1 A | 2.9A | Unshielded | 50.4mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-471FIXED IND 470UH 230MA 7.56OHM SM |
1,462 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 230 mA | 240mA | Unshielded | 7.56Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-4R7FIXED IND 4.7UH 2.8A 63 MOHM SMD |
1,915 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.8 A | 2.7A | Unshielded | 63mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-680FIXED IND 68UH 680MA 938MOHM SMD |
4,192 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 680 mA | 640mA | Unshielded | 938mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-681FIXED IND 680UH 190MA 11.34 OHM |
2,213 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 190 mA | 190mA | Unshielded | 11.34Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-6R8FIXED IND 6.8UH 2.38A 104MOHM SM |
1,489 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.38 A | 2A | Unshielded | 104mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-R24FIXED IND 240NH 6.6A 14 MOHM SMD |
3,806 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±30% | 6.6 A | 5.3A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-R42FIXED IND 420NH 5.4A 18.2MOHM SM |
1,565 |
|
Datasheet |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 420 nH | ±30% | 5.4 A | 4.8A | Unshielded | 18.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
SCRH124-120FIXED IND 12UH 3.9A 38 MOHM SMD |
3,406 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 3.9 A | 4A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-121FIXED IND 120UH 1.23A 380MOHM SM |
3,337 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.23 A | 1.1A | Shielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-151FIXED IND 150UH 1.16A 530MOHM SM |
1,468 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.16 A | 950mA | Shielded | 530mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-180FIXED IND 18UH 3.1A 57 MOHM SMD |
4,328 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 3.1 A | 3.1A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-181FIXED IND 180UH 1.05A 620MOHM SM |
4,235 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.05 A | 850mA | Shielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-270FIXED IND 27UH 2.7A 80 MOHM SMD |
3,195 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.7 A | 2.8A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-271FIXED IND 270UH 860MA 870MOHM SM |
2,267 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 860 mA | 600mA | Shielded | 870mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-390FIXED IND 39UH 2.07A 132MOHM SMD |
4,754 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.07 A | 2.1A | Shielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-3R9FIXED IND 3.9UH 6A 15 MOHM SMD |
3,968 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±30% | 6 A | 6.5A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SCRH124-560FIXED IND 56UH 1.77A 190MOHM SMD |
4,578 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.77 A | 1.8A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
