Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0612FS-4R7M-TFIXED IND 4.7UH 1.55A 163MOHM SM |
3,409 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.55 A | 1.6A | Shielded | 163mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-6R8M-TFIXED IND 6.8UH 1.35A 215MOHM SM |
1,218 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.35 A | 1.3A | Shielded | 215mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-100M-TFIXED IND 10UH 1.2A 260 MOHM SMD |
2,865 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-220M-TFIXED IND 22UH 650MA 930MOHM SMD |
1,672 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 760mA | Shielded | 930mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-470M-TFIXED IND 47UH 460MA 1.25OHM SMD |
2,764 |
|
Datasheet |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 460 mA | 520mA | Shielded | 1.25Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
SC43-4R7FIXED IND 4.7UH 1.72A 94MOHM SMD |
3,805 |
|
Datasheet |
SC43 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.72 A | 1.7A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|

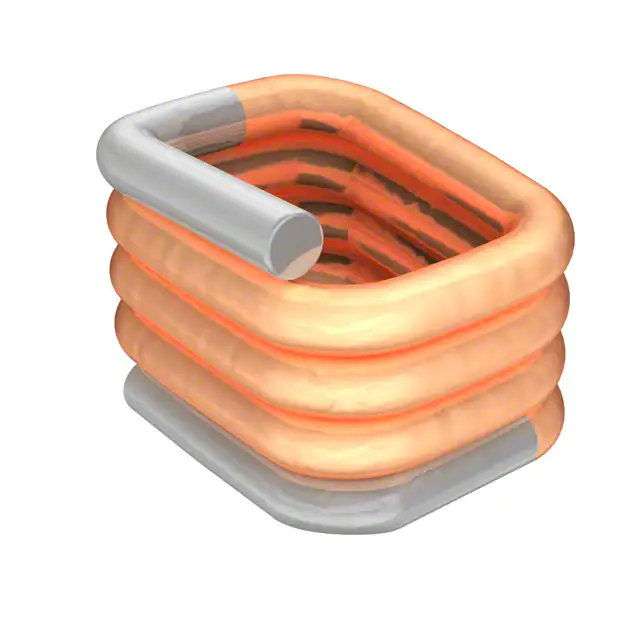

AS0608N9JTRFIXED IND 8.9NH 2.9A 7 MOHM SMD |
1,735 |
|
Datasheet |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8.9 nH | ±5% | 2.9 A | - | Unshielded | 7mOhm Max | 90 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | 0608 (1618 Metric) | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.059" (1.51mm) |
|
|
AS0706N9JTRFIXED IND 6.9NH 2.7A 6 MOHM SMD |
4,258 |
|
Datasheet |
AS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 6.9 nH | ±5% | 2.7 A | - | Unshielded | 6mOhm Max | 100 @ 400MHz | 4.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.072" L x 0.051" W (1.83mm x 1.30mm) | 0.070" (1.78mm) |
|
CDRH3D16NP-470NFIXED IND 47UH SMD |
3,086 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 µH | - | - | - | Shielded | - | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
VLS252008ET-1R0N-CAFIXED IND 1UH 970MA 219 MOHM SMD |
1,659 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 970 mA | 1.2A | Shielded | 219mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
VLS252010ET-R47N-CAFIXED IND 470NH 2.65A 46MOHM SMD |
2,034 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2.65 A | 2.5A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLS252010ET-3R3M-CAFIXED IND 3.3UH 1A 275 MOHM SMD |
4,196 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | 940mA | Shielded | 275mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLS252010ET-4R7M-CAFIXED IND 4.7UH 820MA 398MOHM SM |
1,877 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 820 mA | 800mA | Shielded | 398mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLS252012ET-1R0N-CAFIXED IND 1UH 1.7A 87 MOHM SMD |
3,800 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.7 A | 2.2A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLS252012ET-6R8M-CAFIXED IND 6.8UH 650MA 612MOHM SM |
4,367 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 650 mA | 850mA | Shielded | 612mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS252015ET-1R5N-CAFIXED IND 1.5UH 1.45A 120MOHM SM |
1,437 |
|
Datasheet |
VLS-E-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.45 A | 1.75A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
VLS3012ET-1R5N-CAFIXED IND 1.5UH 1.85A 76MOHM SMD |
1,086 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.85 A | 1.5A | Shielded | 76mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012ET-3R3M-CAFIXED IND 3.3UH 1.55A 120MOHM SM |
4,118 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.55 A | 1.05A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012ET-330M-CAFIXED IND 33UH 480MA 1.248OHM SM |
4,332 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 480 mA | 370mA | Shielded | 1.248Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
48150SCFIXED IND 15UH 3.7A 40 MOHM SMD |
4,307 |
|
Datasheet |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.7 A | - | Shielded | 40mOhm Max | 31 @ 1MHz | 17MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.236" (6.00mm) |
