Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1A1-383815-120MFIXED IND 12.0UH 800MA 350 MOHM |
3,224 |
|
Datasheet |
F1A1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 800 mA | 450mA | Shielded | 350Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A1-464612-330MFIXED IND 33.0UH 450MA 1300 MOHM |
2,329 |
|
Datasheet |
F1A1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 450 mA | 320mA | Shielded | 1.3kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1A1-464612-2R2NFIXED IND 2.2UH 1.5A 106 MOHM |
4,974 |
|
Datasheet |
F1A1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 2.2 µH | ±30% | 1.5 A | 1.2A | Shielded | 106Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|

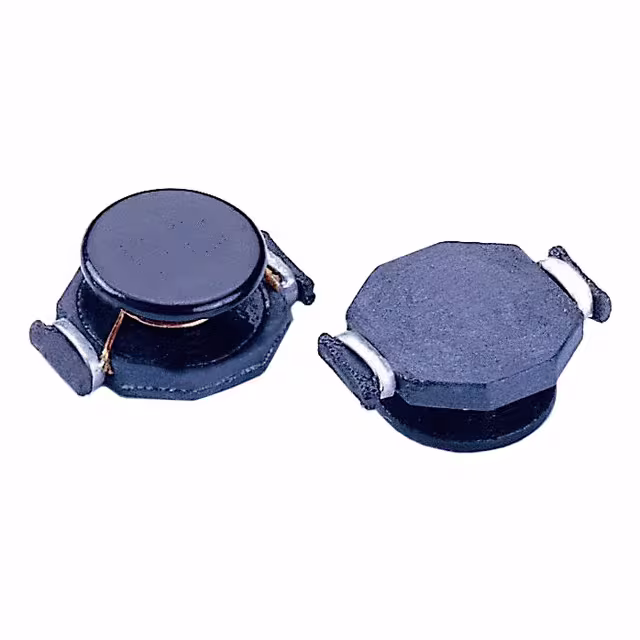

SC3316FH-1R0FIXED IND 1UH 10.5A 6 MOHM SMD |
4,885 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 10.5 A | 11A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-1R5FIXED IND 1.5UH 8.5A 8 MOHM SMD |
4,501 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 8.5 A | 9A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-2R2FIXED IND 2.2UH 7.4A 11 MOHM SMD |
2,853 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±30% | 7.4 A | 7.8A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-2R7FIXED IND 2.7UH 6.4A 12 MOHM SMD |
3,761 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±30% | 6.4 A | 7A | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-3R3FIXED IND 3.3UH 6.4A 14 MOHM SMD |
1,245 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 6.4 A | 6.4A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-4R7FIXED IND 4.7UH 5.4A 18 MOHM SMD |
1,943 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.4 A | 5.4A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-6R8FIXED IND 6.8UH 4.5A 22 MOHM SMD |
4,983 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 4.5 A | 5A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-R27FIXED IND 270NH 17.8A 2 MOHM SMD |
2,085 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±30% | 17.8 A | 20A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
SC3316FH-R56FIXED IND 560NH 11.5A 5 MOHM SMD |
2,477 |
|
Datasheet |
SC3316FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±30% | 11.5 A | 13A | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.394" W (13.00mm x 10.00mm) | 0.250" (6.35mm) |
|
|
AMPLH7025S-1R5M-TFIXED IND 1.5UH 11A 10.1MOHM SMD |
1,130 |
|
Datasheet |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 13 A | 15A | Shielded | 10.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-8R2M-TFIXED IND 8.2UH 5A 53MOHM SMD |
1,221 |
|
Datasheet |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 8.2 µH | ±20% | 5.5 A | 6A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-R20M-TFIXED IND 0.2UH 21A 1.9MOHM SMD |
1,713 |
|
Datasheet |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 200 nH | ±20% | 25 A | 41A | Shielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-5R6M-TFIXED IND 5.6UH 5.5A 40.2MOHM SM |
3,905 |
|
Datasheet |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 6.5 A | 7.5A | Shielded | 40.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
PM124SH-101M-RCFIXED IND 100UH 1.25A 300MOHM SM |
1,385 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.25 A | 1.2A | Shielded | 300mOhm Max | 14 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
PM124SH-121M-RCFIXED IND 120UH 1.2A 370MOHM SMD |
2,209 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.2 A | 1.15A | Shielded | 370mOhm Max | 12 @ 796kHz | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
PM124SH-151M-RCFIXED IND 150UH 1.1A 440MOHM SMD |
1,893 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.1 A | 1.05A | Shielded | 440mOhm Max | 12 @ 796kHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
PM124SH-180M-RCFIXED IND 18UH 3.2A 55 MOHM SMD |
1,840 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.2 A | 3A | Shielded | 55mOhm Max | 14 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
