Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQW2UASR12F0CLFIXED IND 120NH 650MA 630MOHM SM |
4,822 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±1% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR15F0CLFIXED IND 150NH 580MA 700MOHM SM |
4,210 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 150 nH | ±1% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR91F0CLFIXED IND 910NH 380MA 1.68OHM SM |
1,584 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 910 nH | ±1% | 380 mA | - | Unshielded | 1.68Ohm Max | 35 @ 50MHz | 320MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
MPL-SE2512-R47FIXED IND 470NH 4.5A 27 MOHM SMD |
2,289 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 470 nH | - | 4.5 A | 6.5A | Shielded | 20mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MPL-SE2512-4R7FIXED IND 4.7UH 1.6A 205MOHM SMD |
1,696 |
|
Datasheet |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 4.7 µH | - | 1.6 A | 1.9A | Shielded | 165mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLXBH8080YKL101MFIXED IND 100UH 1A 377 MOHM SMD |
4,612 |
|
Datasheet |
LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 377mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
LLXBH8080YKL100MFIXED IND 10UH 3.1A 44.2MOHM SMD |
4,974 |
|
Datasheet |
LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.4A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

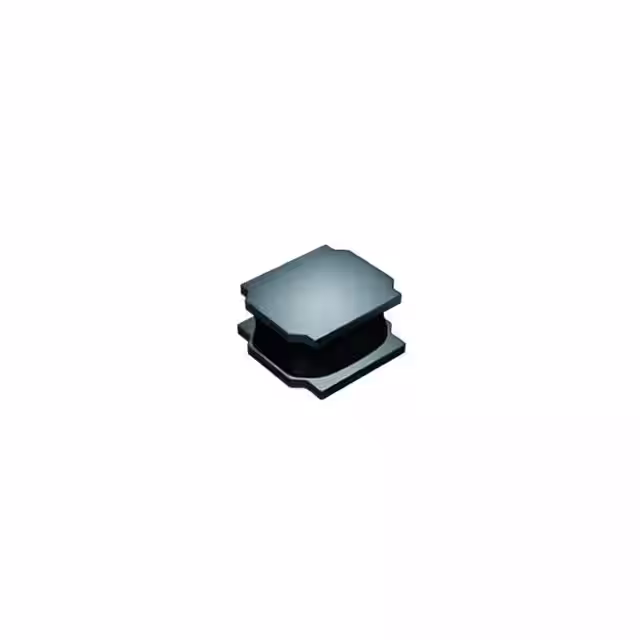

LSXBH8080YBL1R4NFIXED IND 1.4UH 7A 9.1 MOHM SMD |
2,035 |
|
- |
LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 9A | Shielded | 7mOhm | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
BMMN00101030220MX2INDUCTOR POWER |
2,252 |
|
Datasheet |
BMMN | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 3 A | 5A | Shielded | 99mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.118" (3.00mm) |
|
|
FDSD0420W-H-150M=P3FIXED IND |
4,156 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDSD0420W-H-220M=P3FIXED IND |
1,026 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LPCS4747MT102-HP20%, T&R, 102 Inductance (uH), |
3,663 |
|
- |
LPCS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 760 mA | - | Shielded | 1.27Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
#A921CY-680M=P3FIXED IND 68UH 730MA 324MOHM SMD |
2,238 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 68 µH | ±20% | 730 mA | 440mA | Shielded | 324mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
#A921CY-2R2M=P3FIXED IND 2.2UH 3.3A 16 MOHM SMD |
3,202 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 2.2 µH | ±20% | 3.3 A | 2.42A | Shielded | 16mOhm | - | - | - | - | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-101M=P3FIXED IND 100UH 540MA 498MOHM SM |
4,297 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 100 µH | ±20% | 540 mA | 360mA | Shielded | 498mOhm Max | - | - | - | - | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-4R7M=P3FIXED IND 4.7UH 2.45A 27MOHM SMD |
2,880 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 4.7 µH | ±20% | 2.45 A | 1.66A | Shielded | 27mOhm | - | - | - | - | - | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-3R6M=P3IND POWER SHIELDED WIREWOUND 3.6 |
4,509 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 3.01 A | 1.89A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-150M=P3IND POWER SHIELDED WIREWOUND 15U |
4,904 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.73 A | 930mA | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-560M=P3EMC |
1,995 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 56 µH | ±20% | 820 mA | 480mA | Shielded | 264mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
#A921CY-470M=P3EMC |
2,262 |
|
Datasheet |
D63LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 890 mA | 530mA | Shielded | 225mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
