Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH64BNP-680MC-BINDUCTOR |
4,286 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 520 mA | - | Unshielded | 630mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-221MC-BINDUCTOR |
3,611 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 290 mA | - | Unshielded | 2.08Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-121MC-BINDUCTOR |
4,199 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 390 mA | - | Unshielded | 1.15Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-100MC-BINDUCTOR |
1,161 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.35 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-391MC-BINDUCTOR |
4,208 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 220 mA | - | Unshielded | 2.94Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-821MC-BINDUCTOR |
4,557 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 150 mA | - | Unshielded | 8.24Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-561MC-BINDUCTOR |
1,162 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 180 mA | - | Unshielded | 5.43Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-681MC-BINDUCTOR |
3,140 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 170 mA | - | Unshielded | 7.32Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-102MC-BINDUCTOR |
3,213 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 140 mA | - | Unshielded | 9.26Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
IHLP1616BZET3R3M11FIXED IND |
1,645 |
|
Datasheet |
IHLP-1616BZ-11 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 3.3 µH | ±20% | 2.7 A | 2.2A | Shielded | 94.3mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SDR1105-180MLFIXED IND 18UH 3.3A 70 MOHM SMD |
1,587 |
|
Datasheet |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.3 A | 7A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1105-560KLFIXED IND 56UH 2A 200 MOHM SMD |
2,003 |
|
Datasheet |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2 A | 3.5A | Unshielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|

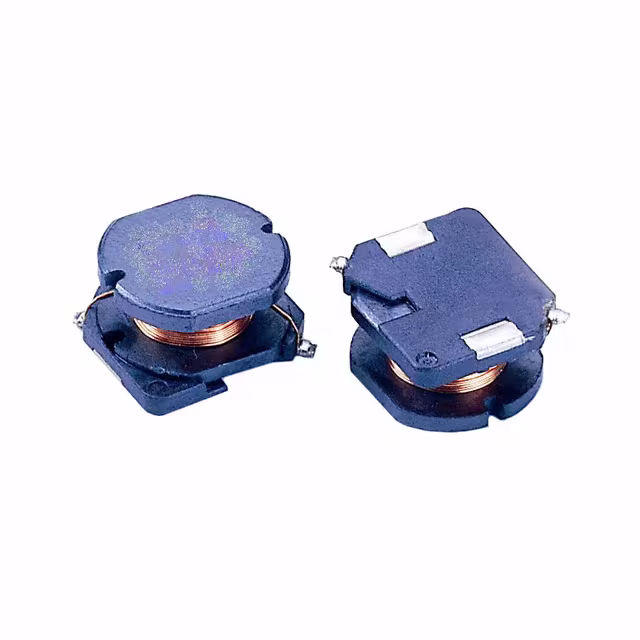

SC105B-101FIXED IND 100UH 1.2A 370MOHM SMD |
4,252 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.2 A | 970mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-120FIXED IND 12UH 3.2A 70 MOHM SMD |
2,252 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 3.2 A | 2.45A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-150FIXED IND 15UH 2.9A 80 MOHM SMD |
1,504 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.9 A | 2.27A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-180FIXED IND 18UH 2.6A 90 MOHM SMD |
3,763 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±20% | 2.6 A | 2.15A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-181FIXED IND 180UH 860MA 630MOHM SM |
1,307 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±20% | 860 mA | 720mA | Unshielded | 630mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-220FIXED IND 22UH 2.4A 100 MOHM SMD |
2,245 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.4 A | 1.95A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-221FIXED IND 220UH 820MA 730MOHM SM |
2,304 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 820 mA | 660mA | Unshielded | 730mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-270FIXED IND 27UH 2.1A 136 MOHM SMD |
3,788 |
|
Datasheet |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 2.1 A | 1.76A | Unshielded | 136mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
