Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

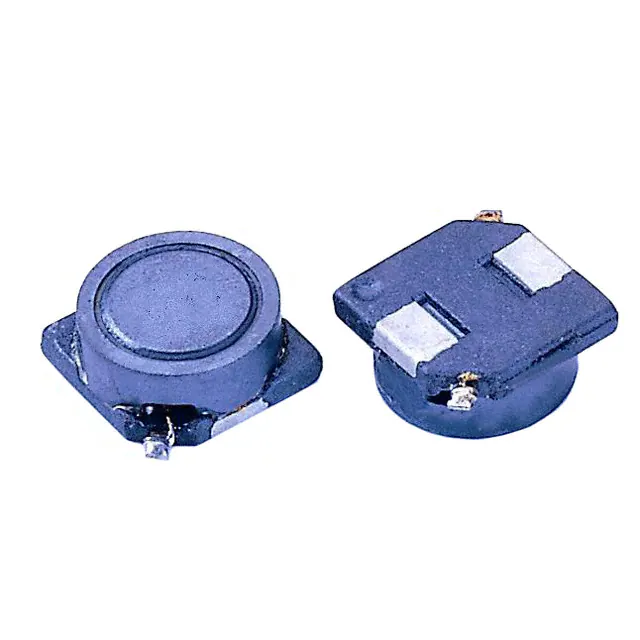

SCB63C-6R8FIXED IND 6.8UH 2.4A 75 MOHM SMD |
2,847 |
|
Datasheet |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±30% | 2.4 A | 900mA | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SCB63C-820FIXED IND 82UH 700MA 572MOHM SMD |
4,535 |
|
Datasheet |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±20% | 700 mA | 250mA | Shielded | 572mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.118" (3.00mm) |
|
PA2983.230HLTFIXED IND 23NH 30A 0.33 MOHM SMD |
1,134 |
|
Datasheet |
PA2983.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 23 nH | ±15% | 30 A | 52A | Shielded | 0.33mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.197" W (4.00mm x 5.00mm) | 0.157" (4.00mm) |
|
PM5402.103NLTFIXED IND 10UH 1.8A 243MOHM SMD |
3,067 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 243mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.152NLTFIXED IND 1.5UH 4.5A 42MOHM SMD |
2,935 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 4.5 A | 7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.562NLTFIXED IND 5.6UH 2.2A 125MOHM SMD |
4,472 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 2.2 A | 3A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.472NLTFIXED IND 4.7UH 2.6A 105MOHM SMD |
4,556 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.6 A | 3.5A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.181NLTFIXED IND 180NH 13.5A 5.4MOHM SM |
4,365 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 180 nH | ±20% | 13.5 A | 28A | Shielded | 5.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.122NLTFIXED IND 1.2UH 4.8A 30MOHM SMD |
3,157 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 4.8 A | 7.8A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.561NLTFIXED IND 560NH 7.3A 16MOHM SMD |
1,692 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 7.3 A | 10A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.102NLTFIXED IND 1UH 5A 27 MOHM SMD |
1,986 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.223NLTFIXED IND 22UH 1.2A 500MOHM SMD |
3,858 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 500mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.221NLTFIXED IND 220NH 13A 7.3MOHM SMD |
4,333 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 13 A | 24A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.682NLTFIXED IND 6.8UH 2.1A 172MOHM SMD |
1,090 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.822NLTFIXED IND 8.2UH 2A 180 MOHM SMD |
3,451 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 2 A | 2.5A | Shielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PA4345.471ANLTIND MOLDED POWDER 6.0X5.4X3.0 MA |
4,986 |
|
Datasheet |
PA4345.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 11 A | 8A | Shielded | 7.2mOhm Max | - | 76MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PA4341.333NLTIND MOLDED 7X7X3 SMT |
1,579 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 2 A | 2.5A | Shielded | 240mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4345.151ANLTIND MOLDED POWDER 6.0X5.4X3.0 MA |
3,935 |
|
Datasheet |
PA4345.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±30% | 19 A | 24A | Shielded | 3.2mOhm Max | - | 183MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PA4345.332NLTIND MOLDED POWDER 6.0X5.4X3.0 MA |
1,942 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.3 A | 7.3A | Shielded | 76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
|
PA4345.103ANLTIND MOLDED POWDER 6.0X5.4X3.0 MA |
4,902 |
|
Datasheet |
PA4345.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.4 A | 3A | Shielded | 180mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
