Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-VFG6R8NCFIXED IND 6.8UH 840MA 230MOHM SM |
3,063 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 840 mA | 600mA | Shielded | 230mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

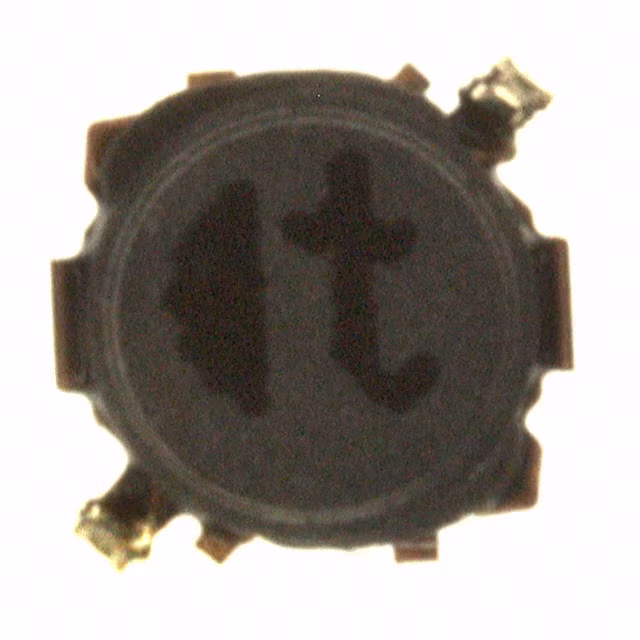

ELL-VFG330MCFIXED IND 33UH 330MA 1.16OHM SMD |
1,440 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 330 mA | 280mA | Shielded | 1.16Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
MLG1608SR27JT000FIXED IND 270NH 200MA 2 OHM SMD |
1,014 |
|
Datasheet |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 270 nH | ±5% | 200 mA | - | Unshielded | 2Ohm Max | 14 @ 100MHz | 350MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AISC-0603F-3R3J-TFIXED IND 3.3UH 200MA 1.8OHM SMD |
3,750 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 200 mA | - | Unshielded | 1.8Ohm Max | - | 60MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-8R2J-TFIXED IND 8.2UH 110MA 4.5OHM SMD |
2,707 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 110 mA | - | Unshielded | 4.5Ohm Max | - | 40MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
AISC-0603F-180J-TFIXED IND 18UH 80MA 10.4 OHM SMD |
1,286 |
|
Datasheet |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 80 mA | - | Unshielded | 10.4Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
TYS3012100M-10FIXED IND 10UH 830MA 265MOHM SMD |
1,310 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 830 mA | 600mA | Shielded | 344.5mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS3012150M-10FIXED IND 15UH 710MA 460MOHM SMD |
1,690 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 710 mA | 450mA | Shielded | 598mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS30121R0N-10FIXED IND 1UH 2.2A 40 MOHM SMD |
3,523 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 1.87A | Shielded | 52mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS3012220M-10FIXED IND 22UH 530MA 645MOHM SMD |
3,545 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 530 mA | 420mA | Shielded | 838.5mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS30122R2N-10FIXED IND 2.2UH 1.55A 75MOHM SMD |
2,156 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.55 A | 1.2A | Shielded | 97.5mOhm Max | - | 84MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS3012330M-10FIXED IND 33UH 460MA 875MOHM SMD |
3,145 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 460 mA | 360mA | Shielded | 1.138Ohm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS3012470M-10FIXED IND 47UH 350MA 1.45OHM SMD |
4,259 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 270mA | Shielded | 1.885Ohm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS30124R7M-10FIXED IND 4.7UH 1.24A 120MOHM SM |
2,860 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.24 A | 900mA | Shielded | 156mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
|
TYS3012680M-10FIXED IND 68UH 330MA 1.67OHM SMD |
4,522 |
|
Datasheet |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 330 mA | 240mA | Shielded | 2.171Ohm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
TYS3015150M-10FIXED IND 15UH 650MA 380MOHM SMD |
1,030 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 660mA | Shielded | 380mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
TYS3015330M-10FIXED IND 33UH 430MA 820MOHM SMD |
2,586 |
|
Datasheet |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 430 mA | 440mA | Shielded | 820mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
MLK1005S4N7STD25FIXED IND 4.7NH 400MA 280MOHM SM |
4,840 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 4.7 nH | ±0.3nH | 400 mA | - | Unshielded | 280mOhm Max | 7 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S22NJTD25T000FIXED IND 22NH 200MA 700MOHM SMD |
3,443 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 22 nH | ±5% | 200 mA | - | Unshielded | 700mOhm Max | 7 @ 100MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
.jpg)
|
AIML-1206HC-1R0M-TFIXED IND 1UH 1.6A 100 MOHM SMD |
1,693 |
|
Datasheet |
AIML-1206HC | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.6 A | 300mA | Shielded | 100mOhm | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
